Intermatic

LC4535LA

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_LC4535LA

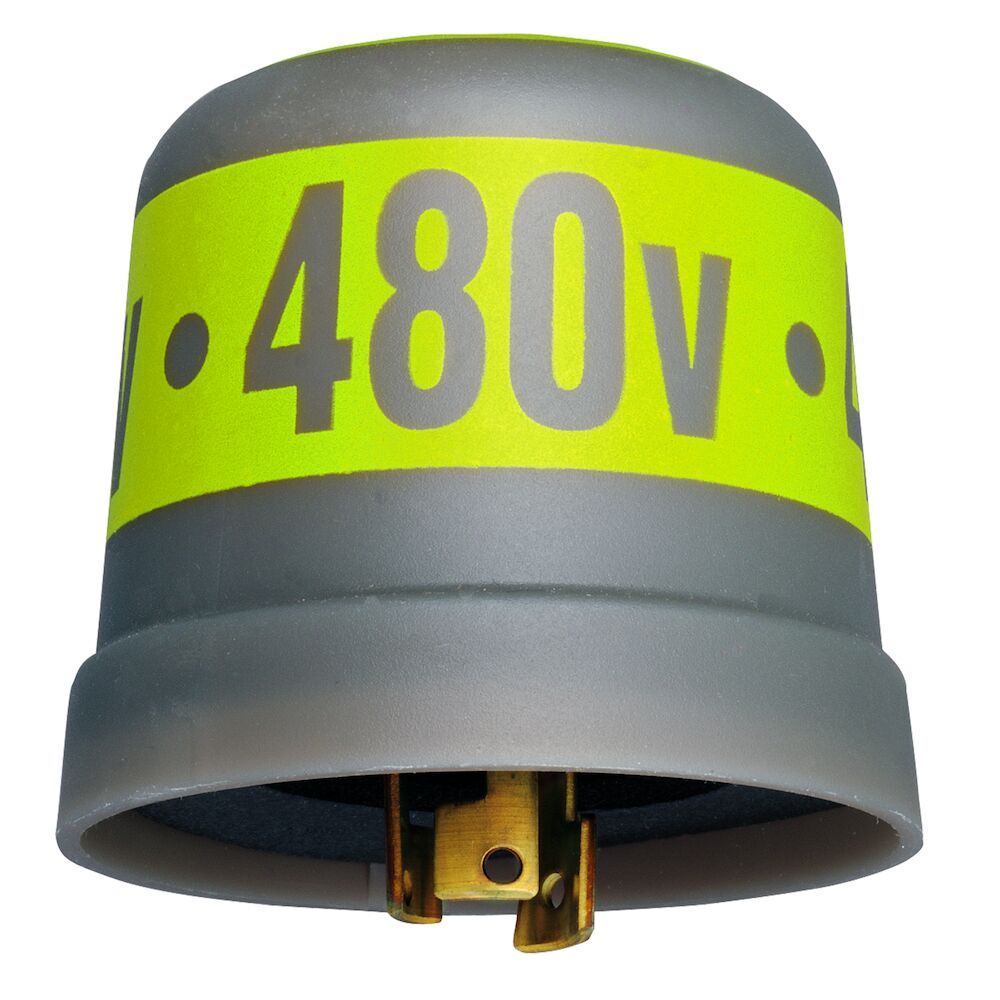

These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.

$27.22

Min: 1  Mult: 1

Product Attributes

Activation Off

15 fc

Magnetic Ballast Load Ratings

8.3 A, 4000 VA

Magnetic Ballast Load Ratings Ranges

8.3 A, 4000 VA

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

Title 20;Ansi C136.10

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Side

Photocontrol Style

Locking type

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Product Diameter In

3

Sensor Time Delay

30 sec to 90 sec

Surge Protection Technology

Spark Gap Surge Arrestor

UL Certification

UL

UPC

078275002685

Usage Environments

Outdoor

WarrantyPeriod

2-Year limited

Input Voltage Ranges

480 VAC, 50/60 Hz

Housing Material

Polypropylene

Expected Lifetime Years

5

Expected Lifetime Operations

3650

DataSheet

Click Here

CSA Certification

cCSAus

Cover Color

Gray with Yellow Band

Brand

Intermatic

Application Compatibilities

HID;Incandescent

Activation On

5 fc

Fail Mode

ON

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

GTIN

00078275002685

Feature6

Tested to 3,650 ON/OFF cycles

Feature5

Complies with ANSI C136.10 standard

Feature4

Delay feature prevents unwanted OFF switching

Feature3

Locking type plug for quick installation and changeover

Feature2

Integral high impact thermoplastic housing

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
