Intermatic

KPT0170-015

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

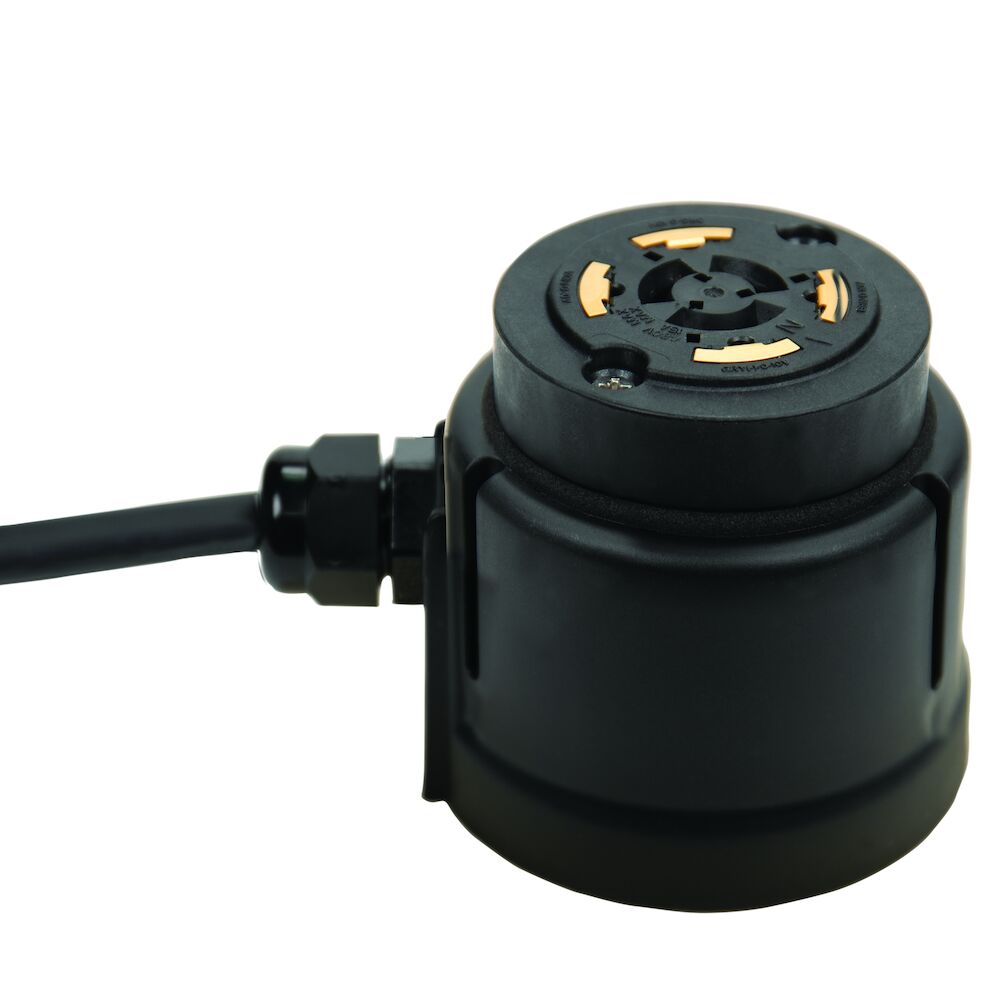

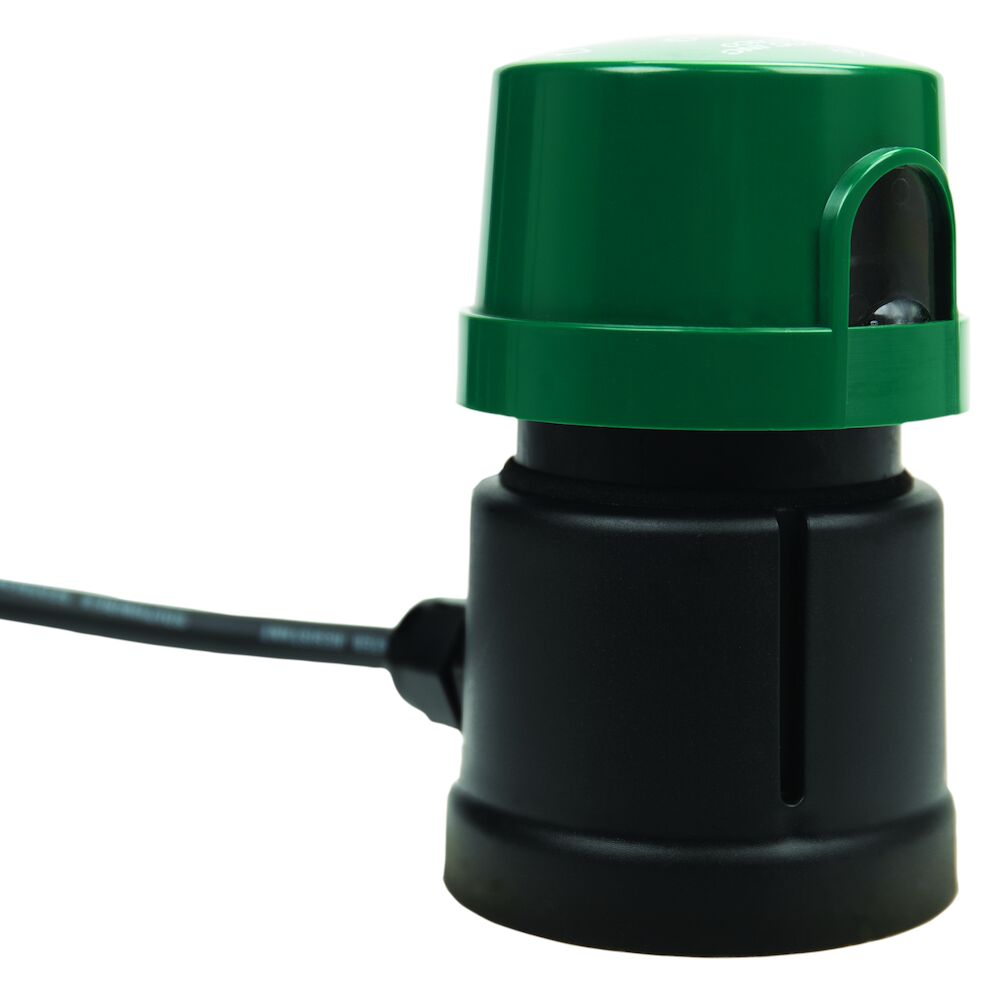

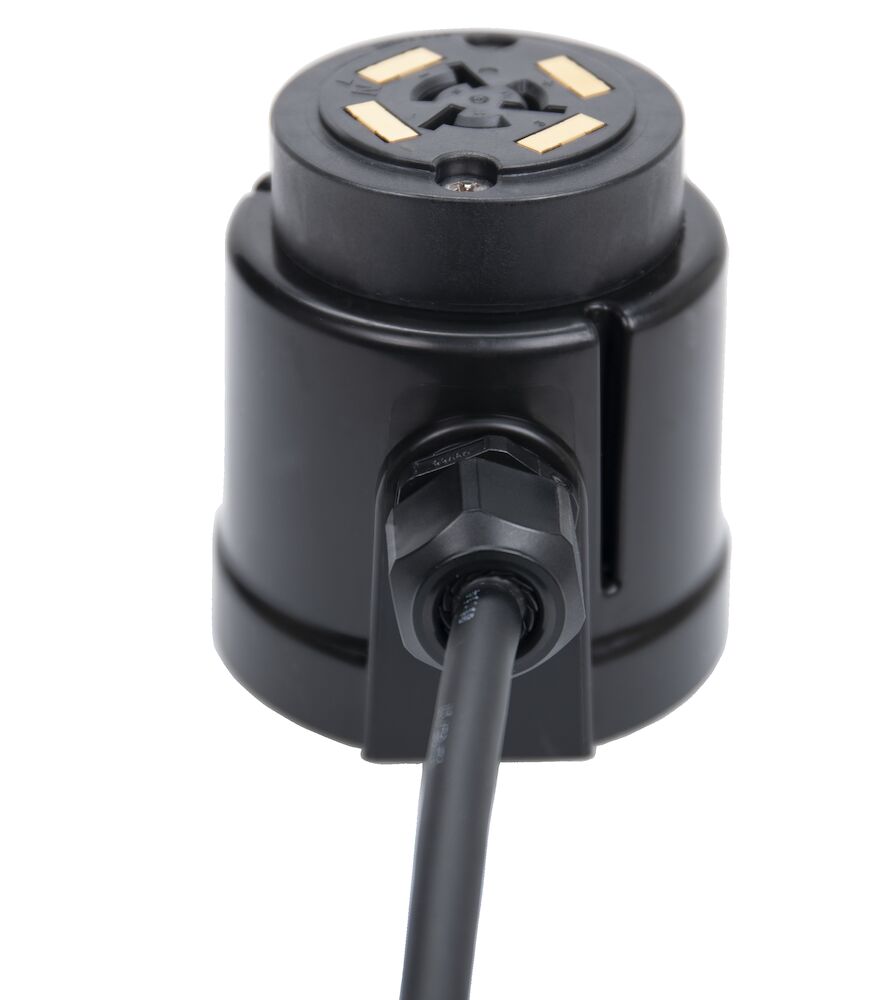

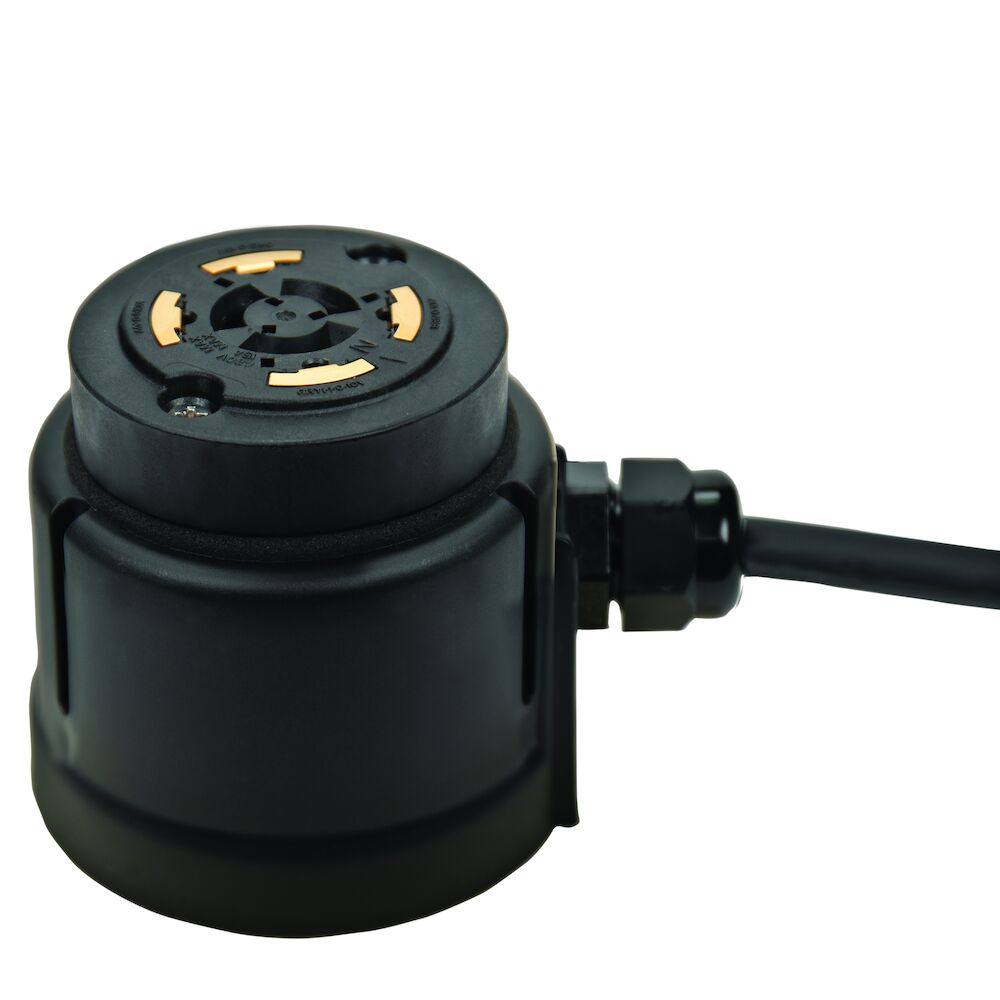

The KPT0170-010 PowerTap allows light pole mounted ancillary devices to have quick access to electrical power. It taps into the power feed of a streetlight by connecting between the photocontrol and locking type receptacle. It does not disturb the operation of the light control unit, and it supports the 7-pin ANSI C136.41 style receptacle and controls.

$106.73

Min: 1  Mult: 1

Product Attributes

Brand

Intermatic

UPC

078275151215

Product Diameter In

3.42

Other Certifications

Ansi C136.10;Ansi C136.41

Operating Temperature Min F

-40

Operating Temperature Max F

158

WarrantyPeriod

2-Year limited

GTIN

00078275151215

Feature4

Does not disturb the operation of lighting control units

Feature3

Branch circuit protected by an auto-resetting 10 A, OCPD

Feature1

7-pin ANSI C 136.41 connector interface: 3-prong power sockets + 4 signal contacts

Feature2

Taps into electric supply line of photocontrol with a #16 AWG cable out, providing ALWAYS ON power feed

MFG-Link

Click Here

Photo-4

Click Here

Photo-3

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
