Intermatic

K4253

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_K4253

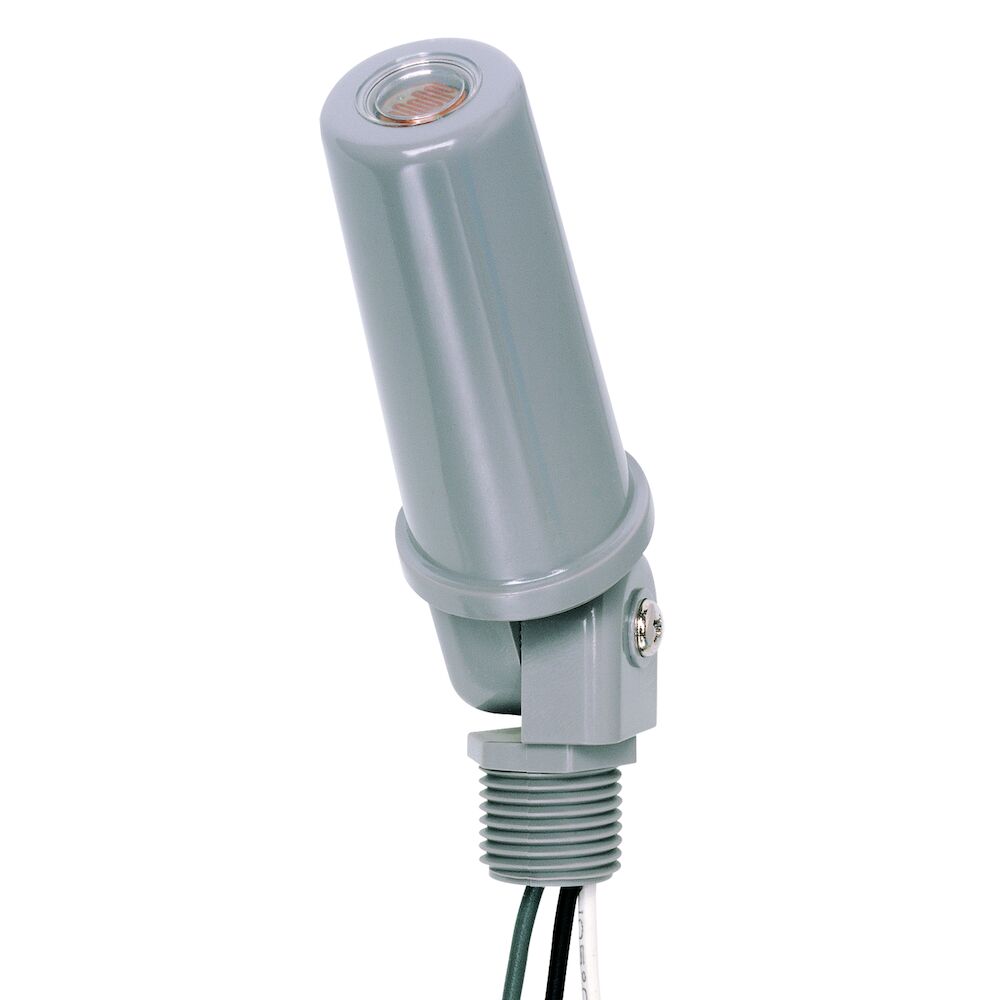

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

$20.88

Min: 1  Mult: 1

Product Attributes

Activation Off

3 to 15 fc

Magnetic Ballast Load Ratings Ranges

8.3 A, 1700-2300 VA

MFG-Link

Click Here

Operating Temperature Max F

140

Operating Temperature Min F

-40

Other Certifications

Title 20

Photo-1

Click Here

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Top

Photocontrol Style

Stem and Swivel Mount

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Sensor Time Delay

30 sec to 90 sec

UPC

078275067769

Usage Environments

Outdoor

WarrantyPeriod

1-Year limited

Wire Lead Length In

6

Wire Size Max

#18 AWG

Magnetic Ballast Load Ratings

8.3 A, 1700-2300 VA

Wiring Option

Wire leads

Input Voltage Ranges

208-277 VAC, 50/60 Hz

Activation On

1 to 5 fc

Application Compatibilities

HID;Fluorescent;Incandescent

Brand

Intermatic

Cover Color

Gray

CSA Certification

CSA

Datasheet

Click Here

Expected Lifetime Operations

3650

Expected Lifetime Years

5

Fail Mode

ON

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

Feature2

Delay feature prevents unwanted OFF switching

Feature3

High strength, UV resistant plastic housing

Feature4

Swivel with 1⁄2"-14 NPSM threaded stem

Feature5

Washer gasket and locking nut included

Feature6

#18 AWG, 6" wire leads

GTIN

00078275067769

Housing Material

Polycarbonate

LifeCycle

Production
