Intermatic

K4251

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_K4251

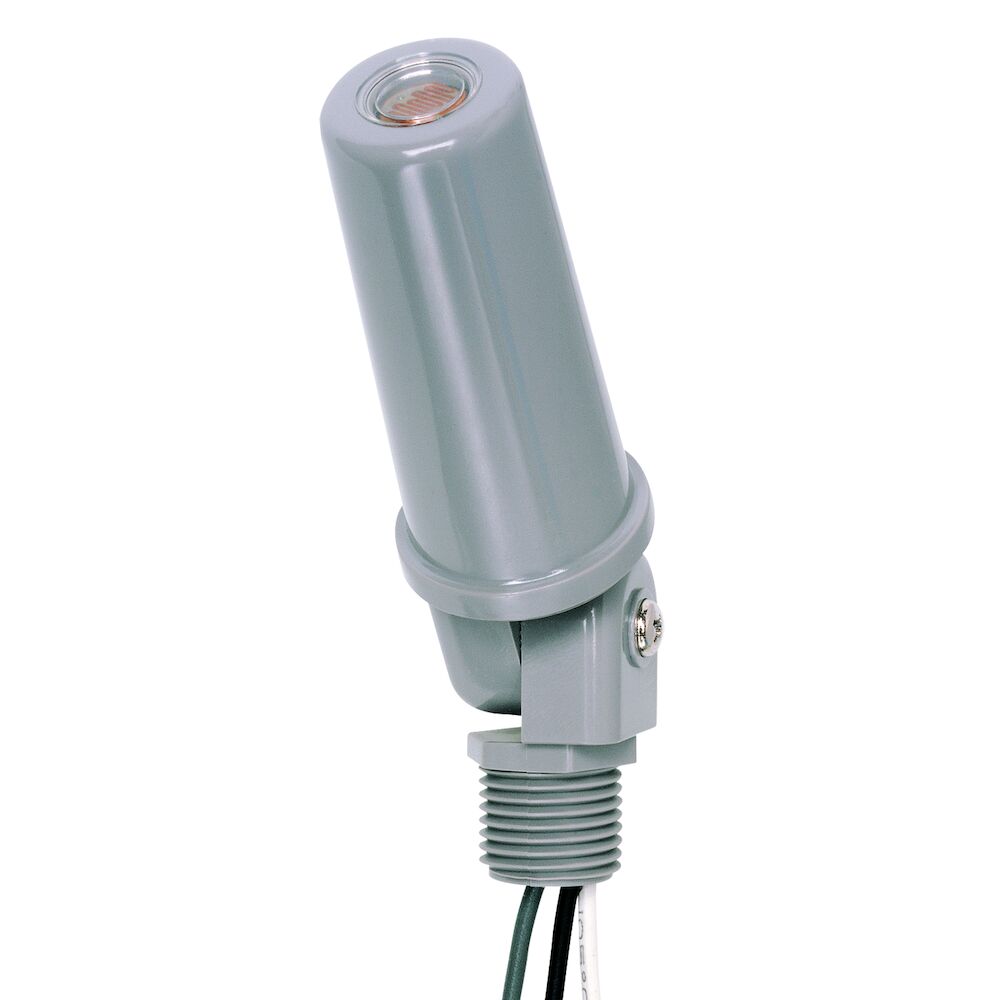

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

$16.63

Min: 1  Mult: 1

Product Attributes

Activation Off

3 to 15 fc

Magnetic Ballast Load Ratings

8.3 A, 1000 VA

Magnetic Ballast Load Ratings Ranges

8.3 A, 1000 VA

Operating Temperature Max F

140

Operating Temperature Min F

-40

Other Certifications

Title 20

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Top

Photocontrol Style

Stem and Swivel Mount

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Sensor Time Delay

30 sec to 90 sec

UPC

078275067752

Usage Environments

Outdoor

WarrantyPeriod

1-Year limited

Wire Lead Length In

6

Wire Size Max

#18 AWG

Wiring Option

Wire leads

Input Voltage Ranges

120 VAC, 50/60 Hz

Housing Material

Polycarbonate

Expected Lifetime Years

5

Expected Lifetime Operations

3650

DataSheet

Click Here

CSA Certification

CSA

Cover Color

Gray

Brand

Intermatic

Application Compatibilities

HID;Fluorescent;Incandescent

Activation On

1 to 5 fc

Fail Mode

ON

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

GTIN

00078275067752

Feature6

#18 AWG, 6" wire leads

Feature5

Washer gasket and locking nut included

Feature4

Swivel with 1⁄2"-14 NPSM threaded stem

Feature3

High strength, UV resistant plastic housing

Feature2

Delay feature prevents unwanted OFF switching

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
