Intermatic

K4223C

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_K4223C

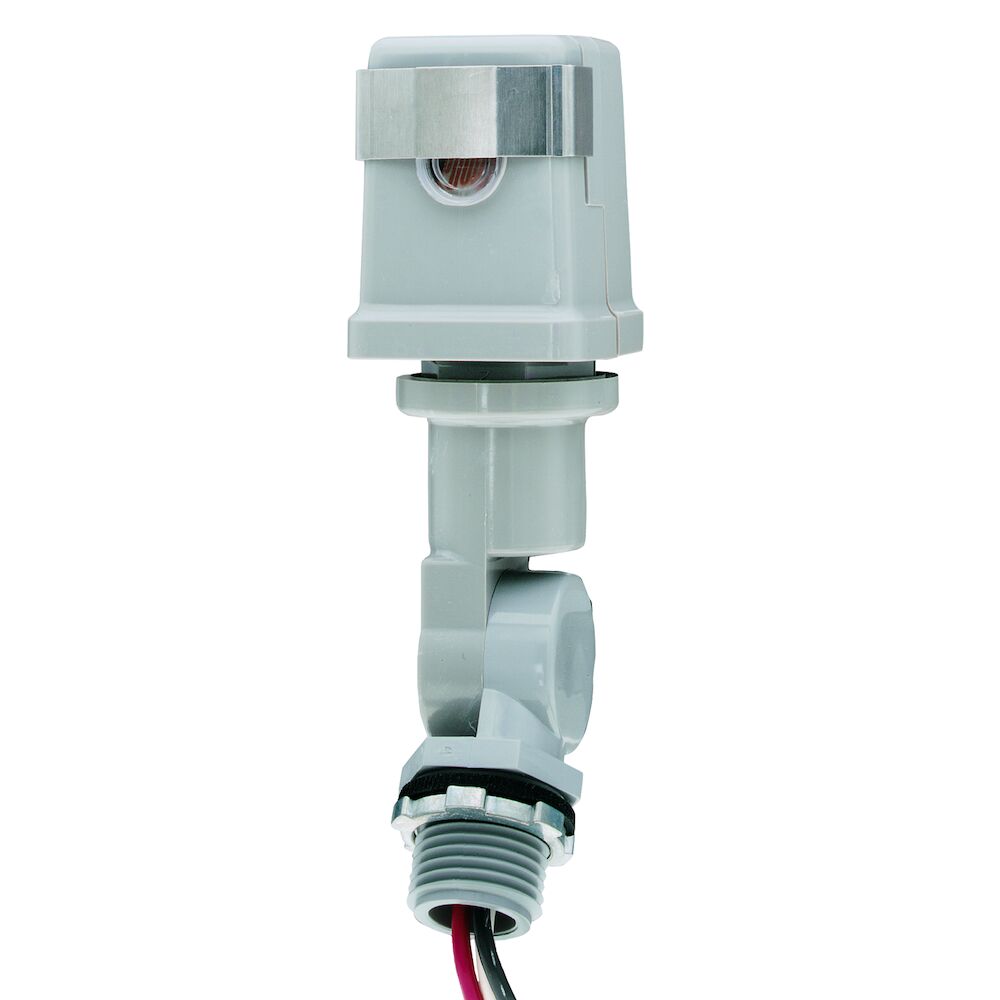

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

$29.64

Min: 1  Mult: 1

Product Attributes

Activation Off

3 to 15 fc

Magnetic Ballast Load Ratings Ranges

8.3 A, 1700-2300 VA

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

Title 20

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Side

Photocontrol Style

Stem and Swivel Mount

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Sensor Time Delay

30 sec to 90 sec

UL Certification

UL

UPC

078275056954

Usage Environments

Outdoor

WarrantyPeriod

2-Year limited

Wire Lead Length In

6

Wire Size Max

#18 AWG

Magnetic Ballast Load Ratings

8.3 A, 1700-2300 VA

Input Voltage Ranges

208-277 VAC, 50/60 Hz

Wiring Option

Wire leads

Expected Lifetime Years

5

Expected Lifetime Operations

3650

DataSheet

Click Here

CSA Certification

cCSAus

Cover Color

Gray

Brand

Intermatic

Application Compatibilities

HID;Fluorescent;Incandescent

Activation On

1 to 5 fc

Fail Mode

ON

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

Feature2

Delay feature prevents unwanted OFF switching

Housing Material

Polycarbonate

GTIN

00078275056954

Feature6

#18 AWG, 6" wire leads

Feature5

Washer gasket and locking nut included

Feature4

Swivel with 1⁄2"-14 NPSM threaded stem

Feature3

High strength, UV resistant plastic housing

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
