Intermatic

K4121C

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_K4121C

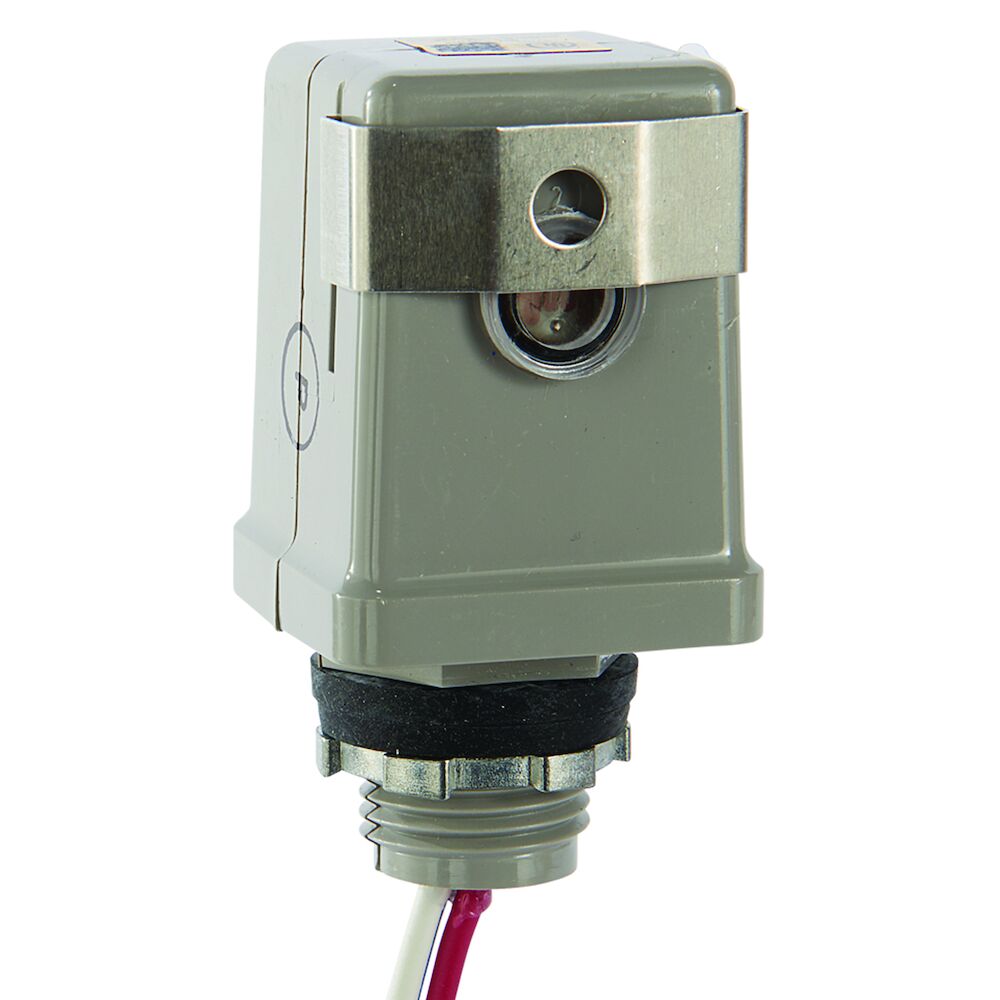

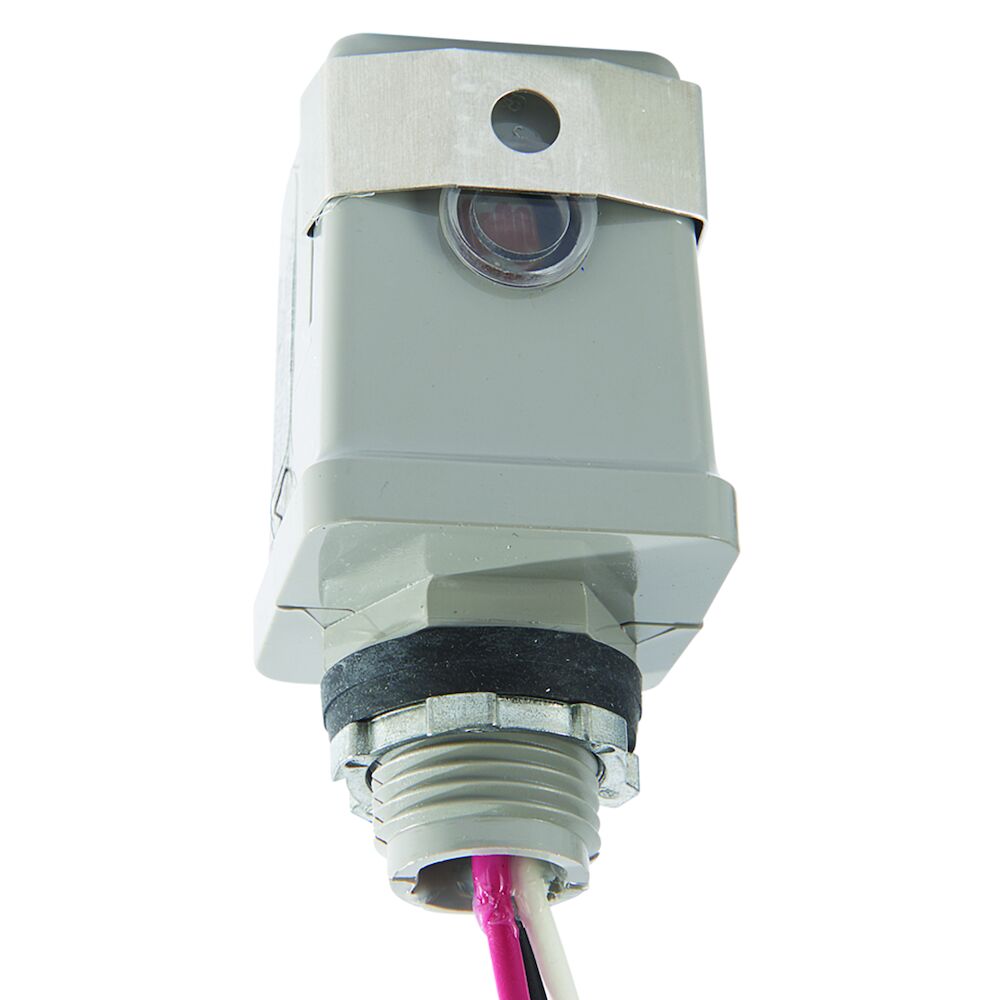

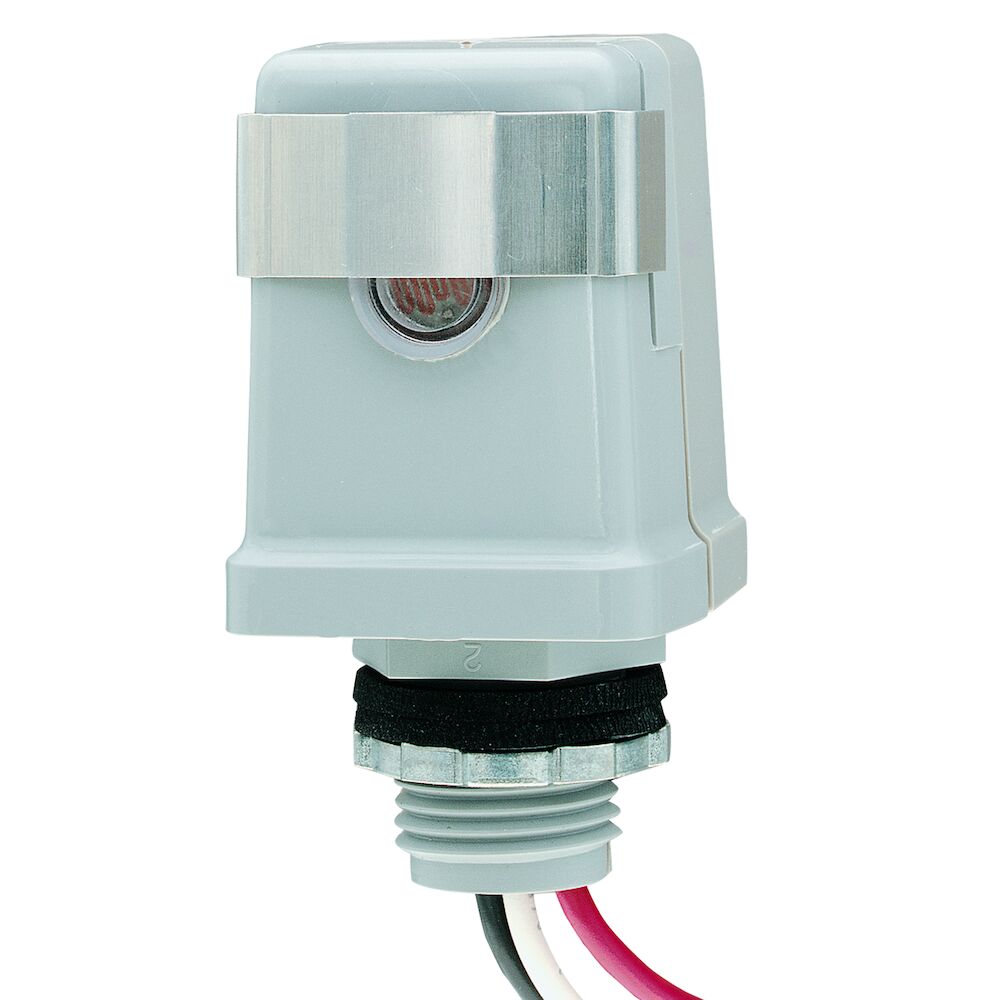

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1?2"-14 NPSM thread or 7?8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

$12.98

Min: 1  Mult: 1

Product Attributes

Wiring Option

Wire leads

Magnetic Ballast Load Ratings Ranges

8.3 A, 1000 VA

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

Title 20

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Side

Photocontrol Style

Stem Mount

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Sensor Time Delay

30 sec to 90 sec

UL Certification

UL

UPC

078275002012

Usage Environments

Outdoor

WarrantyPeriod

2-Year limited

Wire Lead Length In

9

Wire Size Max

#18 AWG

Magnetic Ballast Load Ratings

8.3 A, 1000 VA

Input Voltage Ranges

120 VAC, 50/60 Hz

Activation Off

3 to 15 fc

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

Fail Mode

ON

Expected Lifetime Years

5

Expected Lifetime Operations

3650

DataSheet

Click Here

CSA Certification

cCSAus

Cover Color

Gray

Brand

Intermatic

Application Compatibilities

HID;Fluorescent;Incandescent

Activation On

1 to 5 fc

Feature2

Delay feature prevents unwanted OFF switching

Feature3

Gray plastic housing

Housing Material

Polycarbonate

GTIN

00078275002012

Feature6

#18 AWG, 9" wire leads

Feature5

Washer gasket and locking nut included

Feature4

1⁄2"-14 NPSM threaded stem

MFG-Link

Click Here

Photo-1

Click Here

Photo-2

Click Here

Photo-3

Click Here

Photo-4

Click Here

LifeCycle

Production

Not available at this time.
