Intermatic

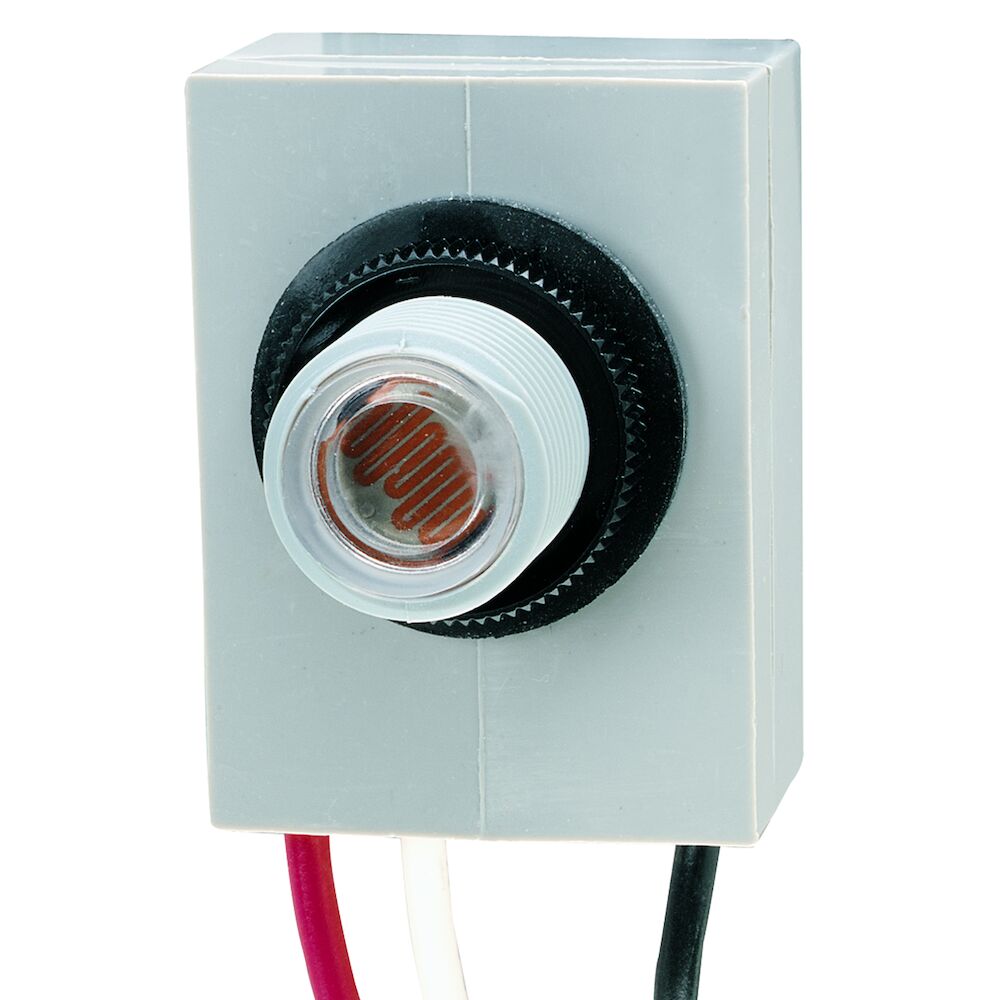

K4023C

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_K4023C
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

$20.15

Min: 1  Mult: 1

Product Attributes

Activation Off

3 to 15 fc

Magnetic Ballast Load Ratings Ranges

8.3 A, 1700-2300 VA

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

Title 20

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Front

Photocontrol Style

Button

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Sensor Time Delay

30 sec to 90 sec

UL Certification

UL

UPC

078275029576

Usage Environments

Outdoor

WarrantyPeriod

2-Year limited

Wire Lead Length In

9

Wire Size Max

#18 AWG

Magnetic Ballast Load Ratings

8.3 A, 1700-2300 VA

Wiring Option

Wire leads

Expected Lifetime Years

5

Expected Lifetime Operations

3650

DataSheet

Click Here

CSA Certification

cCSAus

Cover Color

Gray

Brand

Intermatic

Application Compatibilities

HID;Fluorescent;Incandescent

Activation On

1 to 5 fc

Fail Mode

ON

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

Input Voltage Ranges

208-277 VAC, 50/60 Hz

Housing Material

Polycarbonate

GTIN

00078275029576

Feature4

3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket

Feature3

Delay feature prevents unwanted OFF switching

Feature2

Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
