filter--iconPrice List
Intermatic

K4021C

Intermatic | KP | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_K4021C

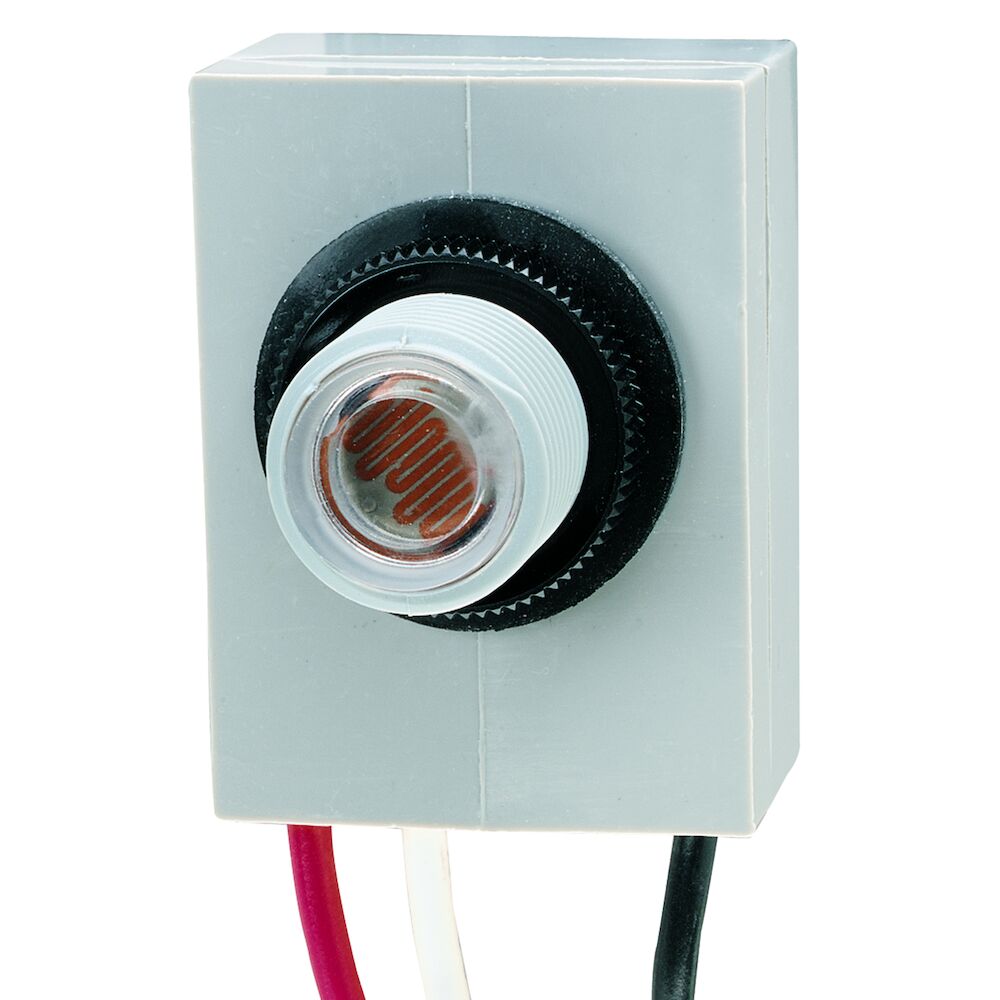

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

$11.70

Min: 1  Mult: 1

Product Attributes

Activation Off

3 to 15 fc

Wiring Option

Wire leads

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

Title 20

Photocontrol Photocell Type

Cadmium Sulfide

Photocontrol Sensor Location

Front

Photocontrol Style

Button

Photocontrol Switch Type

Mechanical Bimetal

Photocontrol Type

Thermal

Sensor Time Delay

30 sec to 90 sec

UL Certification

UL

UPC

078275002005

Usage Environments

Outdoor

WarrantyPeriod

2-Year limited

Wire Lead Length In

9

Wire Size Max

#18 AWG

Magnetic Ballast Load Ratings Ranges

8.3 A, 1000 VA

Magnetic Ballast Load Ratings

8.3 A, 1000 VA

Feature1

Mechanical bimetal switch with Cadmium Sulfide photocell

DataSheet

Click Here

Expected Lifetime Operations

3650

Expected Lifetime Years

5

Fail Mode

ON

Cover Color

Gray

Feature2

Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures

Feature3

Delay feature prevents unwanted OFF switching

Brand

Intermatic

Application Compatibilities

HID;Fluorescent;Incandescent

Activation On

1 to 5 fc

Feature4

3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket

GTIN

00078275002005

Housing Material

Polycarbonate

Input Voltage Ranges

120 VAC, 50/60 Hz

CSA Certification

cCSAus

MFG-Link

Click Here

Photo-3

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
