filter--iconPrice List

Product Attributes

Activation Off

2.25 fc

WarrantyPeriod

8-Year limited

Magnetic Ballast Load Ratings

1800 VA

Magnetic Ballast Load Ratings Ranges

1800 VA

Operating Temperature Max F

158

Operating Temperature Min F

-40

Other Certifications

Title 20;Ansi C136.10

Photocontrol Photocell Type

Silicon Diode

Photocontrol Sensor Location

Side

Photocontrol Style

Locking type

Photocontrol Switch Type

Relay

Photocontrol Type

Electronic

Product Diameter In

3.375

Sensor Time Delay

Instant ON; 2 sec to 5 sec OFF

Surge Protection Technology

685 J MOV

UL Certification

cULus

UPC

078275148970

Usage Environments

Outdoor

Input Voltage Ranges

347/480 VAC, 50/60 Hz

Housing Material

Polypropylene

Fail Mode

ON

Expected Lifetime Years

15

Expected Lifetime Operations

10000

DataSheet

Click Here

Cover Color

White with Yellow Band

Brand

Intermatic

Application Compatibilities

LED;Incandescent;HID

Activation On

1.5 fc

Feature1

Non-drift silicon light sensor with IR filter

Feature2

DC relay with zero-crossing circuitry for extended life

Feature3

All components meet 15-year life expectancy

GTIN

00078275148970

Feature4

Conformal coated PCB

Feature5

Exceeds 10,000 ON/OFF switching cycles

Feature6

Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)

Feature8

High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched

Feature7

685 J MOV surge protection

MFG-Link

Click Here

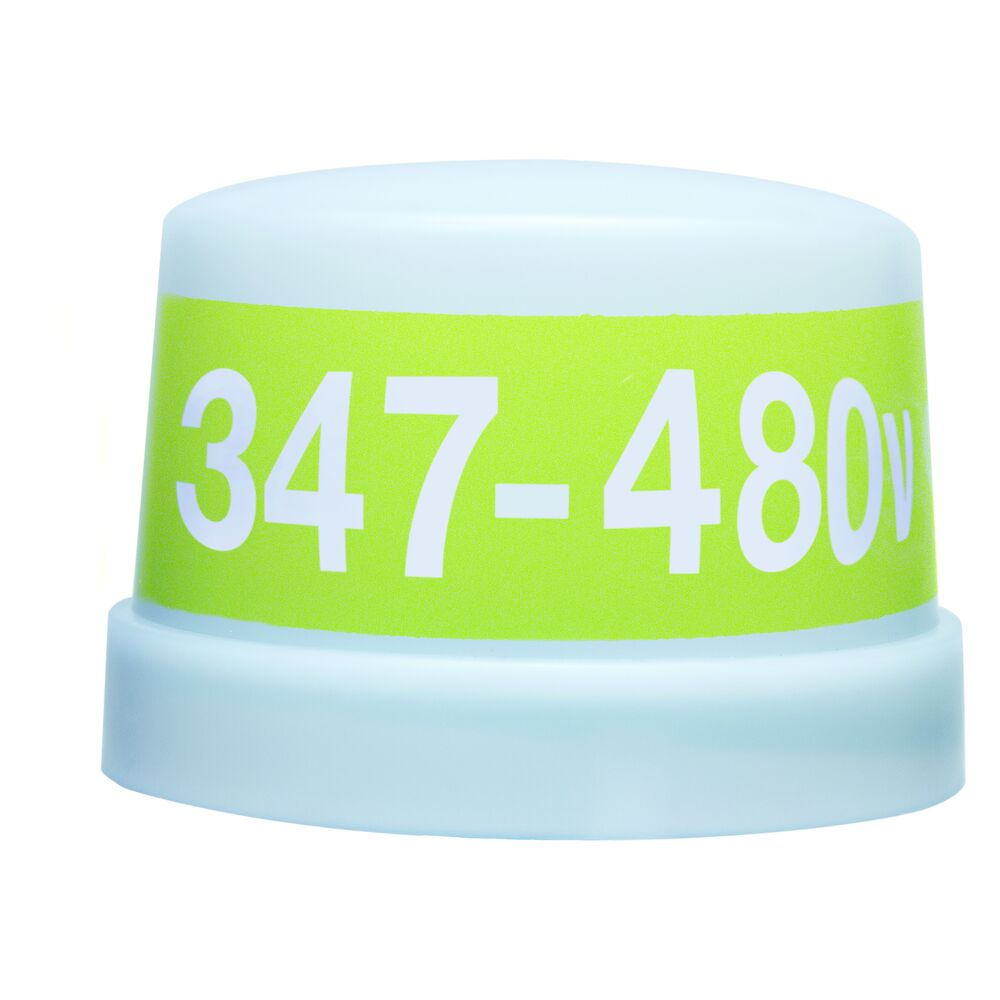

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
