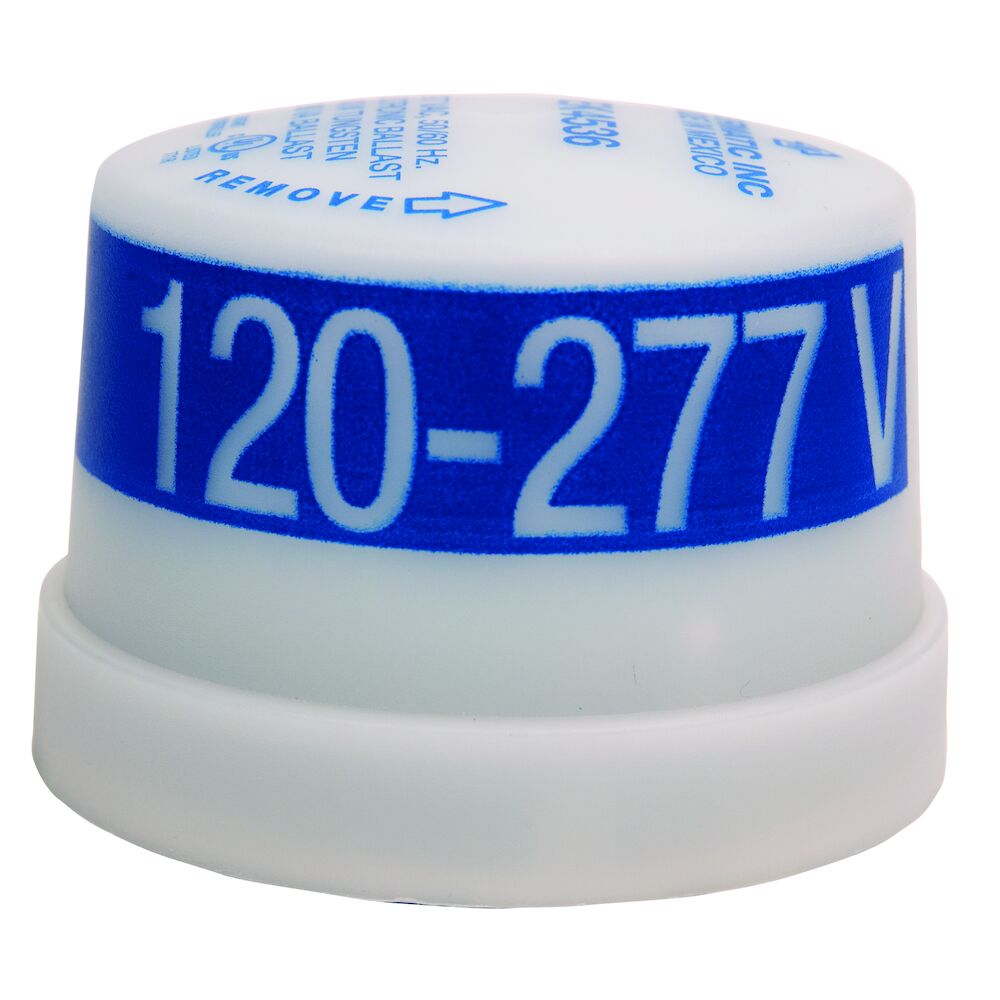

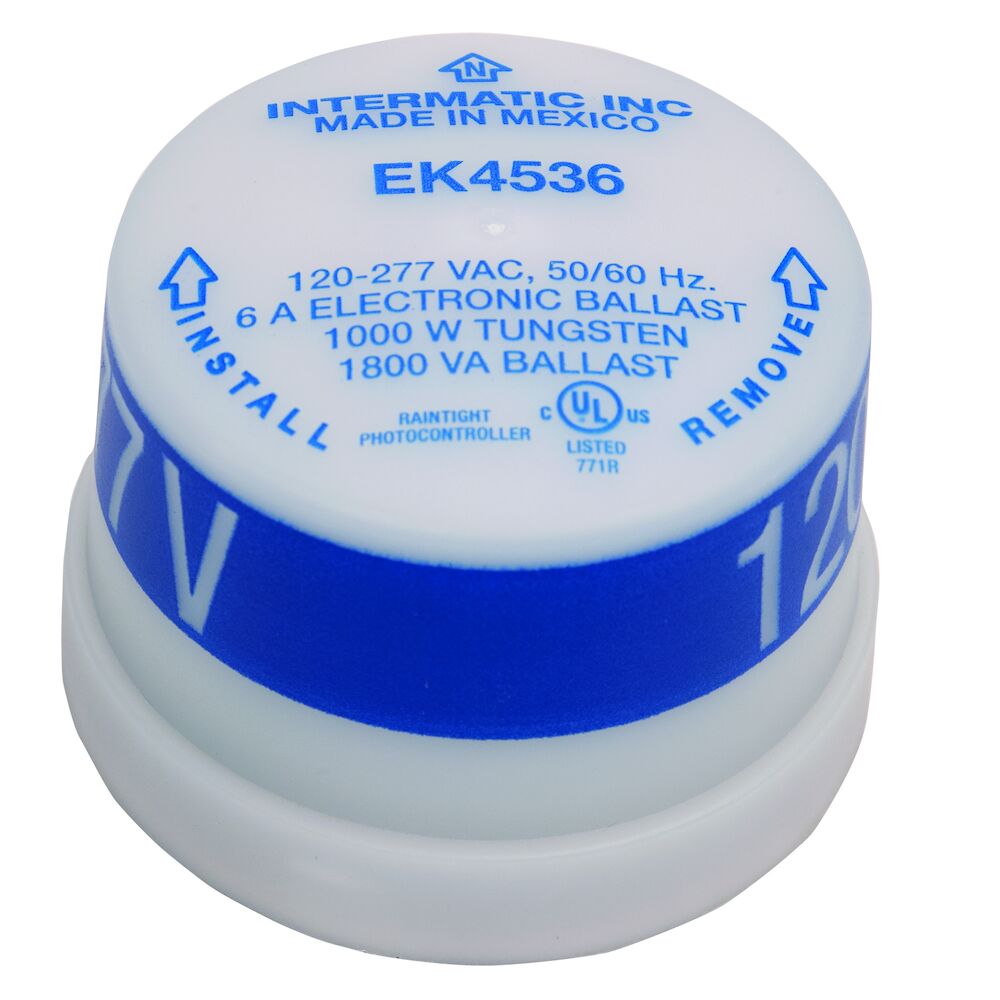

EK4536
Factory Lead Time: TBD
RoHs Compliant
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
WarrantyPeriod
8-Year limited
Photocontrol Photocell Type
Silicon Diode
Photo-2
Photo-1
Other Certifications
Title 20;Ansi C136.10
Operating Voltage Ranges
102-305 VAC
Operating Temperature Min F
-40
Operating Temperature Max F
158
MFG-Link
Photocontrol Sensor Location
Side
Photocontrol Style
Locking type
Usage Environments
Outdoor
UPC
078275130173
UL Certification
cULus
Surge Protection Technology
510 J MOV
Sensor Time Delay
Instant ON; 2 sec to 5 sec OFF
Product Diameter In
3.375
Photocontrol Type
Electronic
Photocontrol Switch Type
Relay
Magnetic Ballast Load Ratings Ranges
1800 VA
Magnetic Ballast Load Ratings
1800 VA
Activation Off
2.25 fc
Feature1
Non-drift silicon light sensor with IR filter
Fail Mode
ON
Expected Lifetime Years
15
Expected Lifetime Operations
10000
Cover Color
White with Blue Band
Brand
Intermatic
Application Compatibilities
LED;Incandescent;HID
Activation On
1.5 fc
Feature2
DC relay with zero-crossing circuitry for extended life
Feature3
All components meet 15-year life expectancy
Input Voltage Ranges
120-277 VAC, 50/60 Hz (Nominal Voltage)
Housing Material
Polypropylene
GTIN
00078275130173
Feature8
High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
Feature7
510 J MOV surge protection
Feature6
Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
Feature5
Exceeds 10,000 ON/OFF switching cycles
Feature4
Conformal coated PCB
LifeCycle
Production
