Intermatic

EK4135S

Intermatic | EK | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_EK4135S

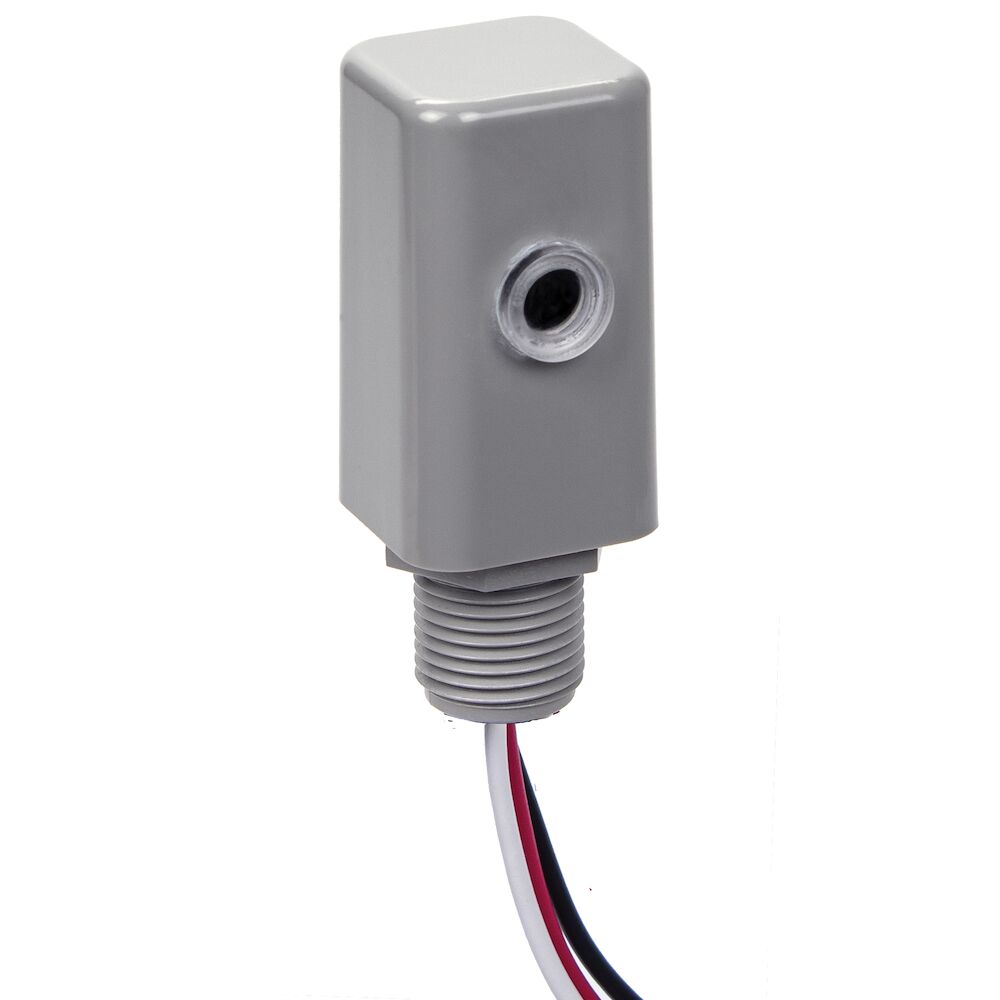

NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

$28.42

Min: 1  Mult: 1

Product Attributes

Wiring Option

Wire leads

Photocontrol Sensor Location

Side

Photocontrol Photocell Type

Silicon Diode

Photo-4

Click Here

Other Certifications

Title 20;Ansi C136.24

Operating Temperature Min F

-40

Operating Temperature Max F

158

Input Voltage Ranges

480 VAC, 50/60 Hz

Housing Material

Polycarbonate

Photocontrol Style

Stem Mount

Photocontrol Switch Type

Relay

Photocontrol Type

Electronic

Wire Size Max

#18 AWG

Wire Lead Length In

6

WarrantyPeriod

8-Year limited

Usage Environments

Outdoor

UPC

078275152403

UL Certification

cULus

Surge Protection Technology

220 J MOV, 5,000 A Surge

Sensor Time Delay

Instant ON; 2 sec to 5 sec OFF

GTIN

00078275152403

Feature9

1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter

Feature1

Non-drift silicon light sensor with IR filter

Fail Mode

ON

Expected Lifetime Years

15

Expected Lifetime Operations

10000

DataSheet

Click Here

Cover Color

Gray

Brand

Intermatic

Ballast Fluorescent Ranges

1800 VA

Ballast Fluorescent

1800 VA

Application Compatibilities

LED;Incandescent;HID

Activation On

1.5 fc

Feature10

#18 AWG wire leads

Feature2

DC relay with zero-crossing circuitry for extended life

Feature8

220 J MOV surge protection element

Feature7

Ideal for single or multifixture HID and LED installations

Feature6

Fail ON mode

Feature5

Exceeds 10,000 ON/OFF switching cycles

Feature4

15-year design life

Feature3

Conformal coated PCB

Activation Off

4.5 fc

MFG-Link

Click Here

Photo-1

Click Here

Photo-2

Click Here

LifeCycle

Production
