Intermatic

EK4035S

Intermatic | EK | Photocontrols
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_EK4035S

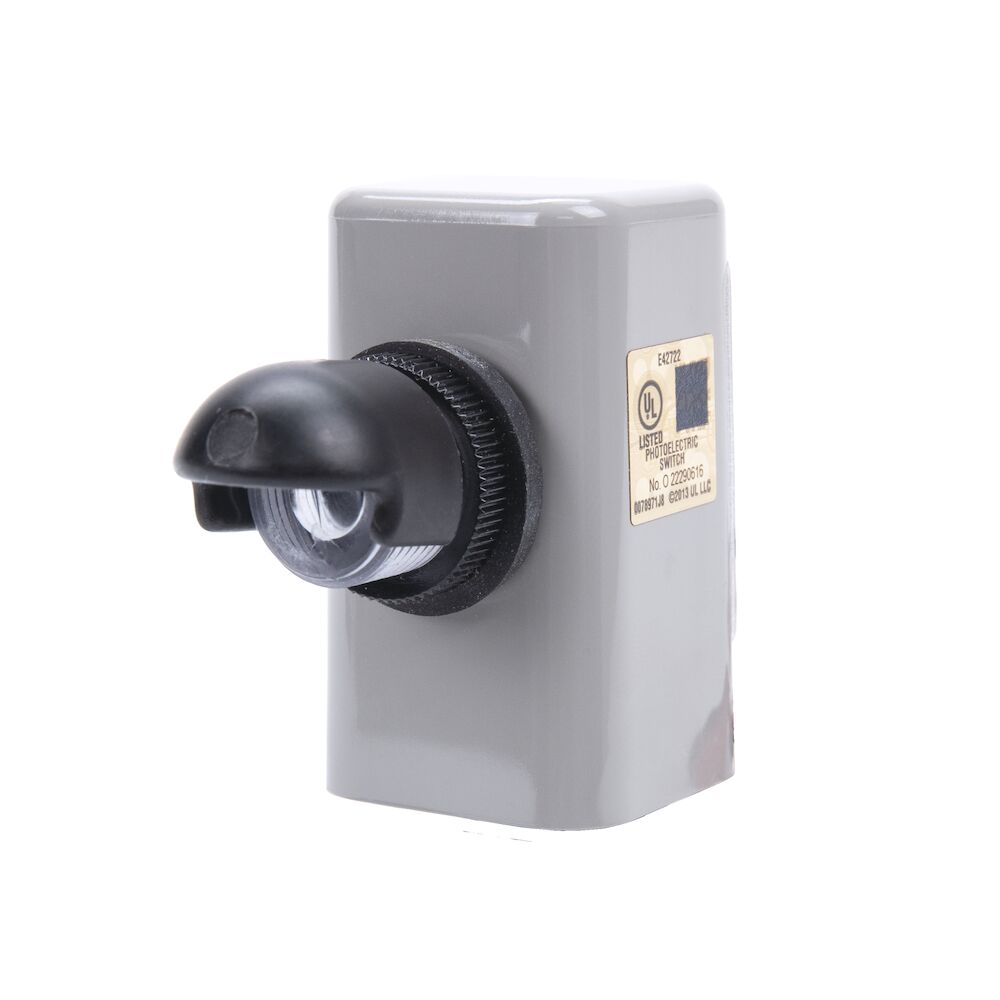

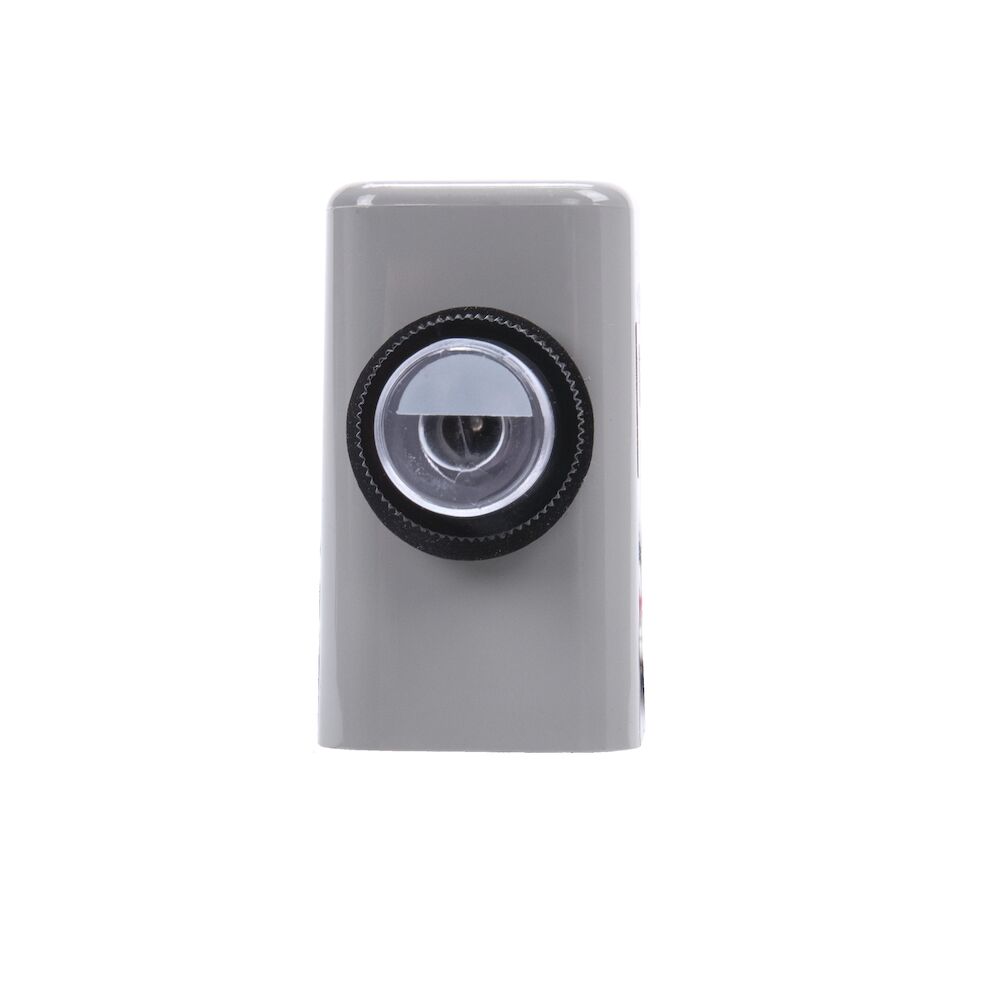

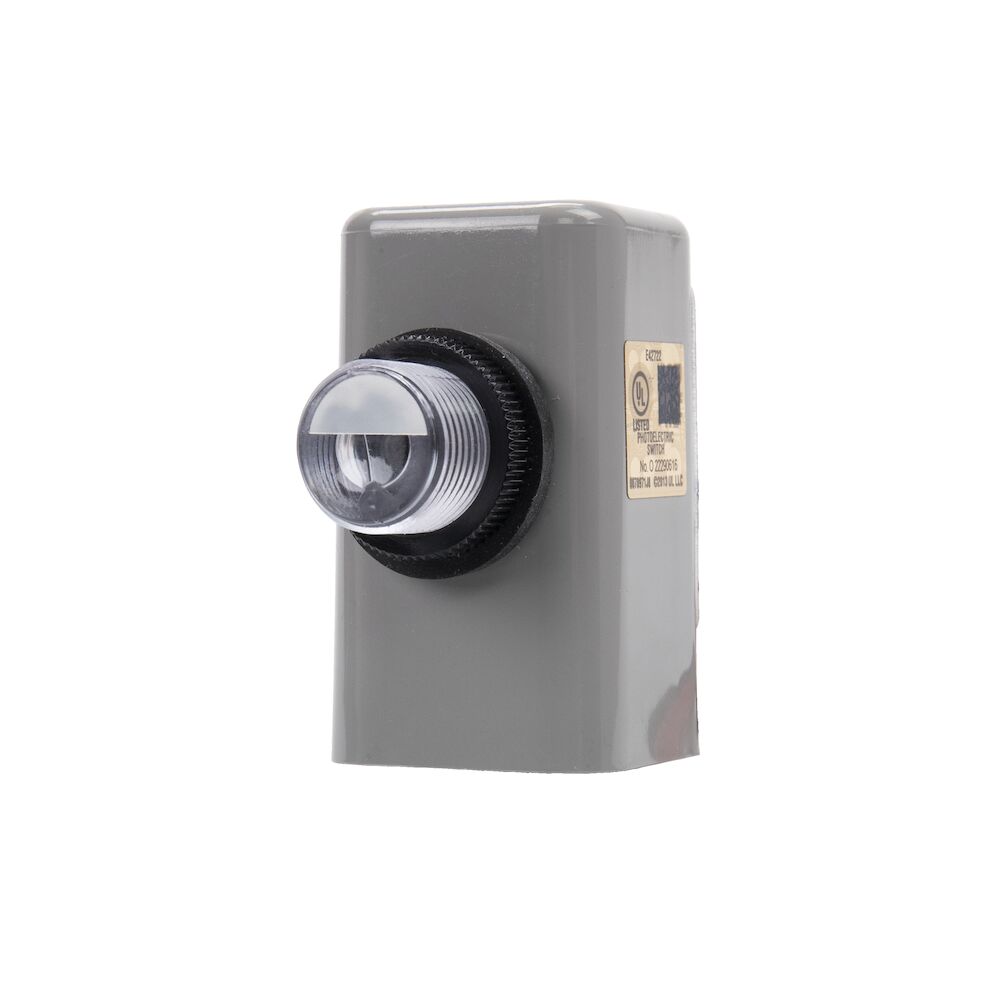

NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. Mounts internally to an enclosure with a minimum installation hole size of 5/8” diameter. Comes with 9" wire leads.

$27.06

Min: 1  Mult: 1

Product Attributes

Wiring Option

Wire leads

Photocontrol Style

Button

Photocontrol Sensor Location

Front

Photocontrol Photocell Type

Silicon Diode

Other Certifications

Title 20;Ansi C136.24

Operating Temperature Min F

-40

Operating Temperature Max F

158

Input Voltage Ranges

480 VAC, 50/60 Hz

Housing Material

Polycarbonate

Photocontrol Switch Type

Relay

Photocontrol Type

Electronic

Wire Size Max

#18 AWG

Wire Lead Length In

6

WarrantyPeriod

8-Year limited

Usage Environments

Outdoor

UPC

078275152397

UL Certification

cULus

Surge Protection Technology

220 J MOV, 5,000 A Surge

Sensor Time Delay

Instant ON; 2 sec to 5 sec OFF

GTIN

00078275152397

Feature9

Mounts internally to enclosure

Feature8

220 J MOV surge protection element

Fail Mode

ON

Expected Lifetime Years

15

Expected Lifetime Operations

10000

DataSheet

Click Here

Cover Color

Gray

Brand

Intermatic

Ballast Fluorescent Ranges

1800 VA

Ballast Fluorescent

1800 VA

Application Compatibilities

LED;Incandescent;HID

Activation On

1.5 fc

Feature1

Non-drift silicon light sensor with IR filter

Feature10

Features 3/8" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter

Feature2

DC relay with zero-crossing circuitry for extended life

Feature7

Ideal for single or multifixture HID and LED installations

Feature6

Fail ON mode

Feature5

Exceeds 10,000 ON/OFF switching cycles

Feature4

15-year design life

Feature3

Conformal coated PCB

Activation Off

4.5 fc

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
