Intermatic

GM40AVE-RD89

Intermatic | GE | Panel Mount timer
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_GM40AVE-RD89

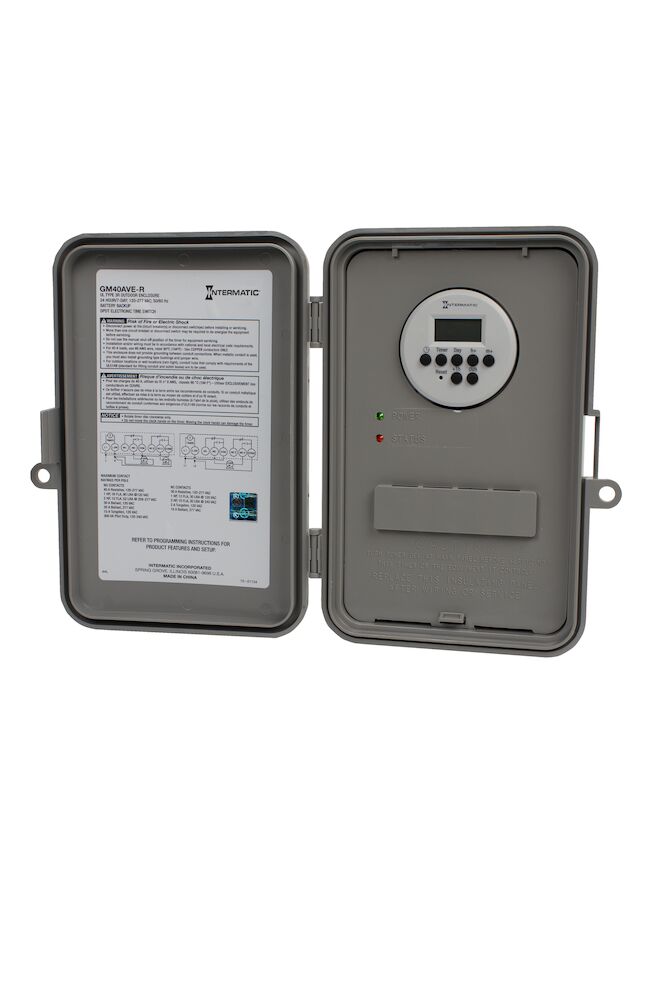

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT s

$109.28

Min: 1  Mult: 1

Product Attributes

Wiring Option

Screw box lug

Resistive Load Ratings NC Ranges

30 A, 120-277 VAC, 50/60 Hz

Photo-2

Click Here

Photo-1

Click Here

Other Certifications

Title 20

Operation Mode

24 hour;7 day

Operating Temperature Min F

5

Operating Temperature Max F

131

On Off Operations

98

Number Of Circuits

2

Resistive Load Ratings NO Ranges

40 A, 120-277 VAC, 50/60 Hz

Resistive NC Load Ratings

30 A, 277 VAC, 60Hz;30 A, 277 VAC, 50Hz;30 A, 240 VAC, 60 Hz;30 A, 240 VAC, 50 Hz;30 A, 208 VAC, 60 Hz;30 A, 208 VAC, 50 Hz;30 A, 120 VAC, 60 Hz;30 A, 120 VAC, 50 Hz

Wire Size Max

#8 AWG

WarrantyPeriod

1-Year limited

Voltage Selection Type

Auto Voltage

UPC

078275142428

UL Certification

cULus

Tungsten NO Load Ratings

15 A, 120 VAC, 50 Hz;15 A, 120 VAC, 60 Hz

Switch Type

DPDT

Setpoint Program Count

14

Resistive NO Load Ratings

40 A, 277 VAC, 60 Hz;40 A, 277 VAC, 50 Hz;40 A, 240 VAC, 60 Hz;40 A, 240 VAC, 50 Hz;40 A, 208 VAC, 60 Hz;40 A, 208 VAC, 50 Hz;40 A, 120 VAC, 50 Hz;40 A, 120 VAC, 60 Hz

Motor Load Ratings NO Ranges

1 HP, 16 FLA, 96 LRA @ 120 VAC, 50/60 Hz; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC, 50/60 Hz

Motor Load Ratings NC Ranges

1 HP, 12 FLA, 30 LRA @ 120 VAC, 50/60 Hz; 2 HP, 10 FLA, 30 LRA @ 240 VAC, 50/60 Hz

Minimum On Off Time

1 min

Feature10

To-the-minute accuracy

Feature1

Heavy-duty 40 A contact rating

Expected Lifetime Operations

6000

Enclosure Type

Outdoor type 3R plastic

Daylight Saving Adjustment

Manual

Datasheet

Click Here

Brand

Domestic Intermatic

Battery Type

NiMh

Backup Type

Battery

Feature2

Automatically adjusts voltages between 120-277 VAC

Feature3

24-Hour/7-day flexible scheduling

MFG-Link

Click Here

GTIN

00078275142428

Feature9

Type 3R outdoor enclosure with lockable hasp

Feature8

Self-recharging battery with back up protection up to 2500 hours

Feature7

Manual override with load status indication

Feature6

14 Setpoint programs

Feature5

DPDT switching configuration (2 NO and 2 NC Contacts)

Feature4

Power and status LED indicators

Backup Protection Time

2500 Hours

LifeCycle

Production
