Intermatic

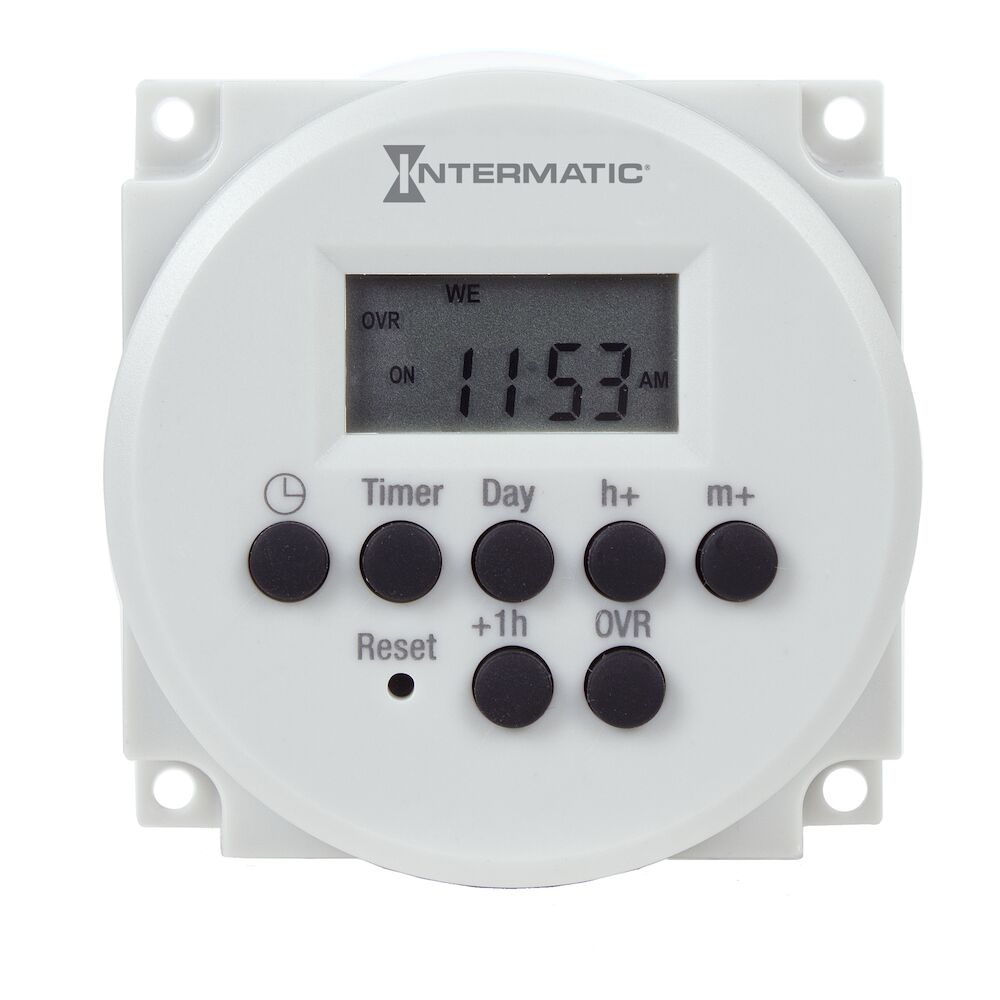

FM1D14-AV-U

Intermatic | GE | Panel Mount timer
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_FM1D14-AV-U
The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for ins

$103.57

Min: 1  Mult: 1

Product Attributes

Wiring Option

Spade terminals for #24 to #10 AWG wire (A models)

Operating Temperature Min F

5

Operating Temperature Max F

131

Operating Humidity

0-95% RH, Non-condensing

On Off Operations

20

Number Of Circuits

1

Mounting Options

Panel

Motor Load Ratings NO Ranges

1/2 HP @ 120 VAC; 10 FLA, 60 LRA @ 250 VAC; 1 HP @ 250 VAC

Motor Load Ratings NC Ranges

1/2 HP @ 120/240 VAC; 10 FLA, 60 LRA @ 250 VAC

Minimum On Off Time

1 min

MFG-Link

Click Here

Operation Mode

24 hour;7 day;Cycle

Other Certifications

cRUus;Title 20

Photo-1

Click Here

WarrantyPeriod

1-Year limited

Voltage Selection Type

Voltage Specific

UPC

078275142770

Tungsten NO Load Ratings

1000 W, 120 VAC

Switch Type

SPDT

Setpoint Program Count

14

Resistive NC Load Ratings

12 A, 24 VDC

Power Consumption Max W

1.4 W

Power Consumption Max Va

4

Pilot Duty NO Load Ratings

B300

Mechanism Type

Digital/Electrical

Magnetic Ballast NO Load Ratings

8 A, 277 VAC

Expected Lifetime Operations

6000

Electronic Ballast NO Load Ratings

4.9 A, 120 VAC

Daylight Saving Adjustment

Manual

Datasheet

Click Here

Cut Out Width In

2 5/8

Cut Out Height In

2 5/8

Brand

Domestic Intermatic

Battery Service Type

Self-recharging

Backup Type

Battery

Backup Protection Time

2500 Hours

Feature1

24-Hour or 7-day applications

Feature2

14 Setpoint programs

Feature3

Easy to program

Magnetic Ballast NC Load Ratings

8 A, 120 VAC

GTIN

00078275142770

General Purpose NO Load Ratings

15 A, 277 VAC

General Purpose NC Load Ratings

15 A, 277 VAC

Feature8

A & E models come with clear dust cover

Feature7

5 Preset adjustable block programs

Feature6

LCD display

Feature5

Self-recharging battery with backup protection up to 2500-hours

Feature4

Manual override with status indication

Application Compatibilities

LED

LifeCycle

Production
