Intermatic

IOS-CMP-LV

Intermatic | OV | Occupancy Sensors
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_IOS-CMP-LV

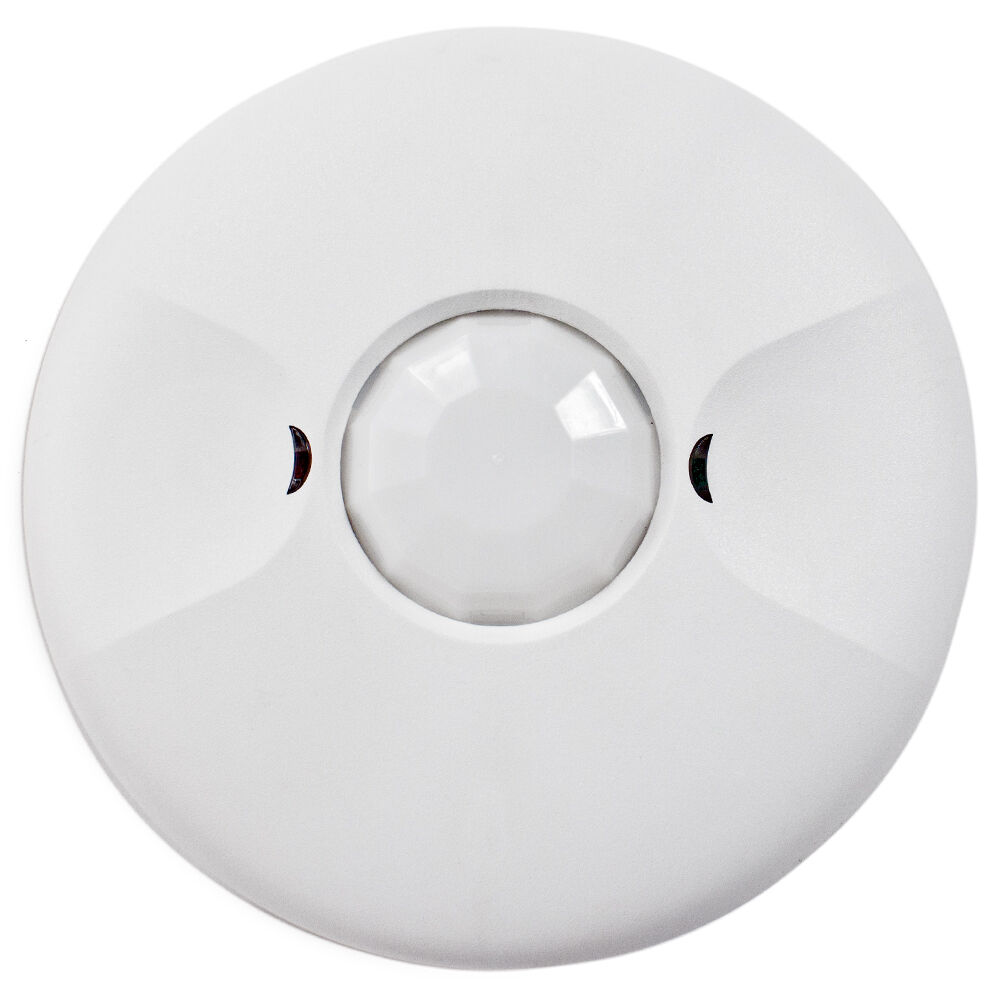

The IOS-CMP-LV 360° Passive Infrared (PIR) Low Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified or Autoset time of 15 seconds to 30 minutes, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.

$55.35

Min: 1  Mult: 1

Product Attributes

Adjustable Light Level Max

150 fc

Feature8

Powered by IOS-PP24 power pack, sold separately

GTIN

00078275139909

Input Voltage Ranges

24 VDC

Occupancy Sensor Power Type

Low Voltage

Occupancy Sensor Switch Type

Occupancy

Occupancy Sensor Technology

PIR (Passive Infrared)

Operating Temperature Max F

122

Operating Temperature Min F

32

Other Certifications

Title 20

PIR Coverage Area Sq Ft

1200

PIR Coverage Pattern

360

Product Diameter In

4.563

UPC

078275139909

Feature7

Adjustable time delay

Feature6

Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling

Adjustable Light Level Min

10 fc

Adjustable Time Delay Max

30 min

Adjustable Time Delay Min

15 sec

Ballast Fluorescent

Please see IOS-PP24

Ballast Fluorescent Ranges

Please see IOS-PP24

Brand

Intermatic

Color

White

DataSheet

Click Here

Feature1

Fresnel lens with 360° field of view, 1200 sq.ft.

Feature2

Adjustable ambient light level detection

Feature3

Optional Walk-through mode for increased energy savings

Feature4

PIR sensing for presence detection

Feature5

Low-voltage, remote-mounted sensor

WarrantyPeriod

2-Year limited

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
