Intermatic

IOS-CMP-DT-U

Intermatic | OV | Occupancy Sensors
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_IOS-CMP-DT-U

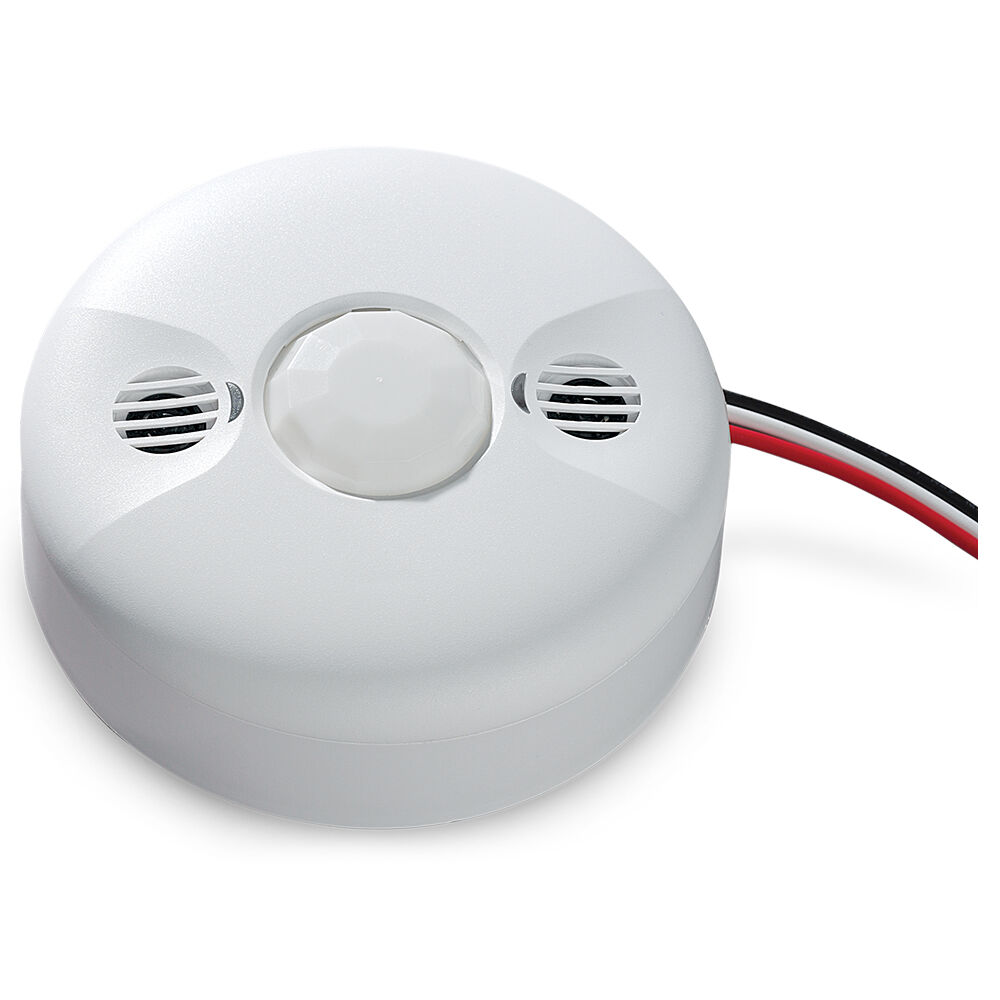

The IOS-CMP-DT-U Dual Technology Line Voltage Occupancy Sensors control loads based on occupancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 5 seconds to 30 minutes, the load is turned OFF. The occupancy senso

$97.85

Min: 1  Mult: 1

Product Attributes

Adjustable Light Level Max

Daylight

Input Voltage Ranges

120/277 VAC, 50/60 Hz

Occupancy Sensor Power Type

Line Voltage

Occupancy Sensor Switch Type

Occupancy

Occupancy Sensor Technology

Dual Technology (PIR/Ultrasonic);Zero-crossing

Operating Temperature Max F

131

Operating Temperature Min F

32

Other Certifications

Title 20

PIR Coverage Area Sq Ft

1600

PIR Coverage Pattern

360

Product Diameter In

4.563

UL Certification

cULus

UPC

078275148383

GTIN

00078275148383

Feature6

Incandescent/Fluorescent/CFL/LED compatible

Feature5

Requires neutral connection

Adjustable Light Level Min

10 fc

Adjustable Time Delay Max

30 min

Adjustable Time Delay Min

5 sec

Application Compatibilities

Incandescent;Fluorescent;CFL;LED

Ballast Fluorescent Ranges

800 VA, 120 VAC; 1600 VA, 277 VAC

Brand

Intermatic

Color

White

DataSheet

Click Here

Feature1

Ultrasonic and PIR sensing improves presence detection while avoiding false triggers, even in areas with partitions and/or small movements

Feature2

Zero-crossing technology for long life and performance

Feature3

Coverage: 360°, 1600 ft2 PIR, 1000 ft2 Ultrasonic mounted on 8 to 11 ft ceiling

Feature4

Adjustable ambient light sensor override

WarrantyPeriod

2-Year limited

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
