Intermatic

IOS-CMP-DT-LV

Intermatic | OV | Occupancy Sensors
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_IOS-CMP-DT-LV

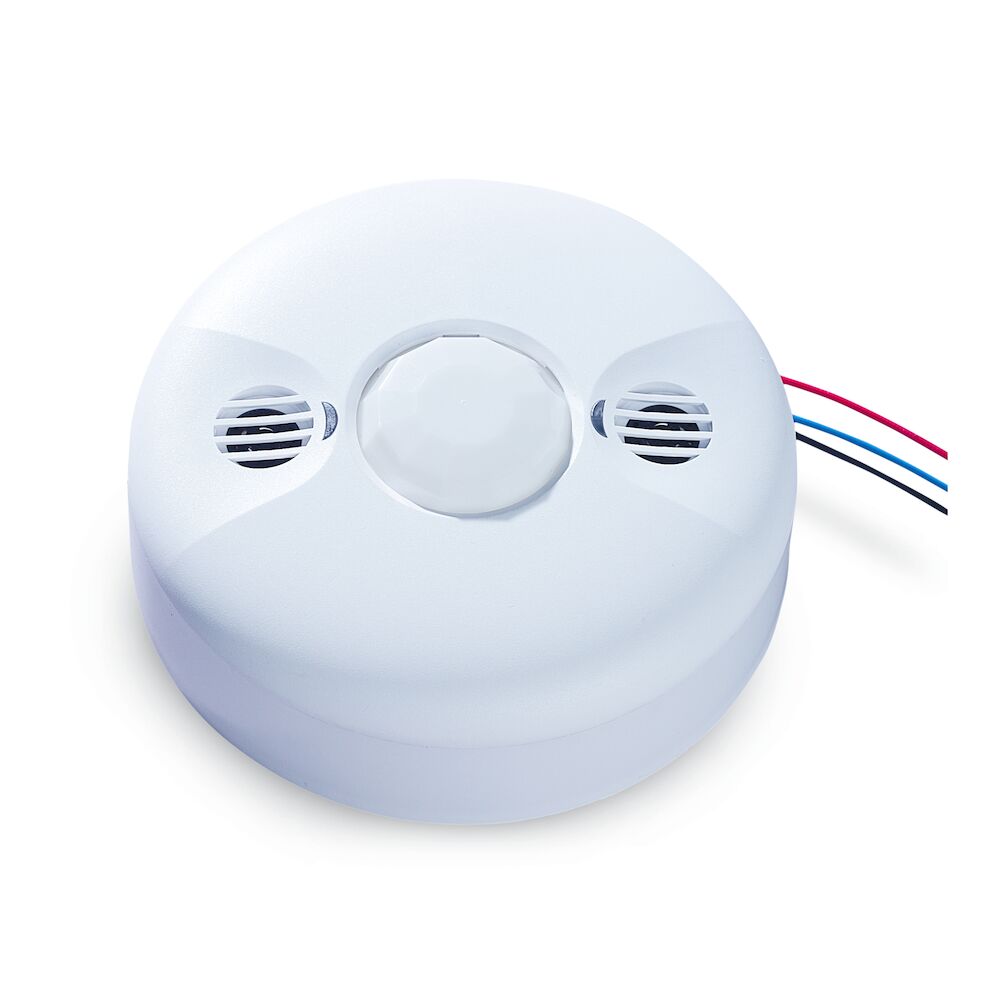

The IOS-CMP-DT-LV 360° Dual Technology Low Voltage Occupancy Sensors control the load based on occupancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 5 seconds to 30 minutes, the load is turned OFF. The occupan

$97.86

Min: 1  Mult: 1

Product Attributes

Adjustable Light Level Max

Daylight

GTIN

00078275148376

Input Voltage Ranges

24 VDC

Occupancy Sensor Power Type

Low Voltage

Occupancy Sensor Switch Type

Occupancy

Occupancy Sensor Technology

Dual Technology (PIR/Ultrasonic)

Operating Temperature Max F

122

Operating Temperature Min F

32

Other Certifications

Title 20

PIR Coverage Area Sq Ft

1600

Product Diameter In

4.563

UPC

078275148376

Feature8

Adjustable sensitivity settings for PIR and Ultrasonic technologies

Feature7

Selectable ON/OFF Delay

Feature6

Powered by IOS-PP24 power pack, sold separately

Adjustable Light Level Min

10 fc

Adjustable Time Delay Max

30 min

Adjustable Time Delay Min

5 sec

Brand

Intermatic

Color

White

DataSheet

Click Here

Feature1

Ultrasonic and PIR sensing for presence detection, even in areas with partitions and/or with small movements

Feature2

Low-voltage, ceiling mounted sensor

Feature3

Coverage: 360°, 1600 ft2 PIR, 1000 ft2 Ultrasonic mounted on 8 to 11 ft ceiling

Feature4

Adjustable time delay

Feature5

Adjustable ambient light sensor override

WarrantyPeriod

2-Year limited

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
