Intermatic

T7801B

Intermatic | TS | Mechanical Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_T7801B

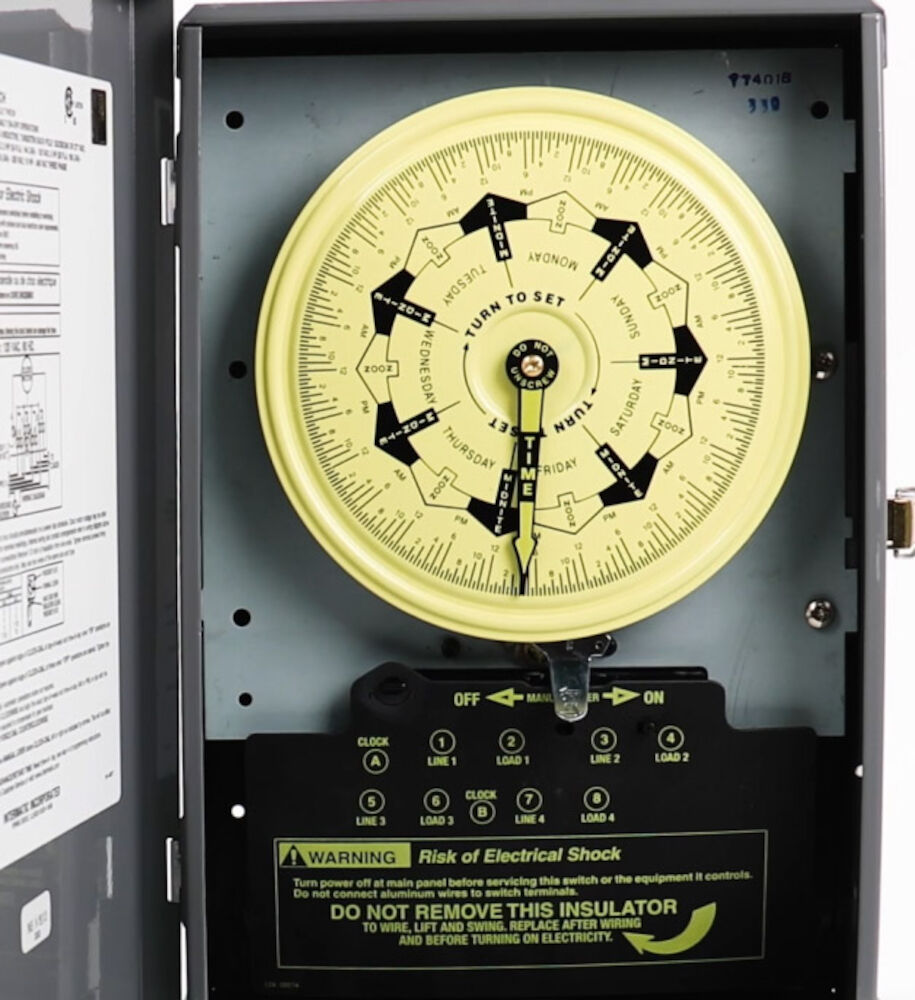

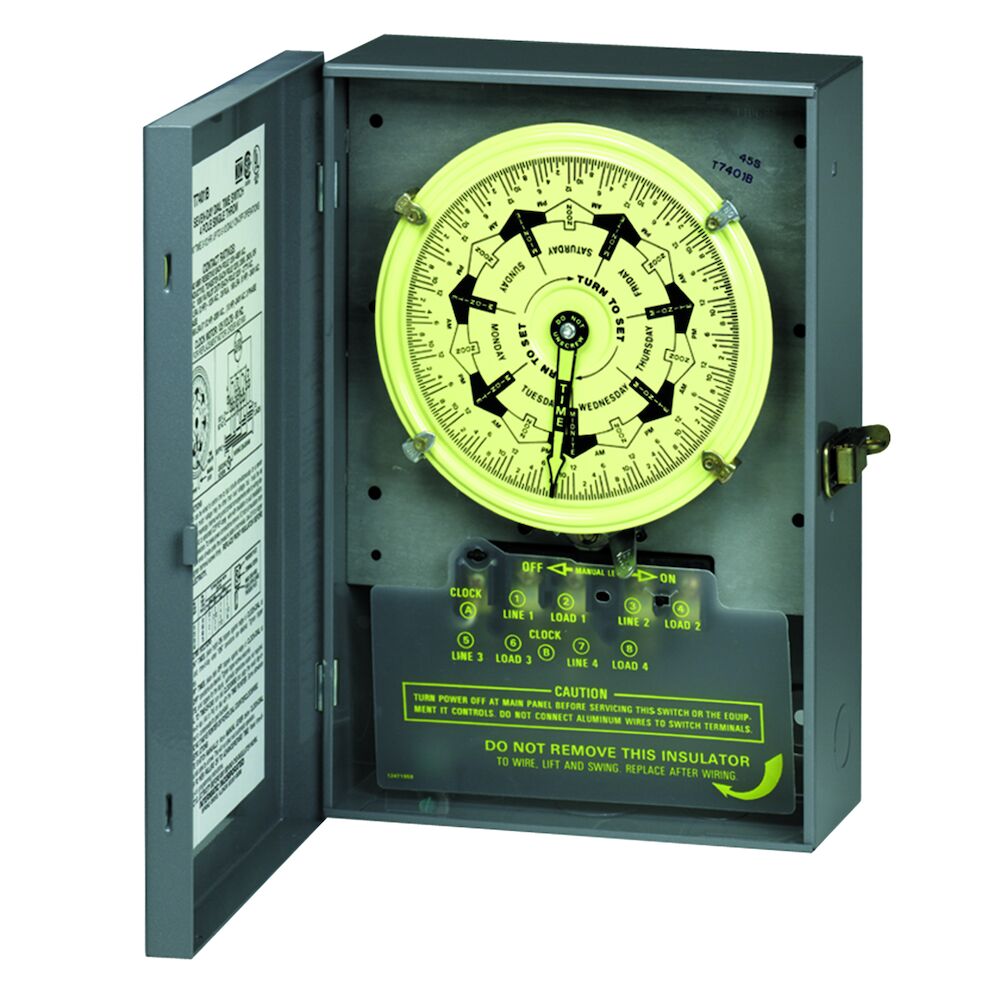

These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

$193.47

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

LED;HID

Number Of Circuits

2

Operating Temperature Max F

130

Operating Temperature Min F

-40

Operation Mode

7 day

Other Certifications

LED

Pilot Duty Load Ratings

1000 VA, 120 VAC, 60 Hz;1000 VA, 208 VAC, 60 Hz;1000 VA, 240 VAC, 60 Hz;1000 VA, 277 VAC, 60 Hz

Power Consumption Max W

3 W

Skipper Wheel Operation Mode

Not Included

Switch Type

2 NO/2 NC

UL Certification

cULus

UPC

078275463011

WarrantyPeriod

1-Year limited

Wire Size Max

#8 AWG

Wire Size Min

#14 AWG

Minimum On Off Time

3.5 hours

Wiring Option

Terminals

Brand

Intermatic

CSA Certification

cCSAus

DataSheet

Click Here

Enclosure Type

Indoor type 1 metal

Feature1

Different ON/OFF programs each day of the week

Feature2

True 7-day load control with minimum ON/OFF time of 3 1⁄2 hours

Feature3

Separate clock motor terminals for switching loads not on line voltage

Feature4

Carry-over automatically rewinds when power resumes

Feature5

Minimum of 16-hour carry-over for maintaining preset schedules during power failures

Feature6

Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal

GTIN

00078275463011

Input Voltage Ranges

120 VAC, 60 Hz

Maximum On Off Operations

28

MFG-Link

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production
