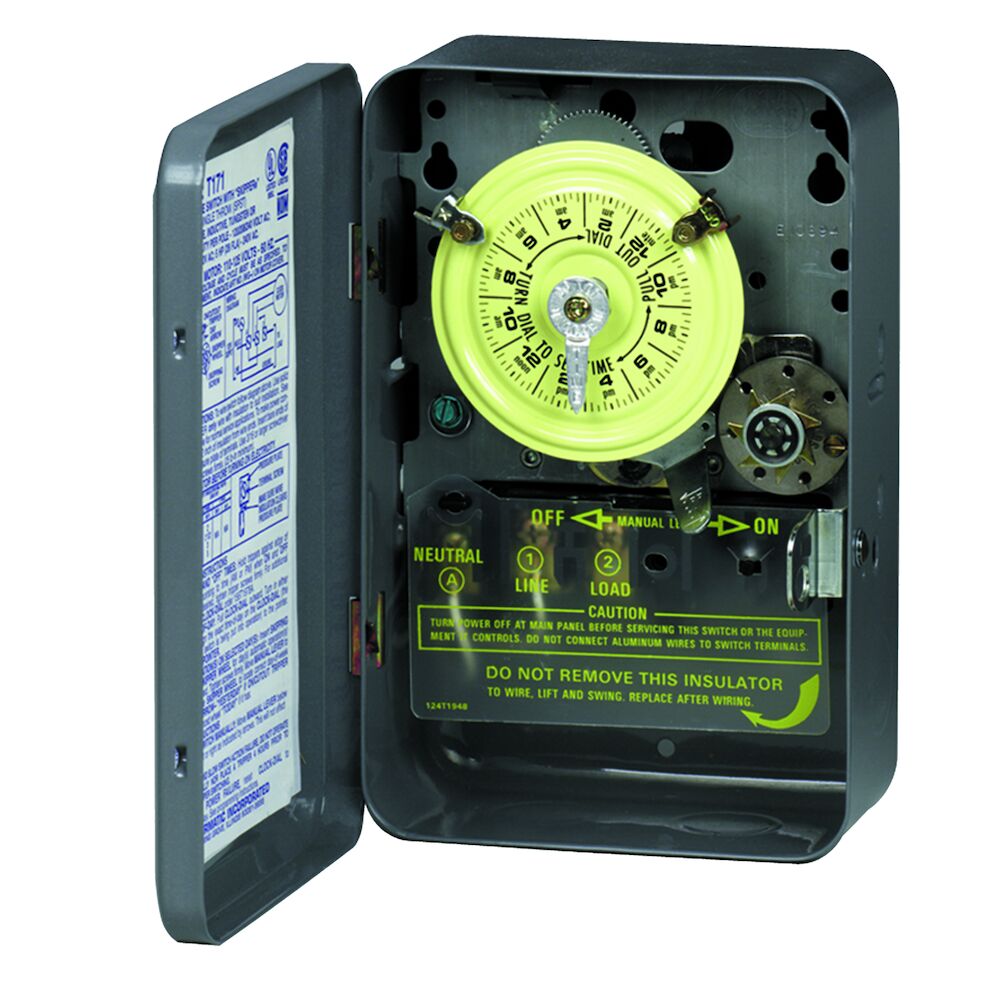

Intermatic

T176

Intermatic | TS | Mechanical Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_T176
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

$143.41

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

LED;HID

Number Of Circuits

1

Operating Temperature Max F

130

Operating Temperature Min F

-40

Operation Mode

24 hour

Other Certifications

LED

Pilot Duty Load Ratings

1000 VA, 120 VAC, 60 Hz;1000 VA, 208 VAC, 60 Hz;1000 VA, 240 VAC, 60 Hz;1000 VA, 277 VAC, 60 Hz

Power Consumption Max W

3 W

Skipper Wheel Operation Mode

Not Included

Switch Type

1 NO/1 NC

UL Certification

cULus

UPC

078275176218

WarrantyPeriod

1-Year limited

Wire Size Max

#8 AWG

Wire Size Min

#14 AWG

Minimum On Off Time

1 hour

Wiring Option

Terminals

Brand

Intermatic

CSA Certification

cCSAus

DataSheet

Click Here

Enclosure Type

Indoor type 1 metal

Feature1

Controls loads up to 40 A per pole

Feature2

Direct 24-hour control of most loads

Feature3

Up to 10 ON/OFF operations each day

Feature4

Minimum ON/OFF times of one hour

Feature5

Manual override

Feature6

One ON and one OFF tripper and three day-skipper screws included

GTIN

00078275176218

Input Voltage Ranges

208-277 VAC, 60 Hz

Maximum On Off Operations

10

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
