Intermatic

T105

Intermatic | TS | Mechanical Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_T105

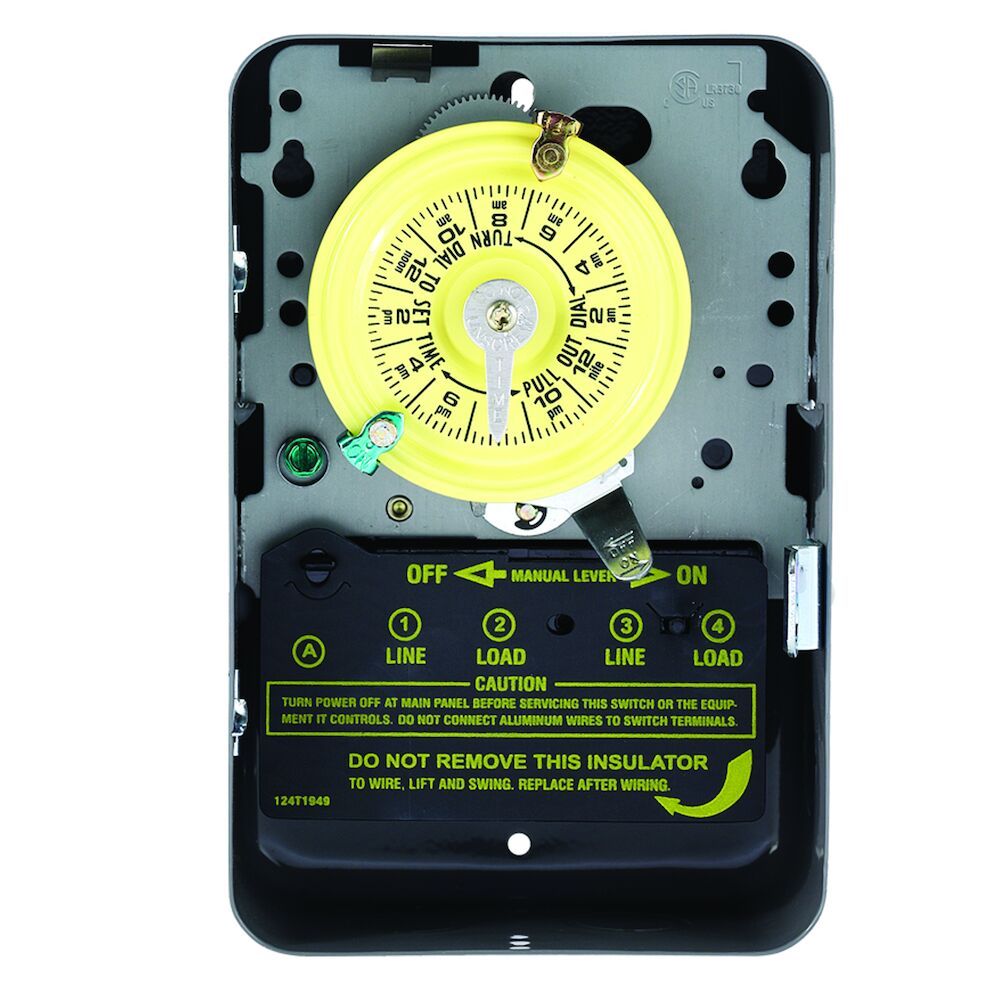

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

$97.47

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

LED;HID

Operating Temperature Max F

130

Operating Temperature Min F

-40

Operation Mode

24 hour

Other Certifications

LED

Pilot Duty Load Ratings

1000 VA, 120-240 VAC, 60 Hz

Power Consumption Max W

3 W

Skipper Wheel Operation Mode

Not Included

Switch Type

1 NO/1 NC;SPDT

UL Certification

cULus

UPC

078275800106

WarrantyPeriod

1-Year limited

Wire Size Max

#8 AWG

Wire Size Min

#14 AWG

Number Of Circuits

1

Minimum On Off Time

1 hour

Wiring Option

Terminals

Brand

Intermatic

CSA Certification

cCSAus

DataSheet

Click Here

Enclosure Type

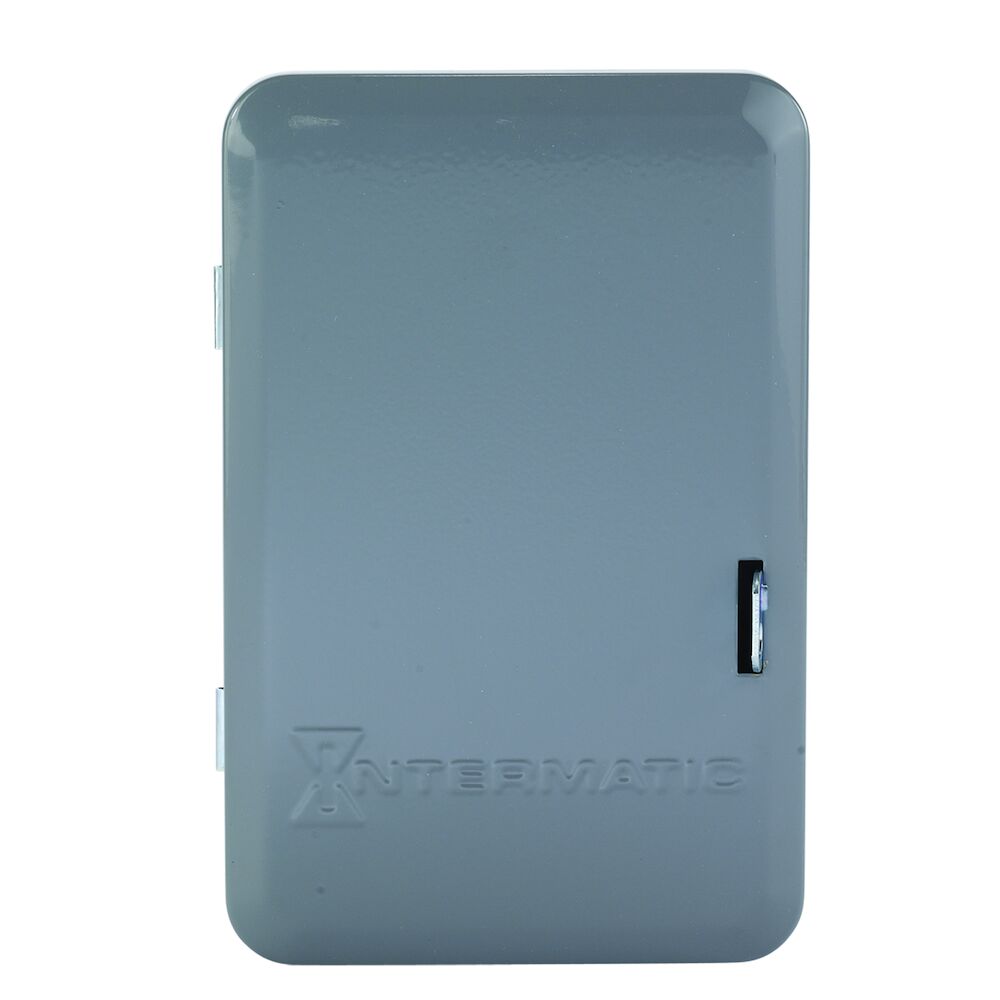

Indoor type 1 metal

Feature1

Direct 24-hour control of most loads

Feature2

Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour

Feature3

Manual override

Feature4

One ON and one OFF tripper included

Feature5

Can be installed in most Intermatic enclosures

GTIN

00078275800106

Input Voltage Ranges

120 VAC, 60 Hz

Maximum On Off Operations

12

MFG-Link

Click Here

Photo-3

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production
