Intermatic

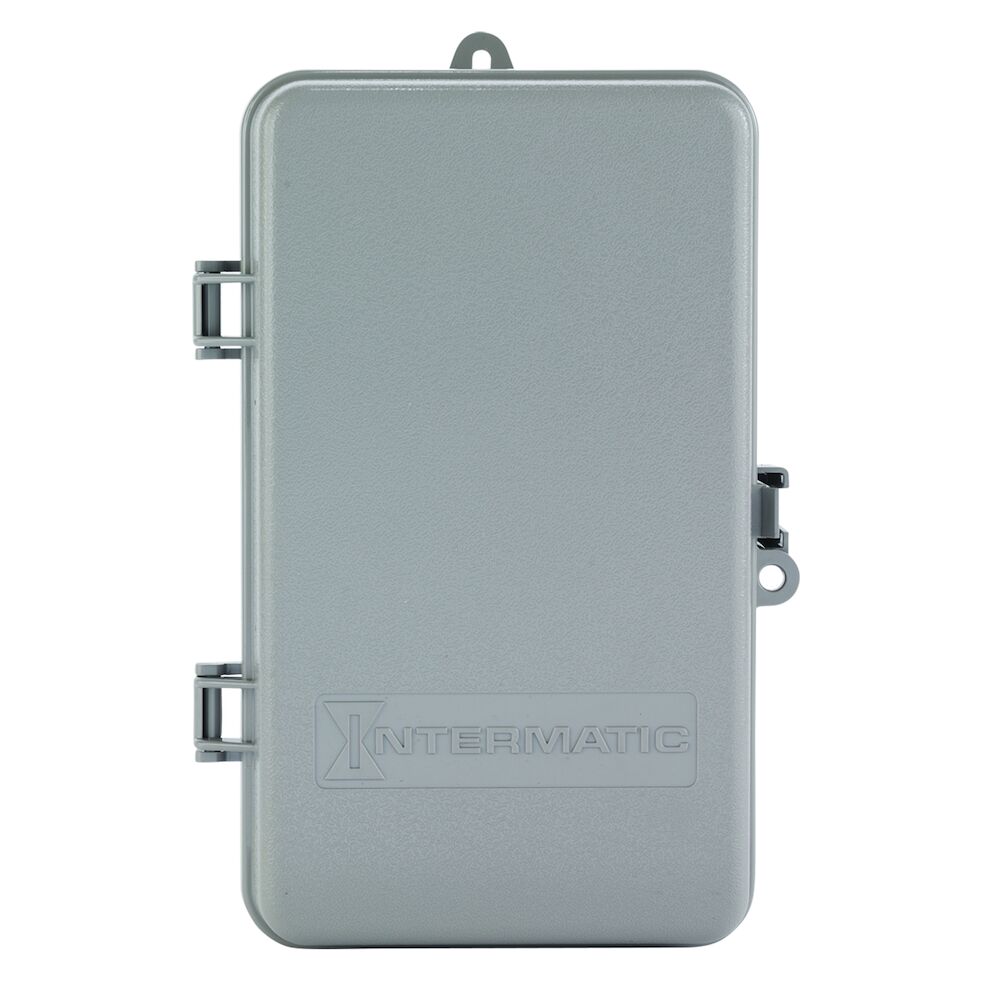

T102P

Intermatic | TS | Mechanical Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_T102P
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

$137.94

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

LED;HID

Operating Temperature Max F

130

Operating Temperature Min F

-40

Operation Mode

24 hour

Other Certifications

LED

Pilot Duty Load Ratings

1000 VA, 120 VAC, 60 Hz;1000 VA, 208 VAC, 60 Hz;1000 VA, 240 VAC, 60 Hz;1000 VA, 277 VAC, 60 Hz

Power Consumption Max W

3 W

Skipper Wheel Operation Mode

Not Included

Switch Type

SPST

UL Certification

cULus

UPC

078275000216

WarrantyPeriod

1-Year limited

Wire Size Max

#8 AWG

Wire Size Min

#14 AWG

Number Of Circuits

1

Minimum On Off Time

1 hour

Brand

Intermatic

CSA Certification

cCSAus

DataSheet

Click Here

Enclosure Type

Indoor/outdoor type 3R plastic

Feature1

Direct 24-hour control of most loads

Feature2

Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour

Feature3

Manual override

Feature4

One ON and one OFF tripper included

GTIN

00078275000216

Input Voltage Ranges

208-277 VAC, 60 Hz

Maximum On Off Operations

12

Wiring Option

Terminals

MFG-Link

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production
