Intermatic

KM2STU-1G

Intermatic | EJ | Mechanical Timers
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

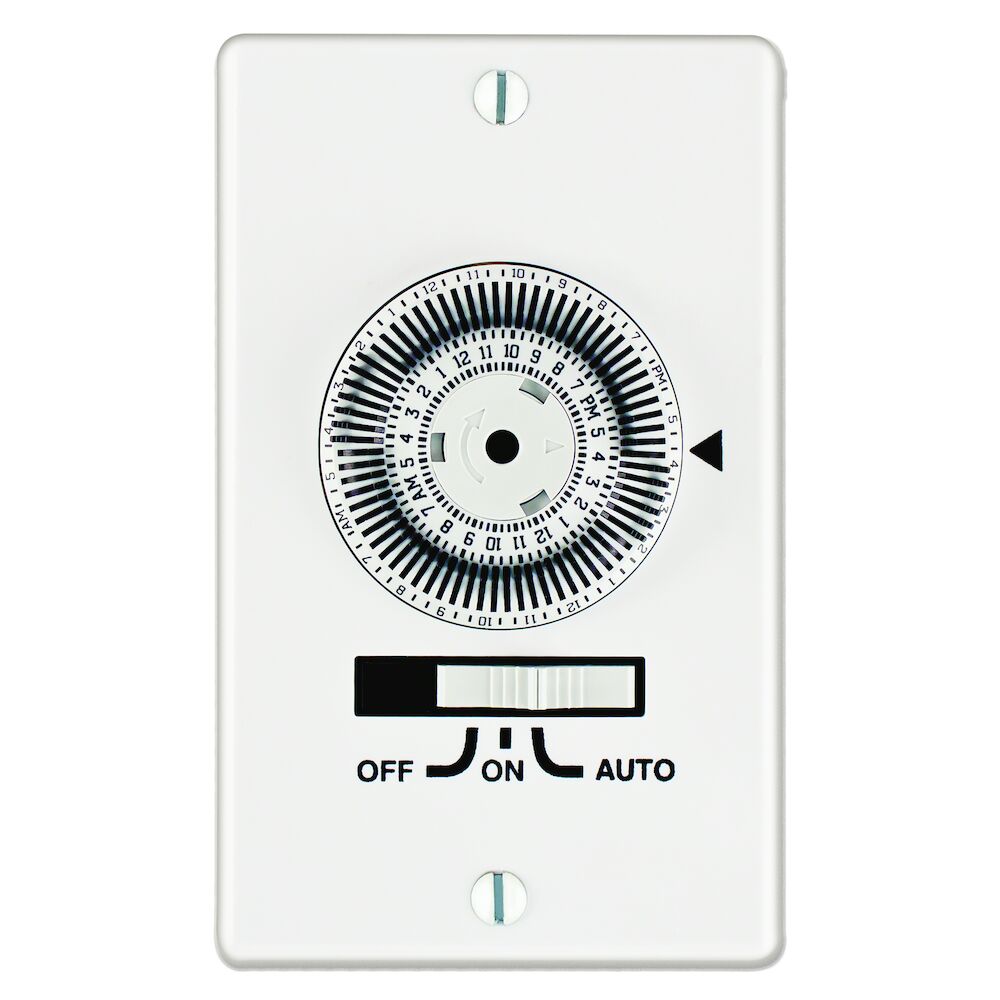

For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads.

$42.16

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Incandescent;Fluorescent;CFL

Maximum On Off Operations

36

Mechanism Type

Analog/Mechanical

MFG-Link

Click Here

Minimum On Off Time

20 min

Operating Humidity

0 to 95%, Non-condensing

Operating Temperature Max F

180

Operating Temperature Min F

-40

Operation Mode

24 hour

Photo-1

Click Here

Switch Type

SPDT

UL Certification

cULus

UPC

078275153738

WarrantyPeriod

1-Year limited

Input Voltage Ranges

120 VAC, 60 Hz

In Wall Wiring Configurations

Single;3-Way

Brand

Intermatic

Color

White

CSA Certification

cCSAus

Feature1

72 trippers provide 36 ON/OFF events per 24-hour period

Feature2

Captive trippers with 20-minute switching intervals

Feature3

3-way (SPDT) switch available

Feature4

3-position ON/OFF/AUTO override provides continuous ON or OFF operation

Feature5

Reliable synchronous timer motor

Feature6

Multiple wall plates available

Feature7

Easy wiring and installation

Feature8

Heavy-Duty 20 A rating

Feature9

Requires neutral connection

GTIN

00078275153738

Wiring Option

SPST (3) #14 AWG color coded;SPDT (4) #14 AWG color coded

LifeCycle

Production
