Intermatic

DTAV40Q-M

Intermatic | GR | Mechanical Defrost
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_DTAV40Q-M

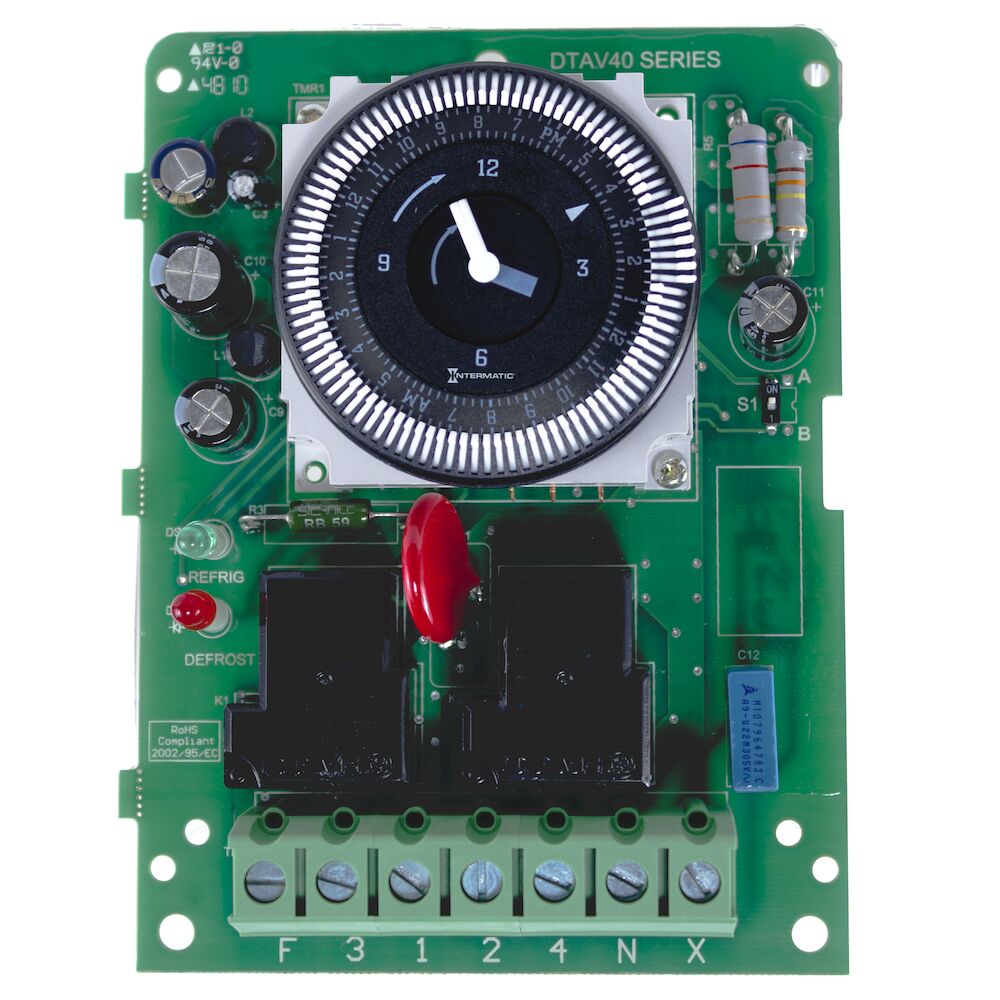

For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temper

$208.96

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Commercial Refrigeration;Walk-in Cooler;Walk-in Freezer

Feature9

Defrost cycles are programmed independently

GTIN

00078275141360

Input Voltage Ranges

120/240 VAC, 60 Hz

Maximum On Off Time

23 hours, 45 min

Mechanism Type

Electromechanical

Minimum On Off Time

15 min

Mounting Options

Bracket

On Off Operations

48

Operating Humidity

0-95% RH, Non-condensing

Switch Type

1 SPDT, 1 NC SPST

UL Certification

cULus

UPC

078275141360

Voltage Selection Type

Auto Voltage

WarrantyPeriod

1-Year limited

Wire Size Max

#8 AWG

Feature8

LED indicators for defrost and refrigeration cycles

Feature7

Moisture resistant conformal-coated board

Feature6

Can mount in an existing enclosure – no tools required for installation

Backup Protection Time

72 Hours

Backup Restoration Time

70 Hours

Backup Type

72-hour Carry-over;Battery;Self-recharging

Battery Service Type

Rechargeable

Battery Type

Li-Ion

Brand

Domestic Intermatic

Clock Drive Type

Quartz

DataSheet

Click Here

Enclosure Type

N/A - Mechanism only

Feature1

Adaptive Defrost upgradeable (DTAV40, DTAV40M only) (See ICUBE)

Feature5

Q model features self-recharging battery backup with 72-hour carry-over

Feature4

Autovoltage automatically adjusts between 120 and 240 VAC

Feature3

40 A, 2 HP Rating

Wiring Option

Screw box lug terminals up to one #8 AWG wire

Feature2

DTAV40 Series replaces over 40 competitive models

Feature10

Real-time clock face for quick, easy and accurate setting

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
