Intermatic

FWZ72B-120U

Intermatic | HM | Hour Meters
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_FWZ72B-120U

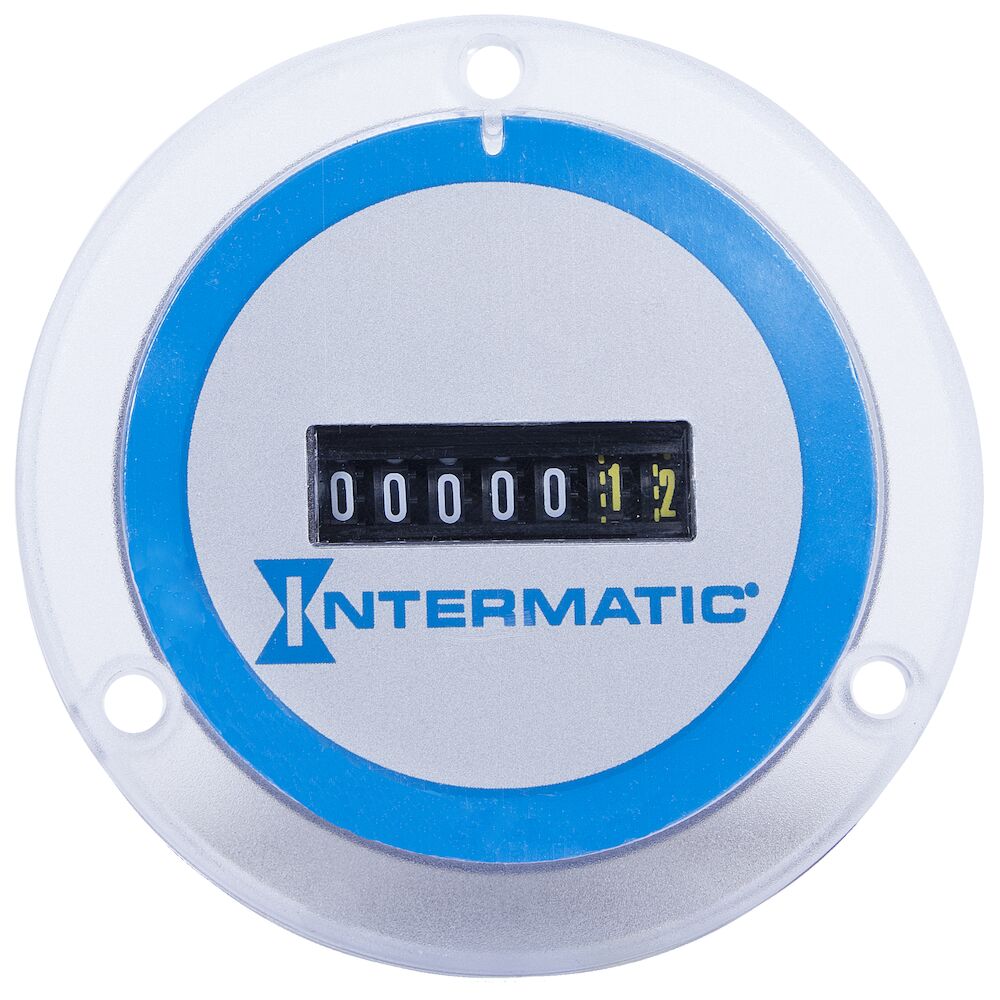

The FWZ Series AC Hour Meters are flush panel mountable designed to fit into tight locations. They are non-resettable and flush panel mounted with watertight/dust-tight sealed bezels designed to withstand IP54 environmental rating (with use of a gasket). All models are black plastic (except FWZ72B which is blue-silver on colorless frosted polycarbonate) with white numerals on a black background. Tenths and hundredths numerals are yellow.

$62.27

Min: 1  Mult: 1

Product Attributes

Brand

Domestic Intermatic

Mounting Description

Flush panel retainer mounted (3) 0.185" holes for #8 screws

Mounting Options

Flush;Panel

Number Of Digital Tenths

2

Number Of Digits Hours

5

Operating Temperature Max F

160

Operating Temperature Min F

-40

Other Certifications

RU;CE

Panel Opening Height In

1

Panel Opening Width In

1.5

Power Consumption Max Va

1

Product Diameter In

2.2

UPC

078275153189

WarrantyPeriod

1-Year limited

Mounting Depth In

2.386

Wiring Option

Combination 1/4" spade and screw clamp;Rear access screw terminals available (Model "K")

Color

Blue and Silver on Frosted Clear

CSA Certification

cCSAus

DataSheet

Click Here

Digits Coloring Hours

White on Black

Digits Coloring Tenths

Yellow on Black

Digits Height In

0.16

GTIN

00078275153189

Hour Meter Capacity

99999.99

Hour Meter Environment Rating

IP54 (With Use of Gasket)

Hour Meter Material

Polycarbonate

Hour Meter Mechanical Movement

Synchronous

Input Voltage Ranges

120 or 240 VAC

Mechanism Type

Electromechanical

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
