Intermatic

WP7003G

Intermatic | WL | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP7003G

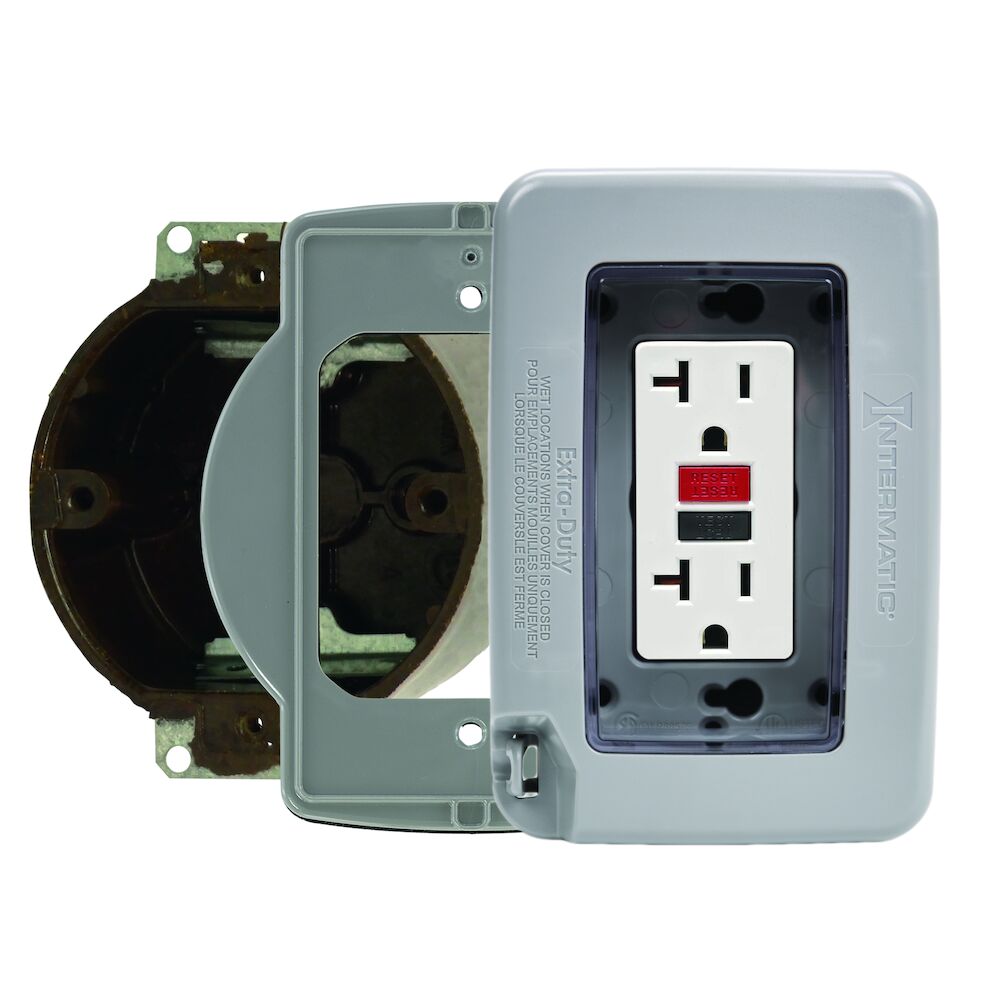

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

$12.80

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

1x16 AWG

Feature8

1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws

Feature9

Lockable hasp: All models accept up to 0.19" dia shank

GTIN

00078275150539

Hinge Direction

Vertical/Horizontal

Impact Rating Lbs

12

Lockable Hasp Max Diameter In

0.019

Number Of Inserts Included

2

UL Certification

cULus

UPC

078275150539

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

UV Stabilized Plastic

Feature7

Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts

Feature6

Meets requirements for cold impact testing: -60° F (-51° C)

Feature5

UL Certified for Type 3R outdoor enclosures

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Clear;Gray

DataSheet

Click Here

Enclosure Type

Outdoor type 3R plastic

Weatherproof Gasket

3mm

Expandable Depth In

2.125

Feature1

Includes 3/0 adapter plate for 3” (76 mm) round box

Feature10

Impact rated: 12 lbf. impact test to ensure cover remains intact

Feature2

100% Paintable surface

Feature3

Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications

Feature4

Exceeds CEC Section 26-702

MFG-Link

Click Here

LifeCycle

Production
