filter--iconPrice List
Intermatic

WP7000G

Intermatic | WL | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP7000G

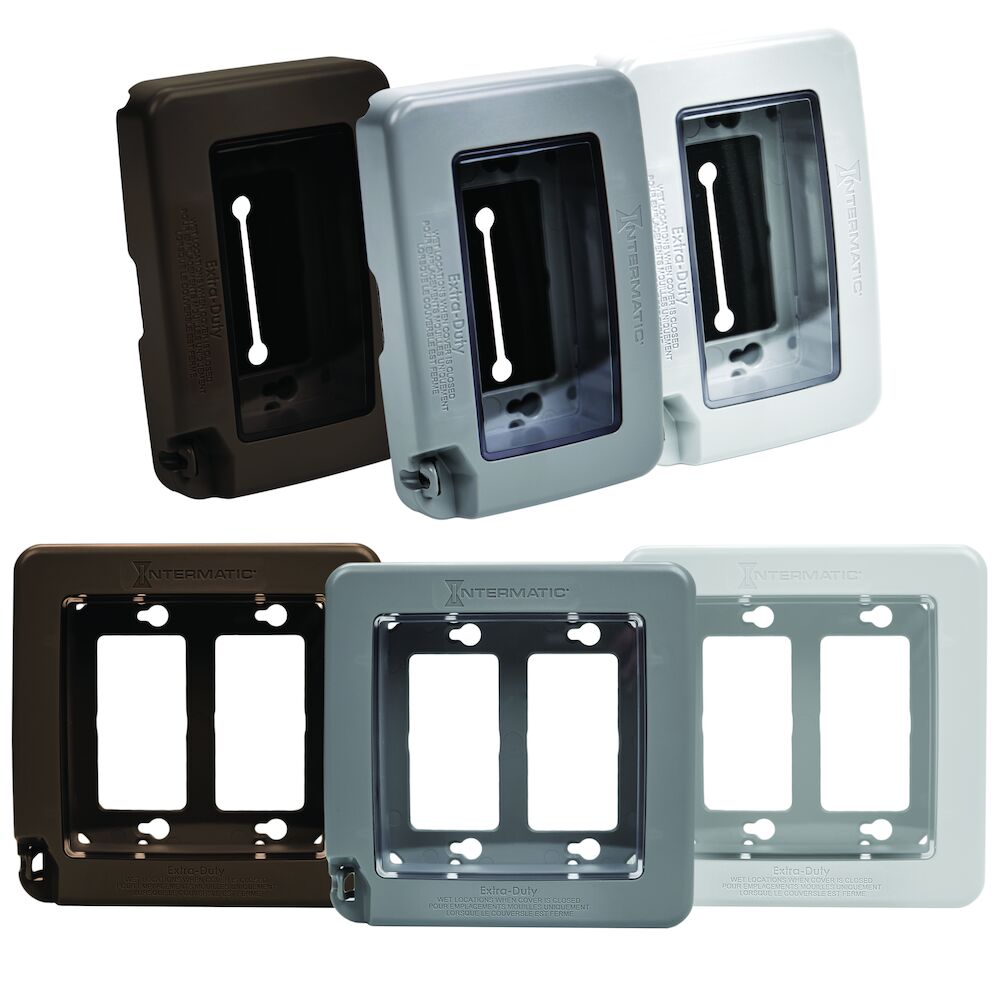

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

$10.54

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

1x16 AWG

Feature8

Lockable hasp: All models accept up to 0.19" dia shank

Feature9

Impact rated: 12 lbf. impact test to ensure cover remains intact

GTIN

00078275149878

Hinge Direction

Vertical/Horizontal

Impact Rating Lbs

12

Lockable Hasp Max Diameter In

0.19

Number Of Inserts Included

2

UL Certification

cULus

UPC

078275149878

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

UV Stabilized Plastic

Feature7

1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws

Feature6

Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts

Feature5

Meets requirements for cold impact testing: -60° F (-51° C)

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Clear;Gray

DataSheet

Click Here

Enclosure Type

Outdoor type 3R plastic

Weatherproof Gasket

3mm

Expandable Depth In

2 1/8

Feature1

100% Paintable surface

Feature10

Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test

Feature2

Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications

Feature3

CEC Article 26-702 Compliant

Feature4

UL Certified for Type 3R outdoor enclosures

MFG-Link

Click Here

LifeCycle

Production

Photo-1

Click Here

Not available at this time.
