Intermatic

WP6000G

Intermatic | WL | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP6000G

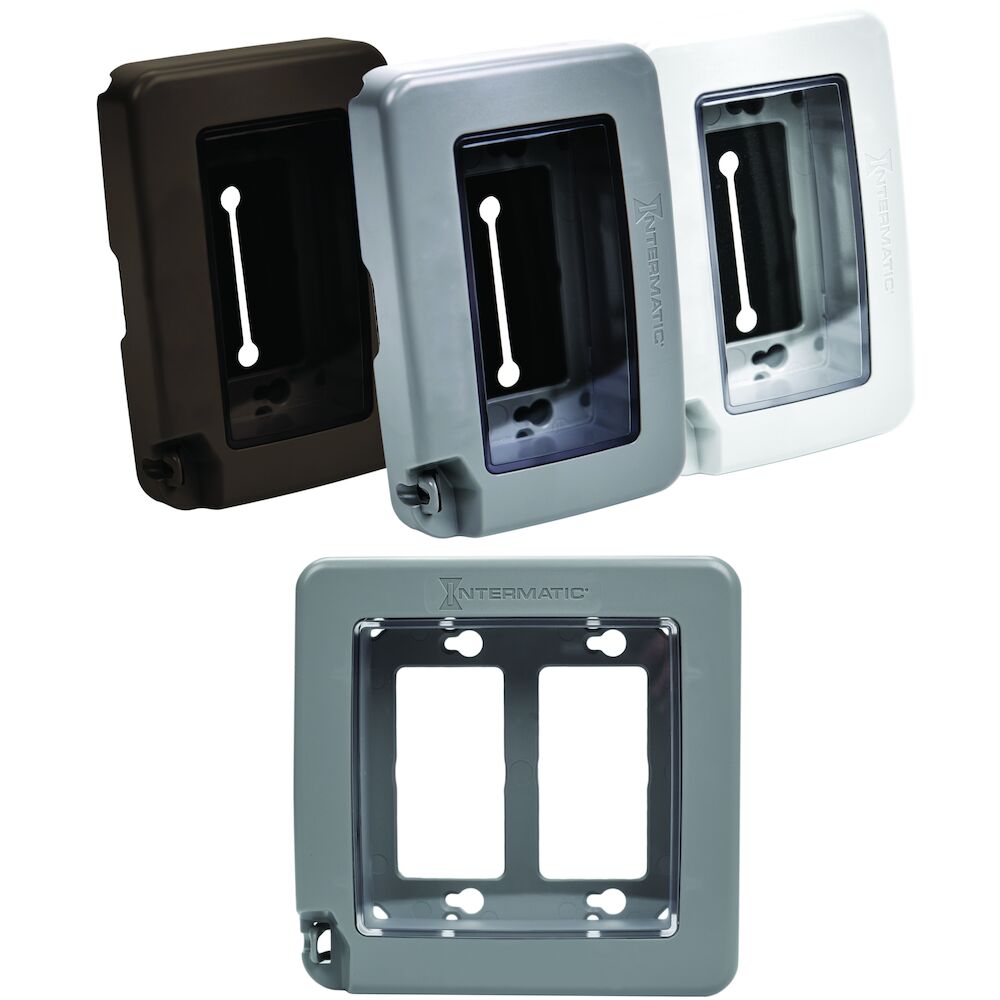

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

$9.26

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

1x16 AWG

Feature8

Impact rated: 12 lbf. impact test to ensure cover remains intact

Feature9

Warranty: 1-year limited

GTIN

00078275149908

Hinge Direction

Vertical/Horizontal

Impact Rating Lbs

12

Lockable Hasp Max Diameter In

0.19

Number Of Inserts Included

2

UL Certification

cULus

UPC

078275149908

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

UV Stabilized Plastic

Feature7

Lockable hasp: All models accept up to 0.19" dia shank

Feature6

1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws

Feature5

Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Clear;Gray

DataSheet

Click Here

Enclosure Type

Outdoor type 3R plastic

Weatherproof Gasket

3mm

Expandable Depth In

2 1/8

Feature1

100% Paintable surface

Feature10

NEW Faster Installation, Pre-Set for GFCI, No insert required

Feature2

Complies with 2020 NEC Article 314.15 for wet locations

Feature3

UL Certified for Type 3R outdoor enclosures

Feature4

Meets requirements for cold impact testing: -60° F (-51° C)

MFG-Link

Click Here

LifeCycle

Production
