Intermatic

WP5103C

Intermatic | WP | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP5103C

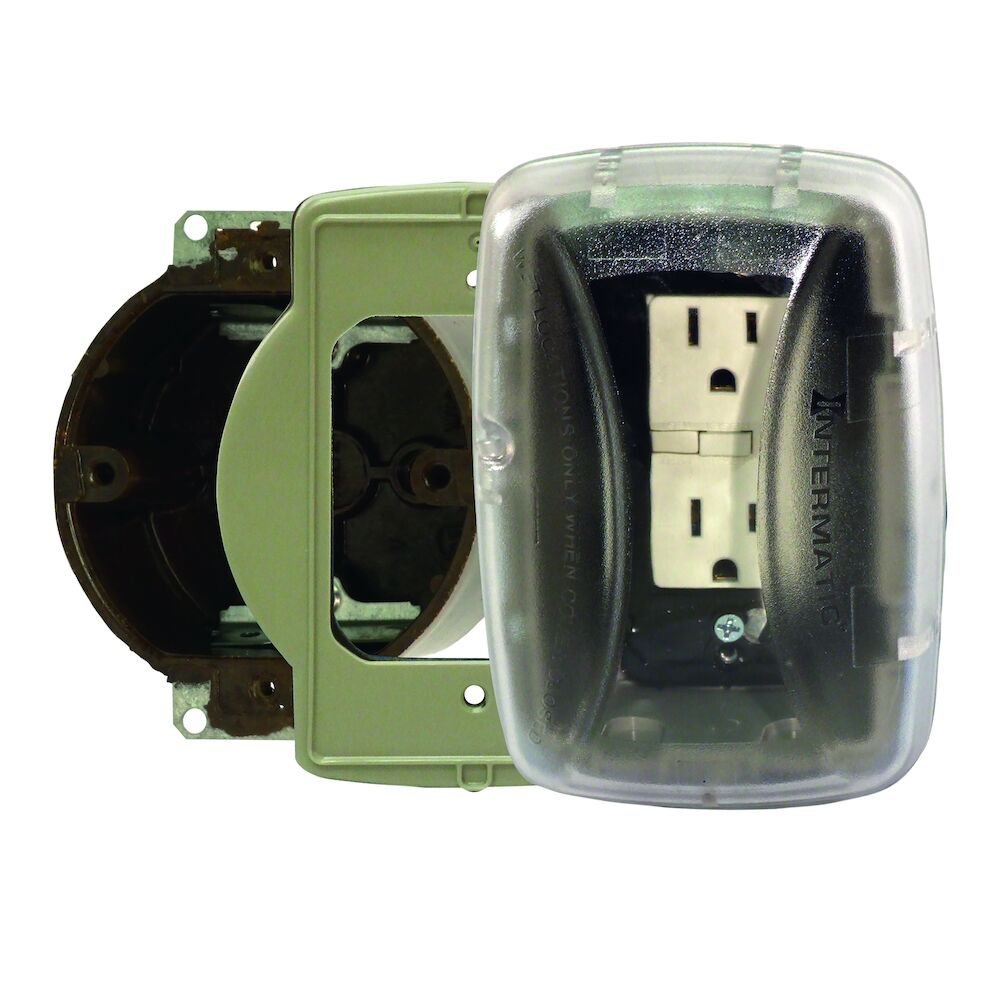

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

$10.56

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

2x14 AWG;1x12 AWG

Feature9

Impact rated: 12 lbf. impact test to ensure cover remains intact

GTIN

00078275147669

Hinge Direction

Vertical/Horizontal

Impact Rating Lbs

12

Insert Types Included

WP17

Lockable Hasp Max Diameter In

1/4

Number Of Inserts Included

3

UL Certification

cULus

UPC

078275147669

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

UV Stabilized Plastic

Feature8

Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank

Feature7

1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws

Feature6

Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Clear;Gray

DataSheet

Click Here

Enclosure Type

Outdoor type 3R plastic

Weatherproof Gasket

3mm

Feature1

Includes 3/0 adapter plate for 3” (76 mm) round box

Feature10

Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test

Feature2

Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications

Feature3

CEC Article 26-702 Compliant

Feature4

UL Certified for Type 3R outdoor enclosures

Feature5

Meets requirements for cold impact testing: -60° F (-51° C)

MFG-Link

Click Here

LifeCycle

Production

Photo-1

Click Here
