Intermatic

WP1220C

Intermatic | WN | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP1220C

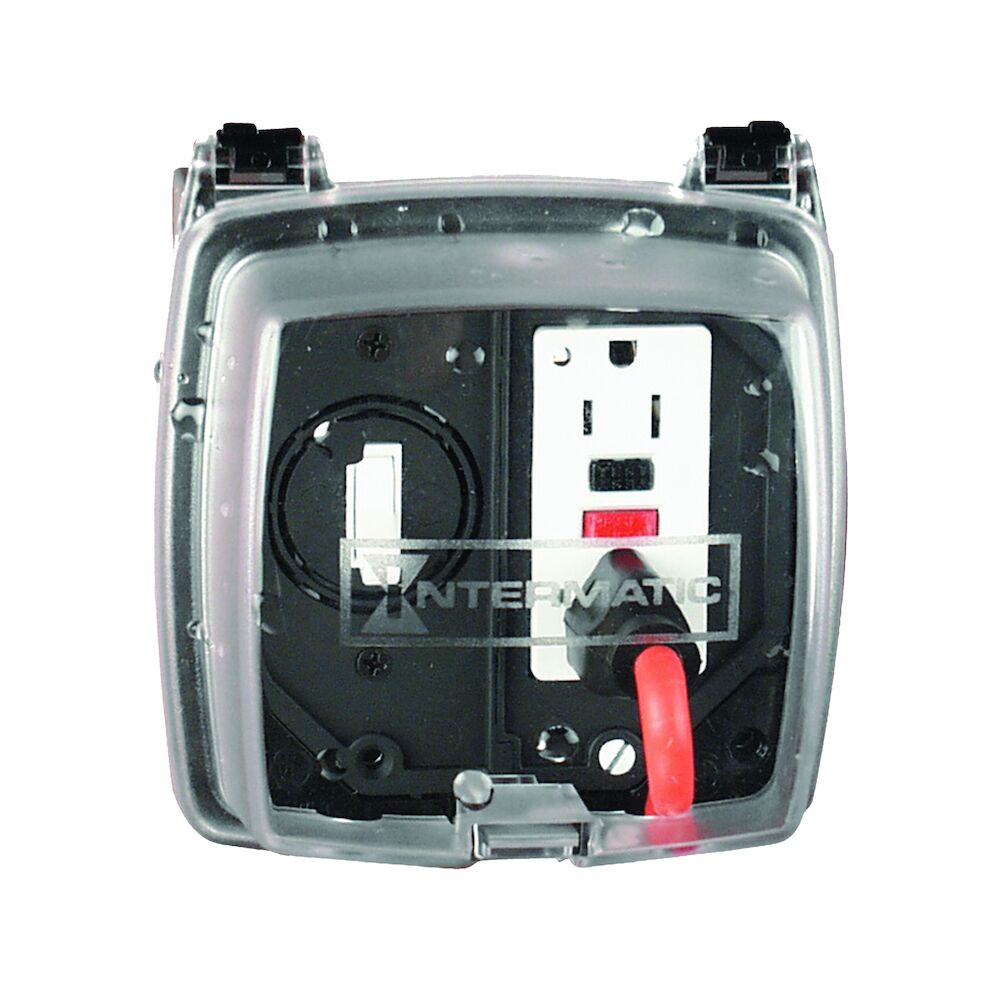

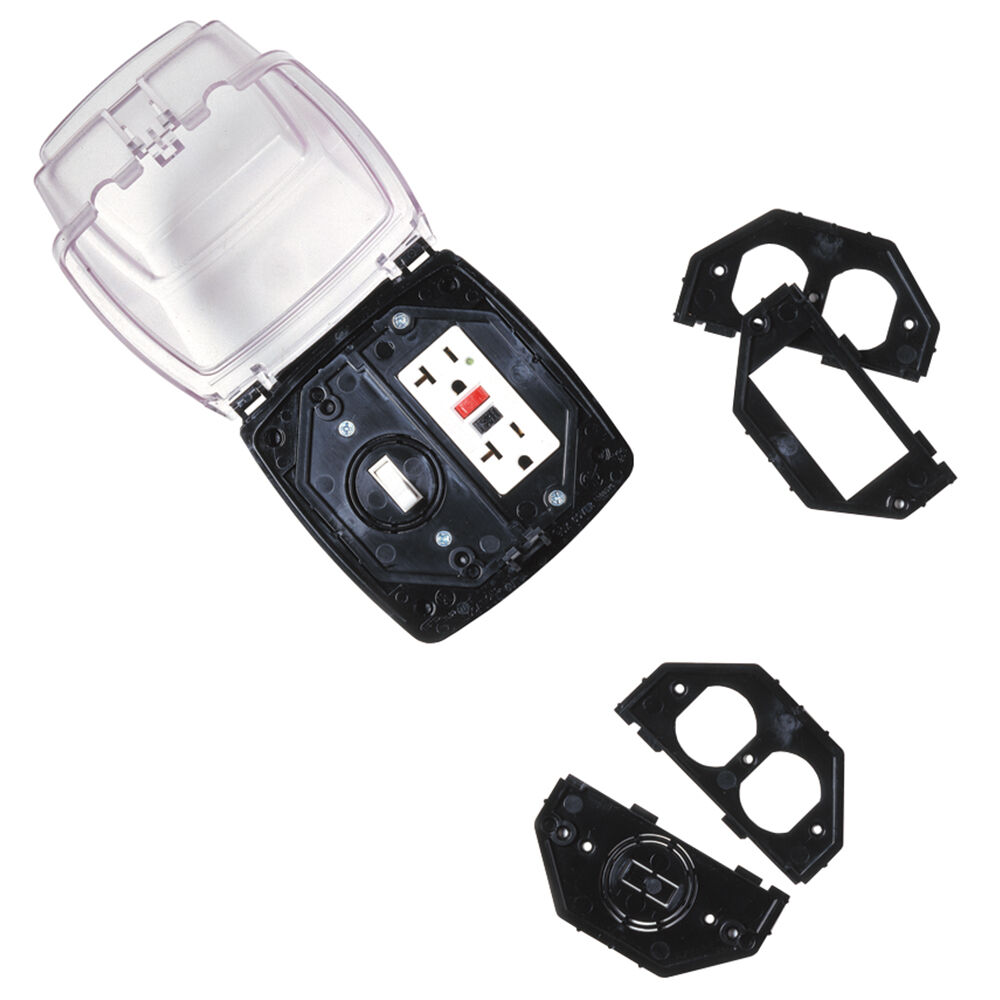

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

$11.51

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

2x14 AWG;1x12 AWG

Feature8

Warranty: 1-year limited

GTIN

00078275072695

Hinge Direction

Vertical

Insert Types Included

WP217

Number Of Inserts Included

6

Photo-2

Click Here

UL Certification

cULus

UPC

078275072695

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

UV Stabilized Plastic

Feature7

Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG

Feature6

Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Clear

DataSheet

Click Here

Enclosure Type

Outdoor type 3R plastic

Feature1

Complies with 2020 NEC Article 314.15 for damp and wet locations

Feature2

UL Certified for Type 3R outdoor enclosures

Feature3

Meets requirements for cold impact testing: -60° F (-51° C)

Feature4

Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts

Feature5

1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws

Weatherproof Gasket

3mm

MFG-Link

Click Here

Photo-1

Click Here

LifeCycle

Production
