Intermatic

WP1050

Intermatic | WN | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP1050

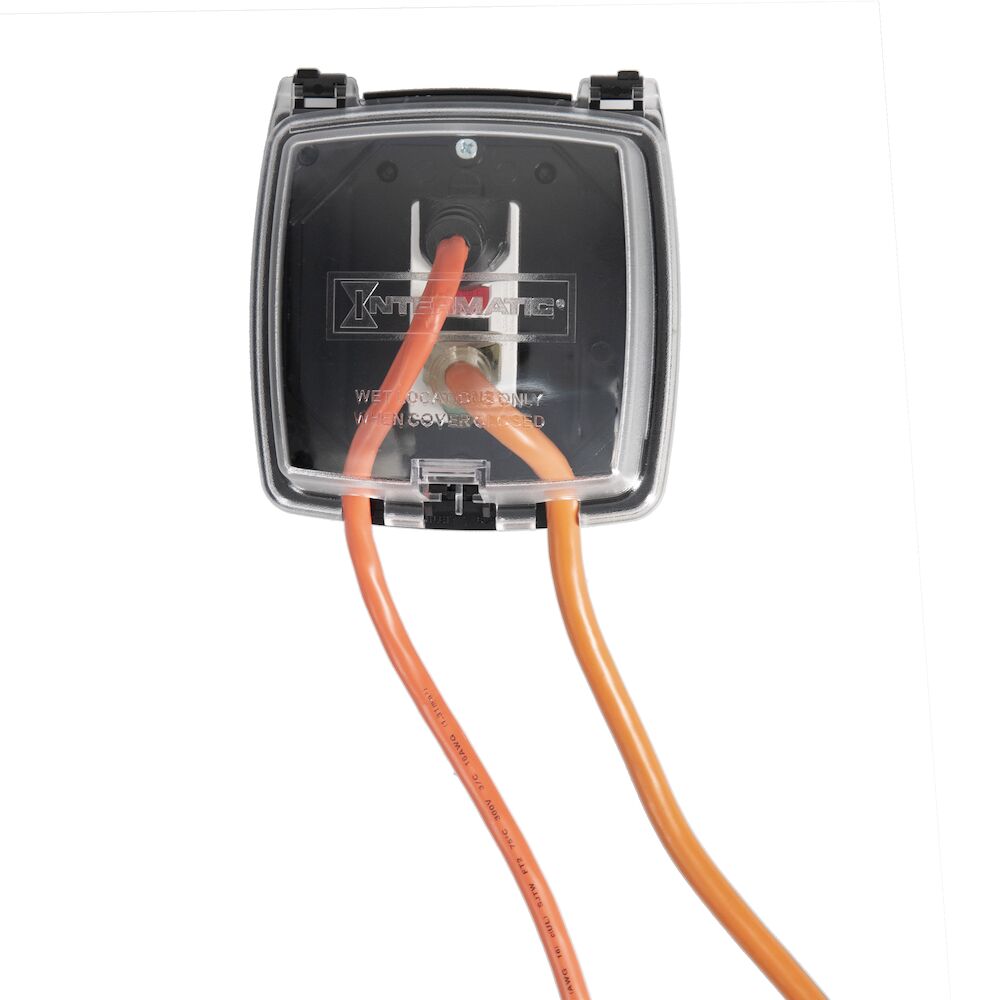

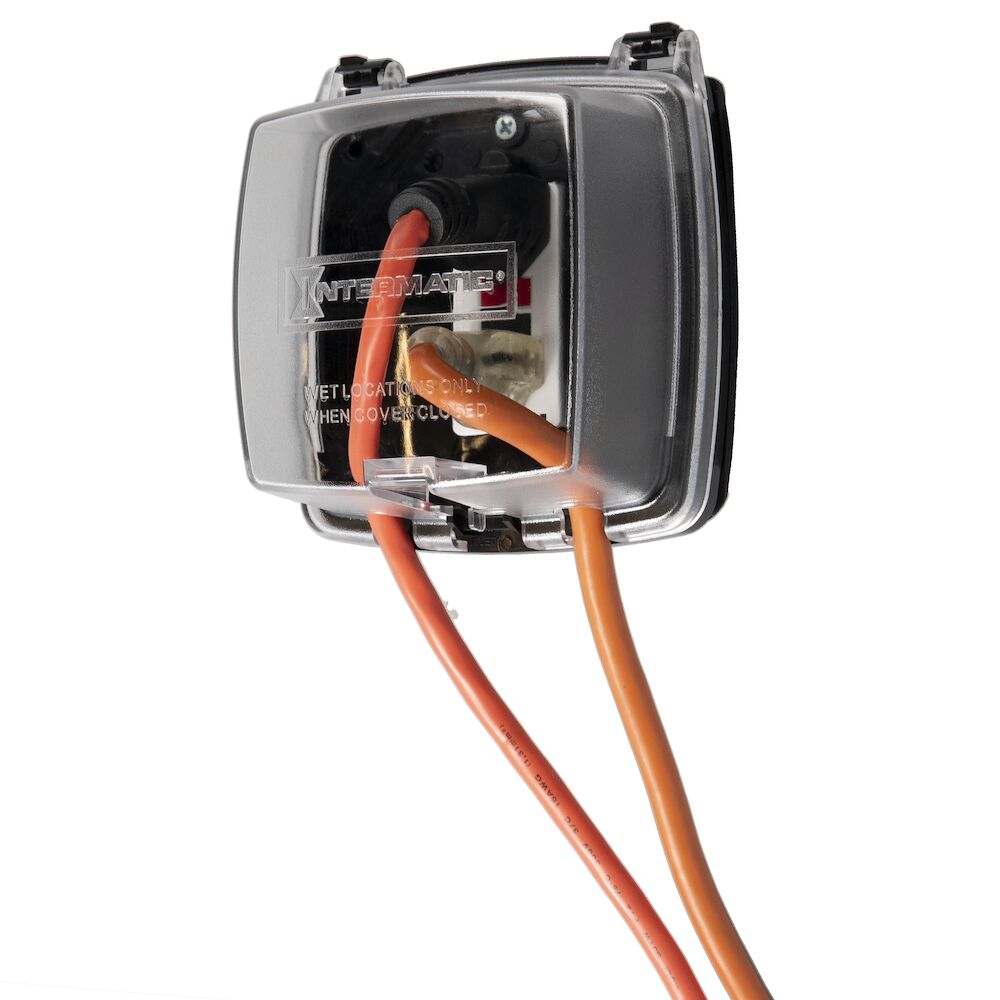

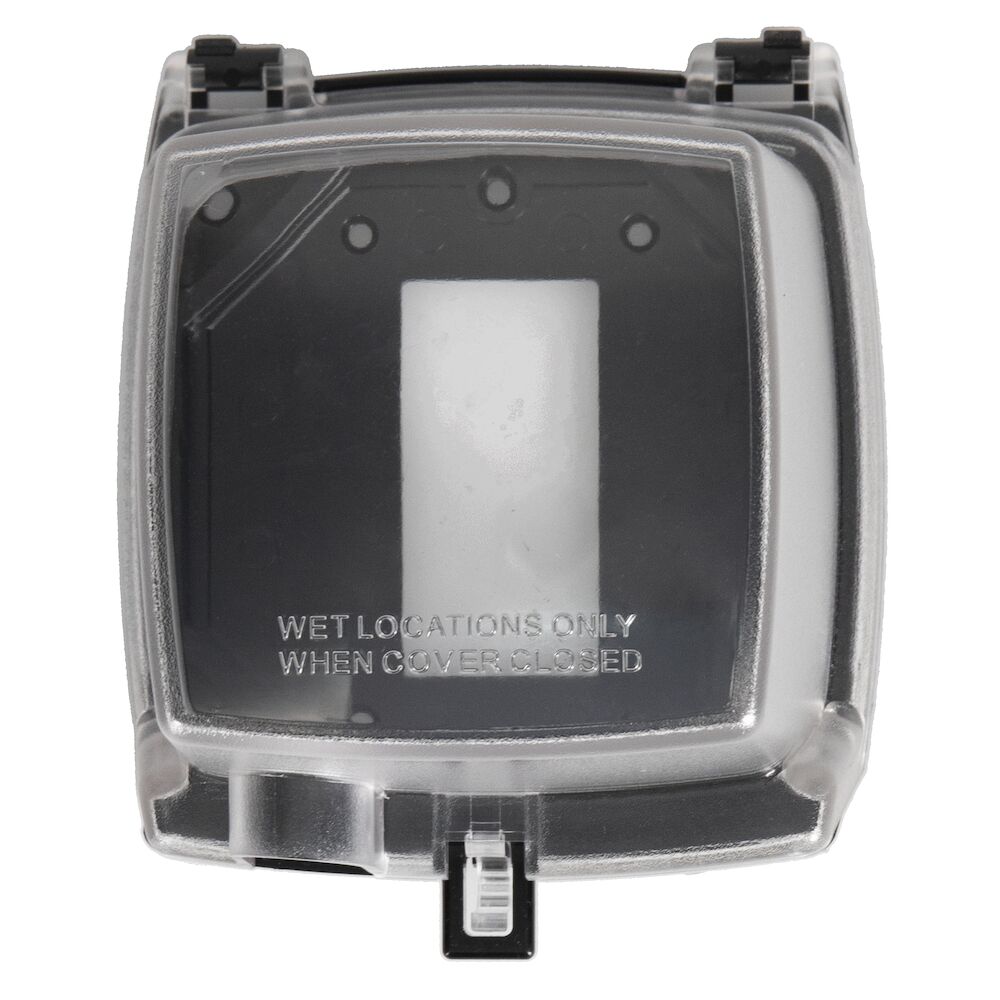

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and 2 inserts to meet the needs of vertical or horizontal single-gang GFCI & Round applications.

$19.39

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

2x14 AWG;1x10 AWG

Feature8

Fits standard square 4” wall boxes with single-gang applications.

Feature9

Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG

GTIN

00078275028135

Hinge Direction

Vertical

Insert Types Included

WP102;WP107

Number Of Inserts Included

2

UL Certification

cULus

UPC

078275028135

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

UV Stabilized Plastic

Feature7

Inserts can be rotated to fit vertical or horizontal applications.

Feature6

WP102 GFCI & WP107 Round single-gang application inserts included.

Feature5

1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Clear

DataSheet

Click Here

Enclosure Type

Outdoor type 3R plastic

Weatherproof Gasket

3mm

Feature1

Complies with 2020 NEC Article 314.15 for damp and wet locations

Feature4

Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts

Feature3

Meets requirements for cold impact testing: -60° F (-51° C)

Feature2

UL Certified for Type 3R outdoor enclosures

Feature10

Warranty: 1-year limited

MFG-Link

Click Here

Photo-3

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
