filter--iconPrice List
Intermatic

WP1030MXD

Intermatic | WD | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_WP1030MXD

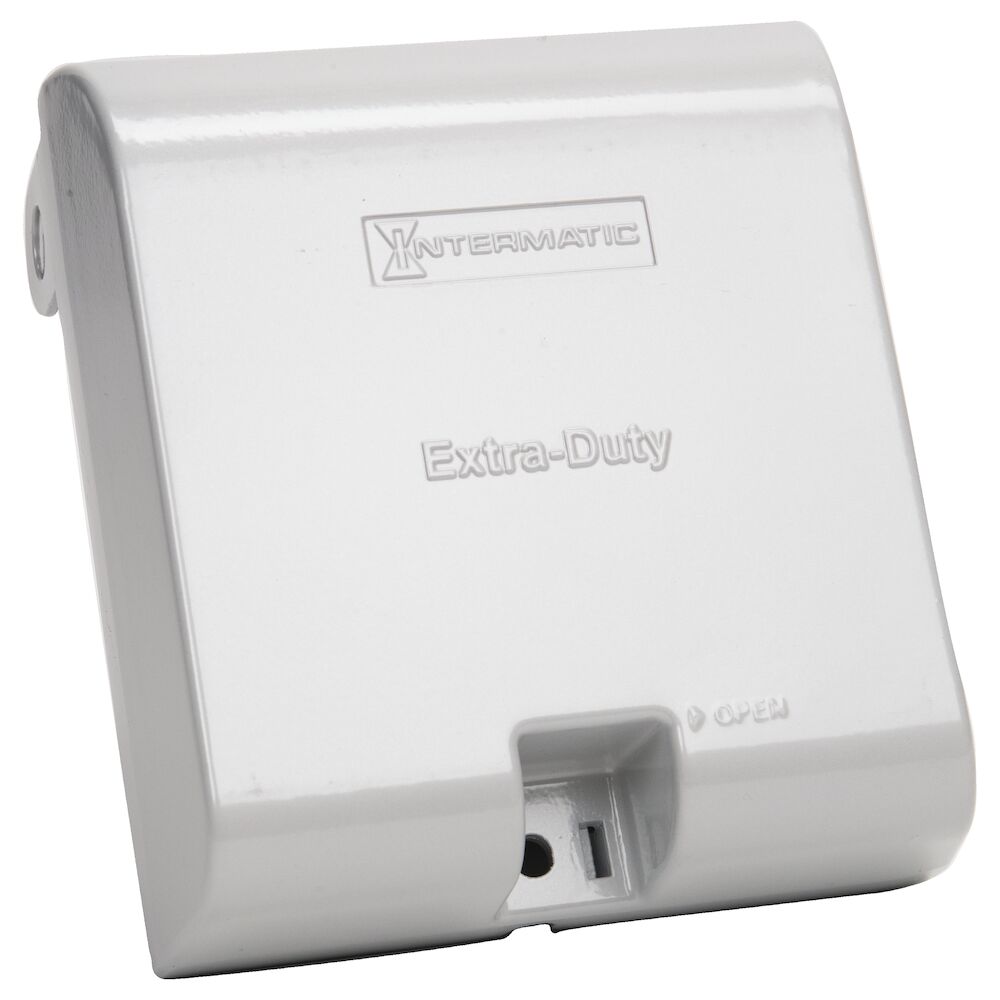

Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

$23.08

Min: 1  Mult: 1

Product Attributes

Accepted Cord Size Max

2x12 AWG

Feature9

Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test

GTIN

00078275130142

Hinge Direction

Vertical

Impact Rating Lbs

12

Insert Types Included

WP217

Lockable Hasp Max Diameter In

1/4

Number Of Inserts Included

6

UL Certification

cULus

UPC

078275130142

WarrantyPeriod

1-Year limited

Weatherproof Cover Material

Die-Cast Aluminum

Feature8

Impact rated: 12 lbf. impact test to ensure cover remains intact

Feature7

Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank

Feature6

1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws

Brand

Intermatic

Cold Impact Testing Temperature F

-60

Color

Gray

DataSheet

Click Here

Enclosure Type

Outdoor type 3R metal

Weatherproof Gasket

3mm

Feature1

Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications

Feature10

Warranty: 1-year limited

Feature2

CEC Article 26-702 Compliant

Feature3

UL Certified for Type 3R outdoor enclosures

Feature4

Meets requirements for cold impact testing: -60° F (-51° C)

Feature5

Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts

MFG-Link

Click Here

LifeCycle

Production

Photo-1

Click Here

Photo-2

Click Here

Not available at this time.
