Factory Lead Time: TBD
RoHs Compliant
2x14 AWG;1x12 AWG
Fits standard square 4†wall boxes with single-gang applications.
Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
00078275003224
Vertical
WP101;WP102
2
cULus
078275003224
1-Year limited
UV Stabilized Plastic

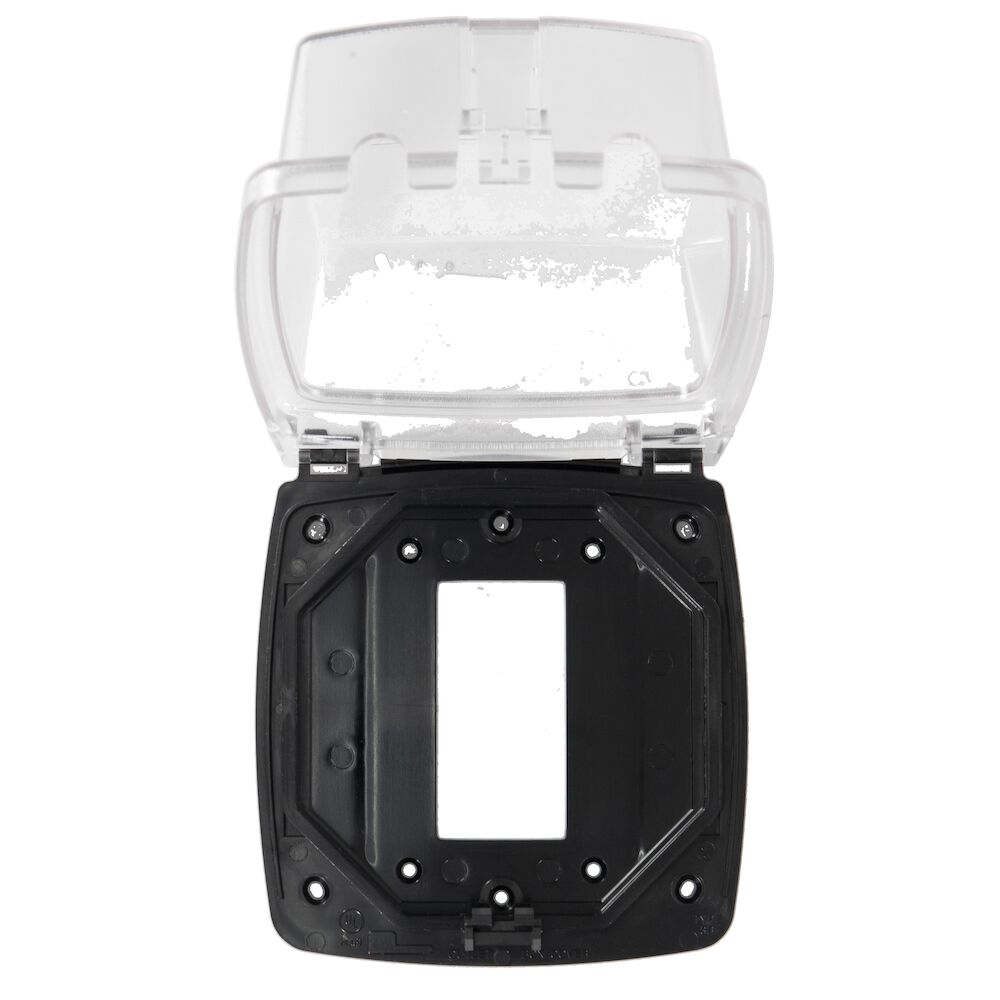

Inserts can be rotated to fit vertical or horizontal applications.
WP101 Duplex & WP102 GFCIÂ single-gang application inserts included.
1â„8" (3 mm) thick neoprene gasket with slits for mounting screws
Intermatic
-60
Clear
3mm
Outdoor type 3R plastic

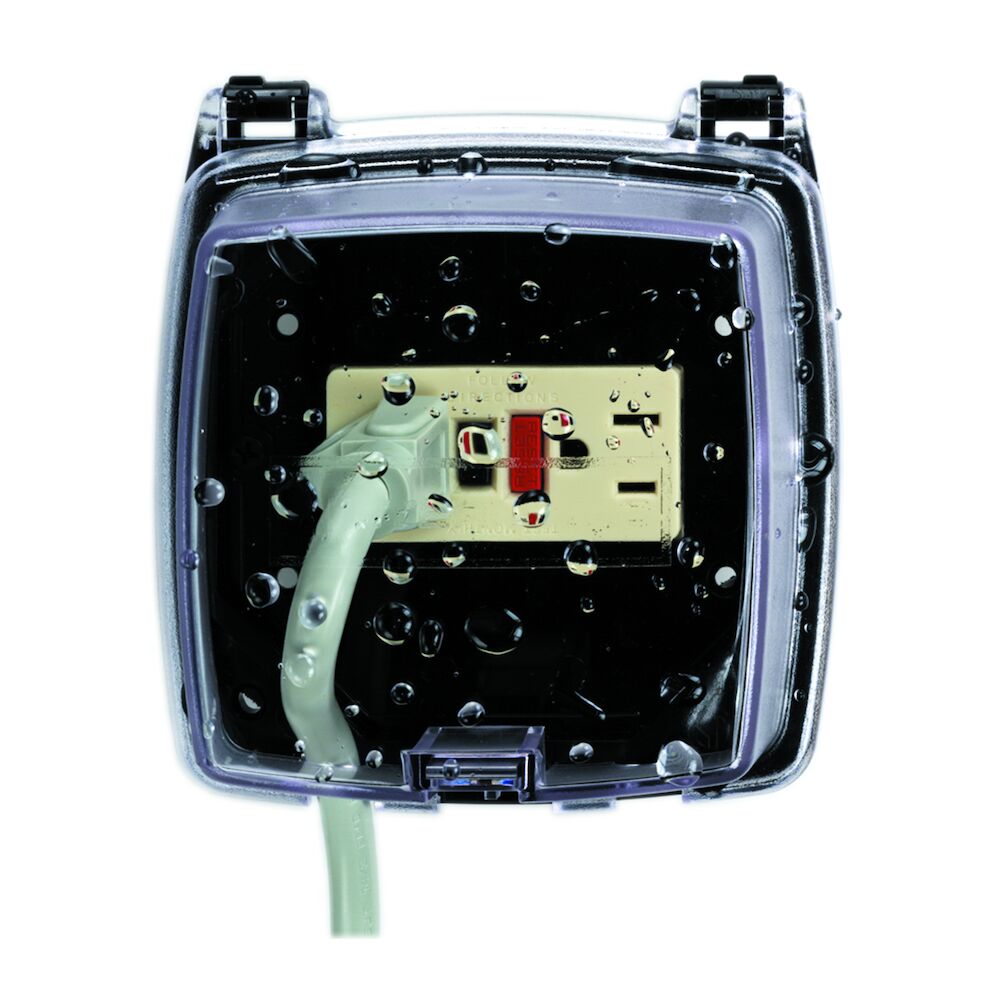

Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
Complies with 2020 NEC Article 314.15 for damp and wet locations
Meets requirements for cold impact testing: -60° F (-51° C)
UL Certified for Type 3R outdoor enclosures
Warranty: 1-year limited
Production
Not available at this time.
Price List
document_IMATC_WP1020C
