filter--iconPrice List
Intermatic

T104-20

Intermatic | WH | Accessories
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
document_IMATC_T104-20

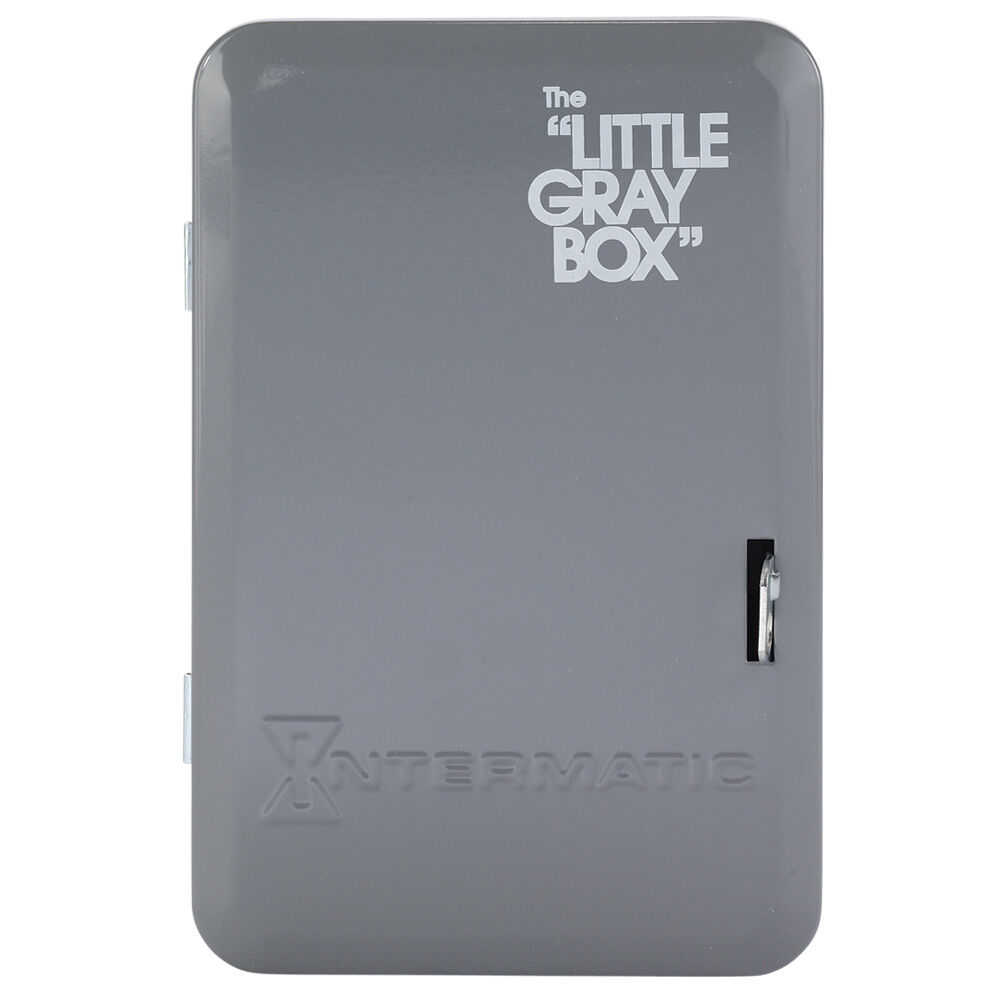

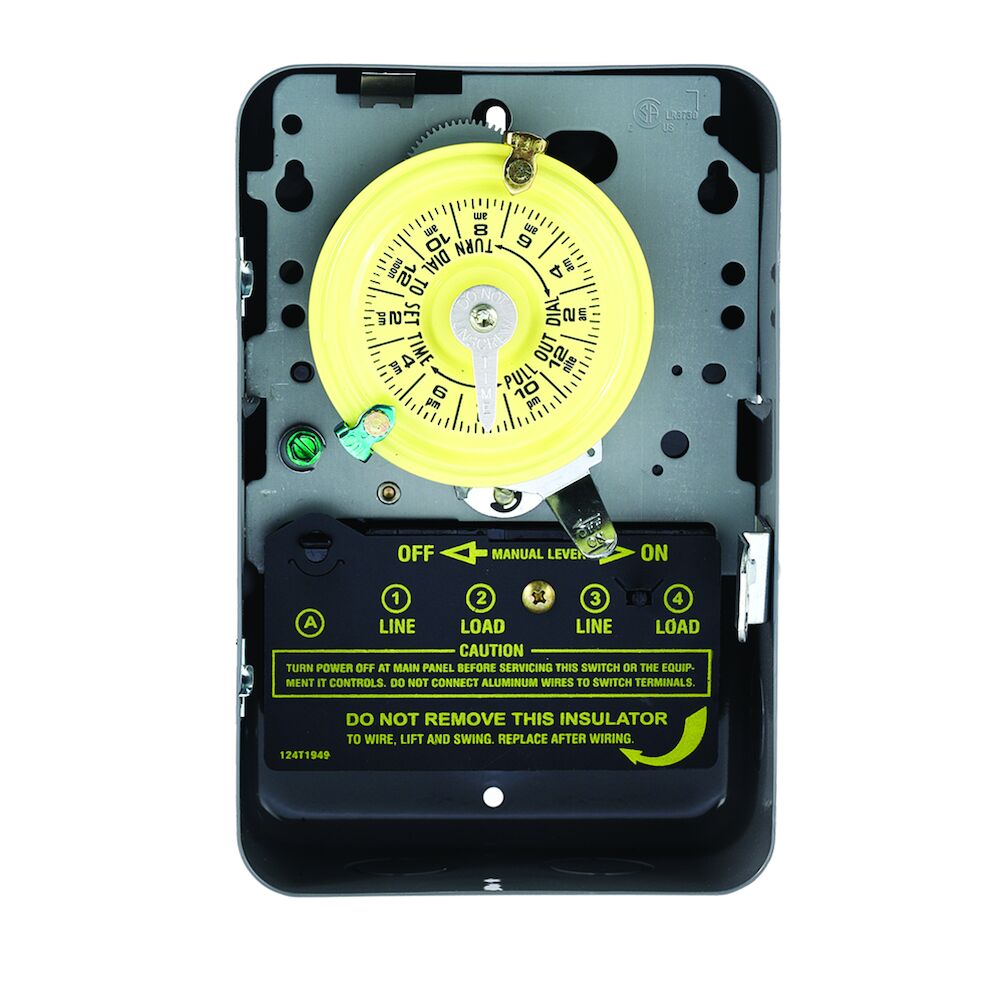

With the easy-to-set "Yellow Dial," these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.

$93.84

Min: 1  Mult: 1

Product Attributes

Application Compatibilities

Electric Water Heater

Number Of Circuits

1

Operating Temperature Max F

130

Operating Temperature Min F

-40

Operation Mode

24 hour

Power Consumption Max W

3 W

Switch Type

DPST

Timing Interval

1 hr

UL Certification

cULus

UPC

078275000131

WarrantyPeriod

1-Year limited

Wire Size Max

#8 AWG

Wire Size Min

#14 AWG

Minimum On Off Time

1 hour

Wiring Option

Terminals

Brand

Intermatic

CSA Certification

cCSAus

DataSheet

Click Here

Enclosure Type

Indoor type 1 metal

Feature1

Two sets of ON/OFF trippers

Feature2

Enables shifting electricity use into off-peak hours to reduce energy costs

Feature3

Convenient external override switch

Feature4

Up to 12 ON/12 OFF events

GTIN

00078275000131

Input Voltage Ranges

208-277 VAC, 60 Hz

Maximum On Off Operations

12

Mechanism Type

Analog/Mechanical

MFG-Link

Click Here

Photo-2

Click Here

Photo-1

Click Here

LifeCycle

Production

Not available at this time.
