MEO-96PD-04-583

ICC | Hawk-STOCK | Microphone
green-check-icon Total Stock: 300
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant

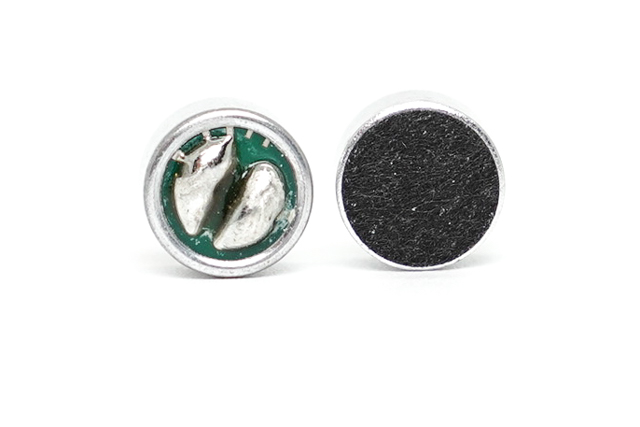

Electret Condenser Microphone

$0.3684

Min: 1  Mult: 1

Product Attributes

Packaging

Box

FRAME DEPTH

6.7 mm

FRAME DIAMETER

9.7 mm

TERMINAL TYPE

Pads

S/N RATIO

>40 dB

SENSITIVITY (0DB=1 v/u Bar)

-58 dB

SENSITIVITY FORMULA

0dB=V/µbar,1KHz +3 dB

SENSITIVITY REDUCTION

within -3dB@ 3V

STANDARD OPERATING VOLTAGE

4.5 VDC

Rohs Status

RoHS3 Compliant

Reach

Reach Upon Request

DIRECTIVITY

OMNIDIRECTIONAL

OUTPUT IMPEDANCE

2.2 K Ohms

MAX OPERATING VOLTAGE

10 VDC

MAX CURRENT CONSUMTION

0.8 mA

IMPEDANCE

LOW

FREQUENCY RESPONSE

20 ~ 16,000 Hz

TOLERANCE

± 3 dB

Outer Pack Qty

5000
