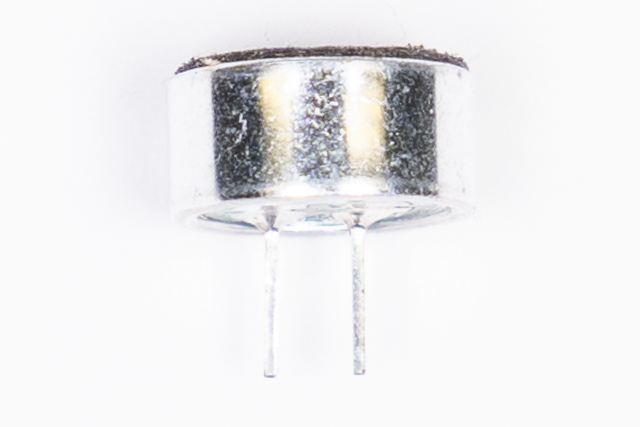

MEO-94PN-01-643

ICC | Microphone
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant
MICRO ELEC MINI OMNIDIRECTIONA

$0.367

Min: 100  Mult: 100

Product Attributes

Packaging

Box

FRAME DEPTH

4.5 mm

FRAME DIAMETER

9.7 mm

TERMINAL TYPE

2 Pins

DIRECTIVITY

OMNIDIRECTIONAL

S/N RATIO

>40 dB

SENSITIVITY (0DB=1 v/u Bar)

-64 dB

SENSITIVITY FORMULA

0dB=V/µbar,1KHz +3 dB

SENSITIVITY REDUCTION

within -3dB@ 1.1V

STANDARD OPERATING VOLTAGE

1.5 VDC

Rohs Status

RoHS3 Compliant

Reach

Reach Upon Request

PIN SPECIFICATIONS

4.5 / 2.0 / 2.5

OUTPUT IMPEDANCE

2.2 K Ohms

MAX OPERATING VOLTAGE

10 VDC

MAX CURRENT CONSUMTION

0.3 mA

IMPEDANCE

LOW

FREQUENCY RESPONSE

20 ~ 16,000 Hz

TOLERANCE

± 3 dB

Outer Pack Qty

5000
