Price List
BS2620PH-12-C
Total Stock: 75
Factory Lead Time: 120
RoHs Compliant

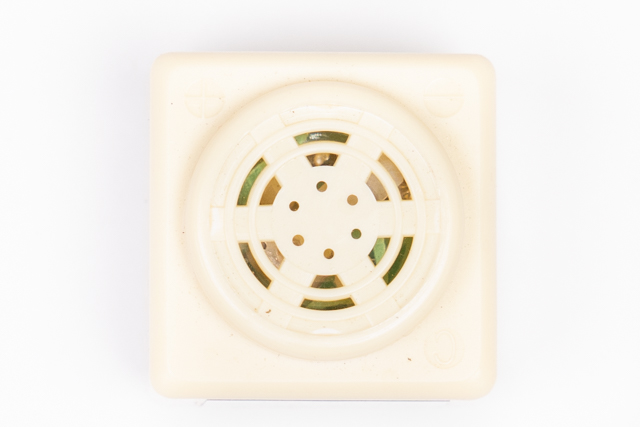

Electronic Buzzer, 12 vdc
Hawk Electronics
Total Stock: 75
Factory Lead Time: 120
RoHs Compliant
Product Attributes
Tariff 301
This item is currently subject to a tariff of 25%
Packaging
Tray
RATED VOLTAGE
12 vdc
OPERATING VOLTAGE
8 ~ 16 vdc
OPERATING TEMPERATURE
-20 TO +60°C
MOUNTING DIMENSIONS
19.0 x 9.5 mm
MAX CURRENT
50 mA
TERMINAL TYPE
4 Pins
FRAME DIAMETER
26.0 x 26.0 mm
FRAME DEPTH
19.7 mm
SOUND LEVEL OUTPUT
75dB @ 100 cm
RESONANT FREQUENCY
400 ± 100 Hz
Rohs Status
RoHS3 Compliant
Reach
Reach Upon Request
CIRCUIT
WITH CIRCUIT
TONE MODE
CONTINUOUS
Outer Pack Qty
360
Series Attributes
Not available at this time.
