BS2316P-24-C-B
Total Stock: 64
Factory Lead Time: 120
RoHs Compliant

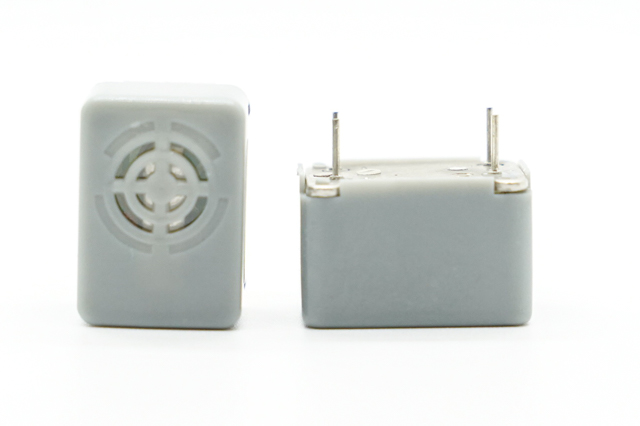

Electronic Buzzer, 24 vdc
Hawk Electronics
Total Stock: 64
Factory Lead Time: 120
RoHs Compliant
Product Attributes
Tariff 301
This item is currently subject to a tariff of 25%
Packaging
Tray
RATED VOLTAGE
24 vdc
OPERATING VOLTAGE
18 ~ 30 vdc
OPERATING TEMPERATURE
-20 TO + 70°C
MOUNTING DIMENSIONS
15.24 x 7.6 mm
MAX CURRENT
30 mA
TERMINAL TYPE
4 Pins
FRAME DIAMETER
22.5 x 16.0 mm
FRAME DEPTH
14.6 mm
SOUND LEVEL OUTPUT
70dB @ 30 cm
RESONANT FREQUENCY
400 ± 100 Hz
Rohs Status
RoHS3 Compliant
Reach
Reach Upon Request
CIRCUIT
WITH CIRCUIT
TONE MODE
CONTINUOUS
Outer Pack Qty
2000
Series Attributes
Not available at this time.
