Price List
BRP4222T-24-C
Total Stock: 100
Factory Lead Time: 120
RoHs Compliant

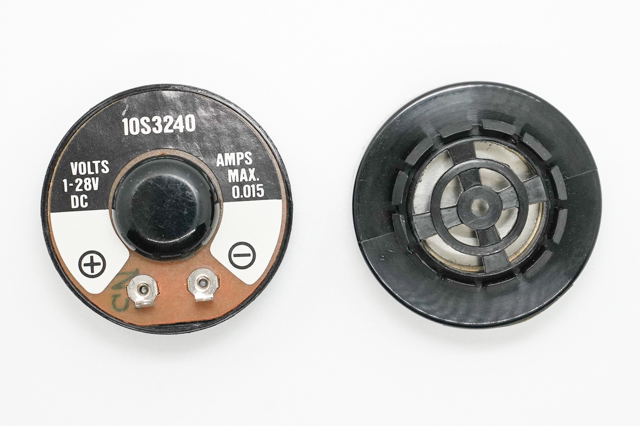

Piezo alarm, 24 vdc with circuit
Hawk Electronics
Total Stock: 100
Factory Lead Time: 120
RoHs Compliant
Product Attributes
Tariff 301
This item is currently subject to a tariff of 25%
Packaging
Tray
RATED VOLTAGE
24 vdc
OPERATING VOLTAGE
1 ~ 28 vdc
OPERATING TEMPERATURE
-20 TO +60°C
MOUNTING DIMENSIONS
10.0 mm
MAX CURRENT
15 mA
TERMINAL TYPE
2 Plates
FRAME DIAMETER
42.0 mm
FRAME DEPTH
20.5 mm
SOUND LEVEL OUTPUT
85dB @ 30 cm
RESONANT FREQUENCY
2900 ± 500 Hz
Rohs Status
RoHS3 Compliant
Reach
Reach Upon Request
CIRCUIT
WITH CIRCUIT
TONE MODE
CONTINUOUS
Outer Pack Qty
2000
Series Attributes
Not available at this time.
