Price List

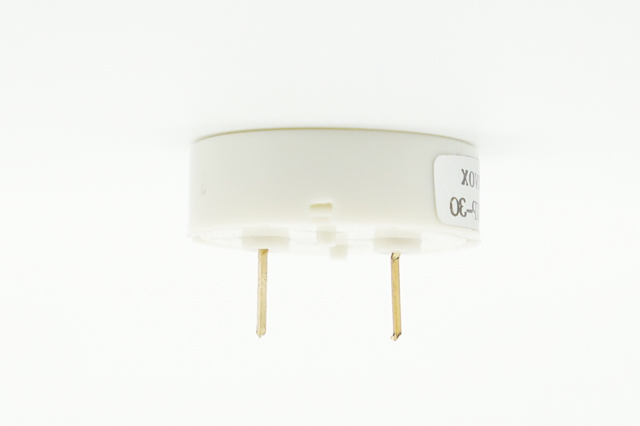

BRP2207P-30
Total Stock: 100
Factory Lead Time: 120
RoHs Compliant
Piezo transducer, external drive
Hawk Electronics
Total Stock: 100
Factory Lead Time: 120
RoHs Compliant
Product Attributes
Tariff 301
This item is currently subject to a tariff of 25%
Packaging
Tray
RATED VOLTAGE
30 Vp-p
OPERATING VOLTAGE
1 ~ 30 Vp-p
OPERATING TEMPERATURE
-40 TO +120°C
MOUNTING DIMENSIONS
10.0 mm
FRAME DIAMETER
22.0 mm
TERMINAL TYPE
2 Pins
FRAME DEPTH
7.0 mm
SOUND LEVEL OUTPUT
95dB @ 30 cm
ELECTROSTATIC CAPACITY
12000 pF ± 30%
RESONANT FREQUENCY
4000 ± 500 Hz
Rohs Status
RoHS3 Compliant
Reach
Reach Upon Request
CIRCUIT
Without Circuit
TONE MODE
CONTINUOUS
Outer Pack Qty
2000
Series Attributes
Not available at this time.
