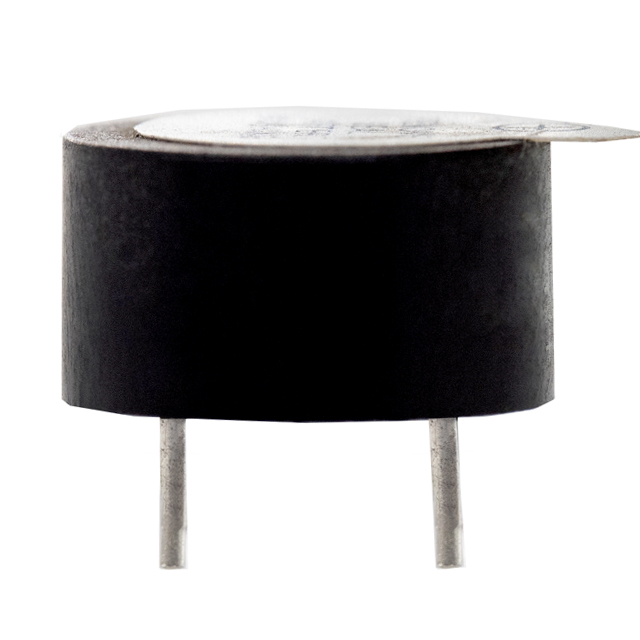

BRP1408P-12-CS

ICC | Buzzers
green-check-icon Total Stock: 550
blue-timer-icon Drop Ship Quantity: 550
yellow-timer-icon Factory Lead Time: 60
onlycheckmark RoHs Compliant
Piezo Alarm w/internal circuit

$1.27

Min: 100  Mult: 100

Product Attributes

Tariff 301

This item is currently subject to a tariff of 25%

Packaging

Tray

RATED VOLTAGE

12 vdc

OPERATING VOLTAGE

3 ~ 16 vdc

OPERATING TEMPERATURE

-40 TO +85°C

MOUNTING DIMENSIONS

7.6 mm

MAX CURRENT

7 mA

TERMINAL TYPE

2 Pins

FRAME DIAMETER

13.8 mm

FRAME DEPTH

7.5 mm

SOUND LEVEL OUTPUT

80dB @ 10 cm

RESONANT FREQUENCY

4000 ± 500 Hz

Rohs Status

RoHS3 Compliant

Reach

Reach Upon Request

CIRCUIT

WITH CIRCUIT

TONE MODE

CONTINUOUS

Outer Pack Qty

5000

Not available at this time.
