M8537

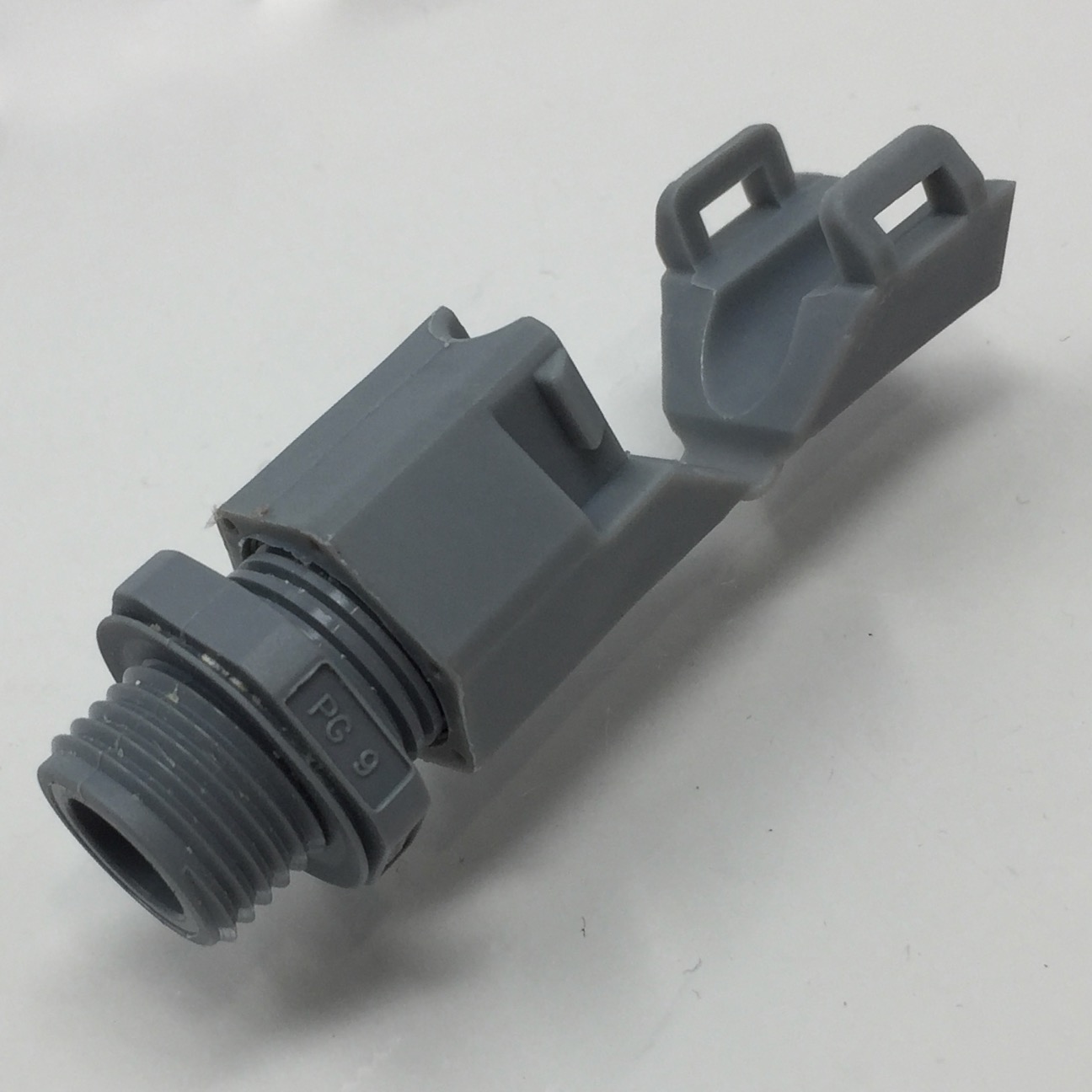

Heyco | RA-NPT-CG-Nylon | Nylon Cord Grip
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
RA-NPT-CG-Nylon
Heyco Grey Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.105 - .315) and Mounting Hole dia. 0.599. Thread style ? NPT. { LTCG 9 90 }

$2.37

Min: 100  Mult: 100

Product Attributes

NEMA Ratings

NEMA 4. 4X. 6 and 6P

Cable Dia Range (in)

(.105 - .315)

Cable Dia Range (mm)

(2.7 - 8.0)

Color

Grey

Orientation

Right Angle

Temperature Range

-20C to + 100C

Thread Type

NPT

Min Cable OD (In)

.105

Max Cable OD (In)

.315

IP Rating

IP 68 (70 PSI. 5 BAR)

Overall Length (mm)

44.9

Overall Length (In)

1.77

Mounting Hole Dia (mm)

15.2

Mounting Hole Dia (In)

0.599

Alternate PN

LTCG 9 90

Thread Length (mm)

8.1

Thread Length (In)

0.32

Right Angle Height (mm)

22.3

Right Angle Height (In)

0.88

Nut Flat Dim (mm)

20.8

Nut Flat Dim (In)

0.82

Material

Nylon 6/6 w/Buna N or TPE Sealing Gland

Flammability Rating

94V-2
