M4516

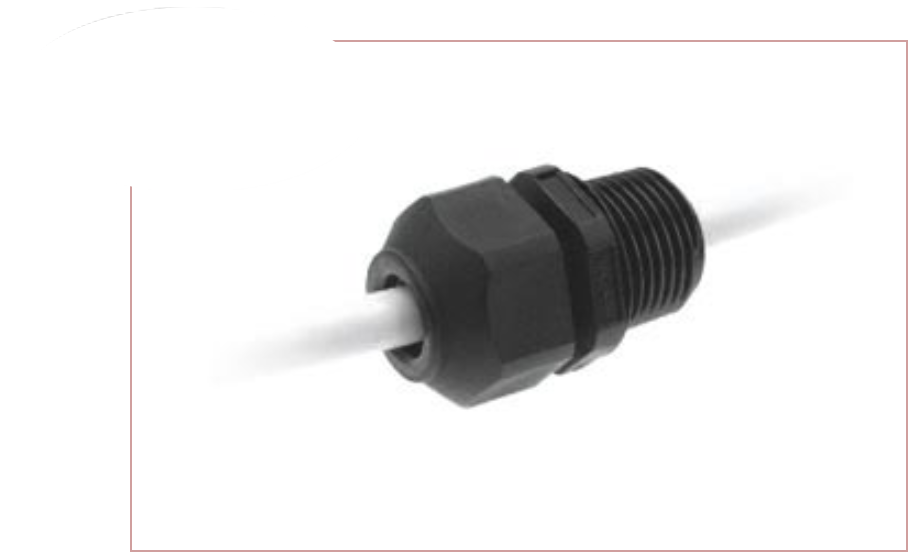

Heyco | ST-NPT-ISR | Nylon Cord Grip
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
ST-NPT-ISR
Heyco IP68 Black Nylon Straight-Thru Cord grip for Cable OD range (0.115 x 0.250) with integral sealing ring. NEMA 4, 4X, 6 and 6P

$0.615

Min: 500  Mult: 2000

Product Attributes

Cable Dia Range (In)

(0.115 x 0.250)

Cable Dia Range (mm)

(2.9 x 6.4)

NEMA Ratings

NEMA 4, 4X, 6 and 6P

Min Cable Dia. (mm)

2.9

Max Cable Dia. (mm)

6.4

Max Cable Dia. (In)

0.250

IP Rating

IP 68

Orientation

Straight-Thru

Temperature Range

-20C to + 100C

Min Cable Dia. (In)

0.115

Nut Flat Width (In)

0.63

Nut Flat Width (mm)

16.0

Max Length (mm)

32.8

Max Length (in)

1.29

Hole Dia. (mm)

13.7

Hole Dia. (In)

0.540

Color

Black

Thread Length (In)

0.45

Thread Length (mm)

11.4

Nut Thickness (mm)

5.3

Nut Thickness (In)

0.21

Material

Nylon 6/6 w/Buna N or TPE Sealing Gland

Flammability Rating

94V-2
