Heyco | STPT-M-CG-Nylon | Nylon Cord Grip
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
STPT-M-CG-Nylon

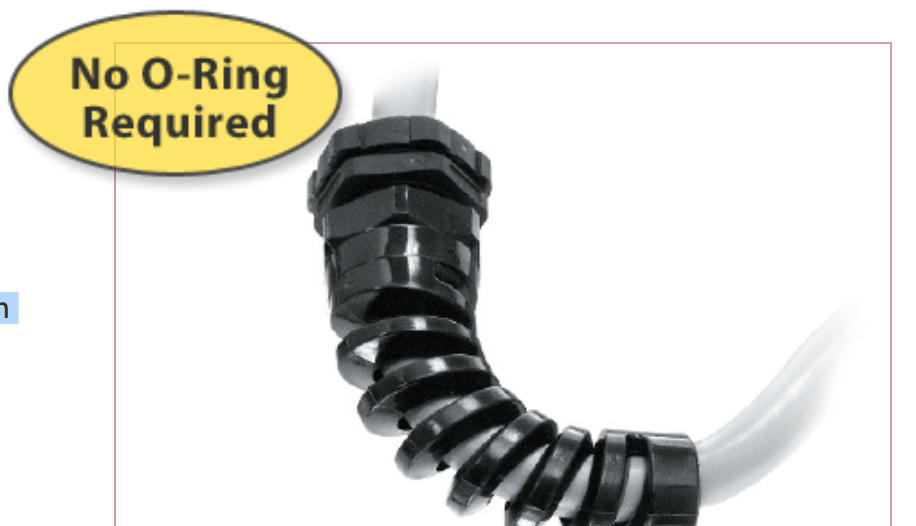

Heyco IP68 Grey Metric Nylon Straight-Thru With Pigtail Cord grip for Cable OD range (0.170 x 0.450) with integral sealing ring. NEMA 4, 4X, 6 and 6P { Flex LTCG M20 }

$1.12

Min: 500  Mult: 500

Product Attributes

Cable Dia Range (In)

(0.170 x 0.450)

Cable Dia Range (mm)

(4.3 x 11.4)

NEMA Ratings

NEMA 4. 4X. 6 and 6P

Min Cable Dia. (mm)

4.3

Max Cable Dia. (mm)

11.4

Max Cable Dia. (In)

0.450

IP Rating

IP 68 (70 PSI. 5 BAR)

Min Cable Dia. (In)

0.170

Hardware

Nut NOT Included

Orientation

Straight-Thru With Pigtail

Temperature Range

-20C to + 100C

Nut Flat Width (mm)

24.9

Nut Flat Width (In)

0.98

Max Length (mm)

98.8

Max Length (in)

3.89

Hole Dia. (mm)

20.0

Hole Dia. (In)

0.787

Color

Grey

Thread Length (mm)

10.4

Thread Length (In)

0.41

Nut Thickness (mm)

5.3

Nut Thickness (In)

0.21

Material

Nylon 6/6 w/Buna N or TPE Sealing Gland

Flammability Rating

94V-2

Thread Type

Metric
