M4336

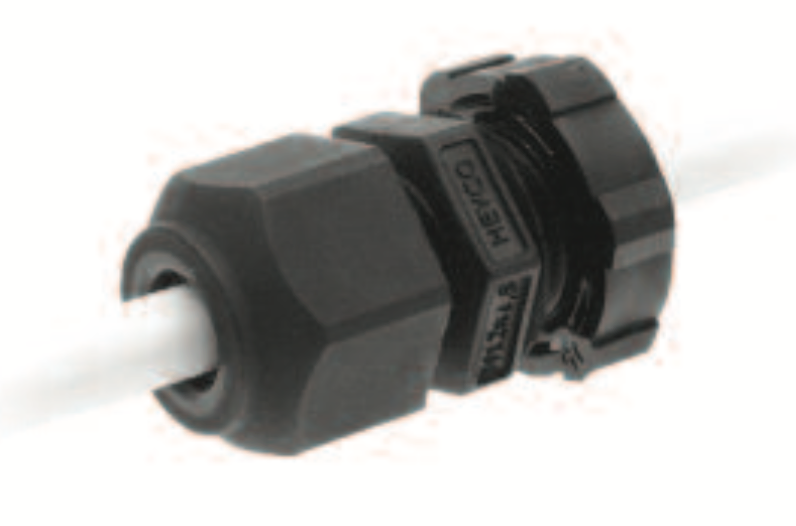

Heyco | ST-M-CG-Nylon | Nylon Cord Grip
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
ST-M-CG-Nylon
Heyco IP68 Black Metric Nylon Straight-Thru Cord grip for Cable OD range (0.105 x 0.315) with integral sealing ring. NEMA 4, 4X, 6 and 6P { LTCG M16 }

$0.752

Min: 500  Mult: 2000

Product Attributes

Cable Dia Range (In)

(0.105 x 0.315)

Cable Dia Range (mm)

(2.7 x 8.0)

NEMA Ratings

NEMA 4. 4X. 6 and 6P

Min Cable Dia. (mm)

2.7

Max Cable Dia. (mm)

8.0

Max Cable Dia. (In)

0.315

IP Rating

IP 68 (70 PSI. 5 BAR)

Min Cable Dia. (In)

0.105

Hardware

Nylon Nut Included

Orientation

Straight-Thru

Temperature Range

-20C to + 100C

Nut Flat Width (mm)

20.8

Nut Flat Width (In)

0.82

Max Length (mm)

31.8

Max Length (in)

1.25

Hole Dia. (mm)

16.0

Hole Dia. (In)

0.630

Color

Black

Thread Length (mm)

8.1

Thread Length (In)

0.32

Nut Thickness (mm)

5.3

Nut Thickness (In)

0.21

Material

Nylon 6/6 w/Buna N or TPE Sealing Gland

Flammability Rating

94V-2

Thread Type

Metric
