M3198GBH

Heyco | ST-SPLT-CG-Nylon | Nylon Cord Grip
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
ST-SPLT-CG-Nylon

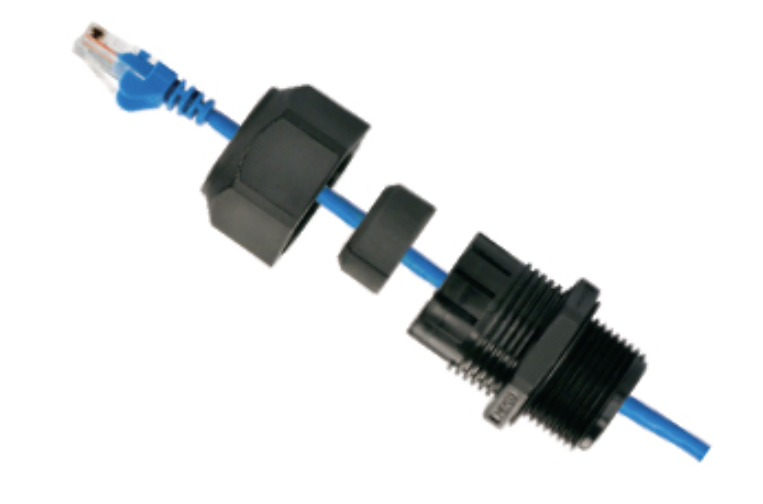

Heyco IP68 Black Split Ring Nylon Straight-Thru Cord grip for Cable OD range (0.210 x 0.334) with integral sealing ring. NEMA 4, 4X, 6 and 6P { LTCG LL M20 8.5MM Split }

$1.42

Min: 500  Mult: 500

Product Attributes

Cable Dia Range (In)

(0.210 x 0.334)

Cable Dia Range (mm)

(5.3 x 8.5)

NEMA Ratings

NEMA 4. 4X. 6 and 6P

Temperature Range

-20C to + 100C

Orientation

Straight-Thru

Min Cable Dia. (mm)

5.3

Min Cable Dia. (In)

0.210

Max Cable Dia. (mm)

8.5

Max Cable Dia. (In)

0.334

IP Rating

IP 68 (70 PSI. 5 BAR)

Nut Flat Width (mm)

26.9

Nut Flat Width (In)

1.06

Hole Dia. (In)

0.787

Hole Dia. (mm)

20.0

Max Length (mm)

41.9

Max Length (in)

1.65

Color

Black

Thread Length (mm)

10.4

Thread Length (In)

0.41

Nut Thickness (In)

0.25

Nut Thickness (mm)

6.4

Material

Nylon 6/6 w/TPE Sealing Gland

Flammability Rating

94V-2

Thread Type

Metric
