14510

Factory Lead Time: TBD

RoHs Compliant

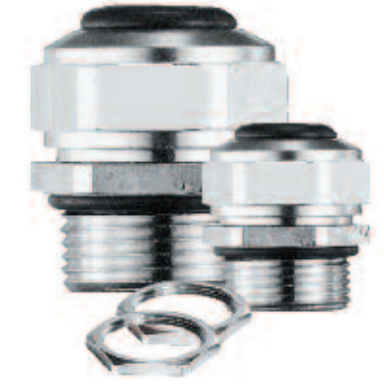

Heyco Straight-Thru Brass Liquid Tight Cordgrip for cable sizes (0.138 - 0.177) with mounting hole 0.630 and M16 x 1,5 Thread size.

Cable Size Range

(0.138 - 0.177)

Min Cable Dia.

0.138

Max Cable Dia.

0.177

Hole Dia.

0.630

Thread Size

M16 x 1,5

Wrenching Nut Flat Size

0.71

Max Length

0.98

Thread Length

0.20

Style

Short Thread

Sealing Rating

IP68

Sealing Gland Material

Thermoplastic Polymer Elastomer (TPE)

Hardware

Locknuts not included

Material

Nickel plated brass

Not available at this time.

Price Table
