Heyco | SB1-2.5 | Snap-in Bushing
green-check-icon Total Stock: 4157
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
SB1-2.5

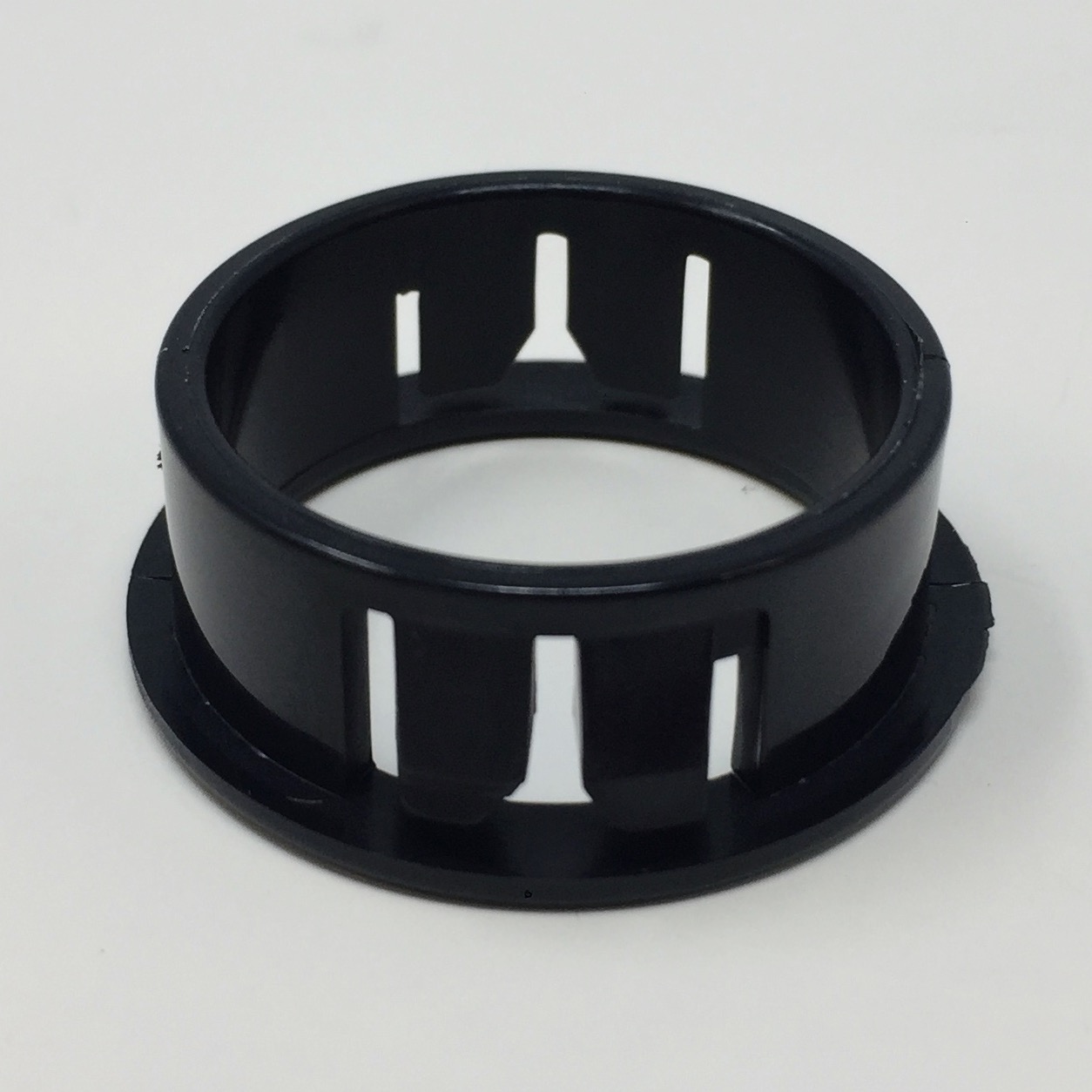

Heyco Black Snap-in Bushing for mounting hole size 1.093-1.125 with a max panel thinkness of 0.125 and inner diameter of 0.94 inches. { SB 1093-15 }

$0.0748

Min: 1000  Mult: 4000

Product Attributes

Alternate PN

SB 1093-15

Color

Black

Mounting Hole Dia. (in)

1.093-1.125

Max Panel Thickness (in)

0.125

Material

Nylon 6/6

ID (in)

0.94

Height (in)

0.45

Head Dia (in)

1.22

Max Panel Thickness (mm)

3.2

Mounting Hole Dia. (mm)

27.8-28.6

Height (mm)

11.5

ID (mm)

23.8

Head Dia (mm)

30.9

Flammability Rating

94V-2

Temperature Range

-18C to +105C

CSA

Certified - File 8919

UL

Recognized - File E15331

Not available at this time.
