G1112

Total Stock: 1000

Factory Lead Time: TBD

RoHs Compliant

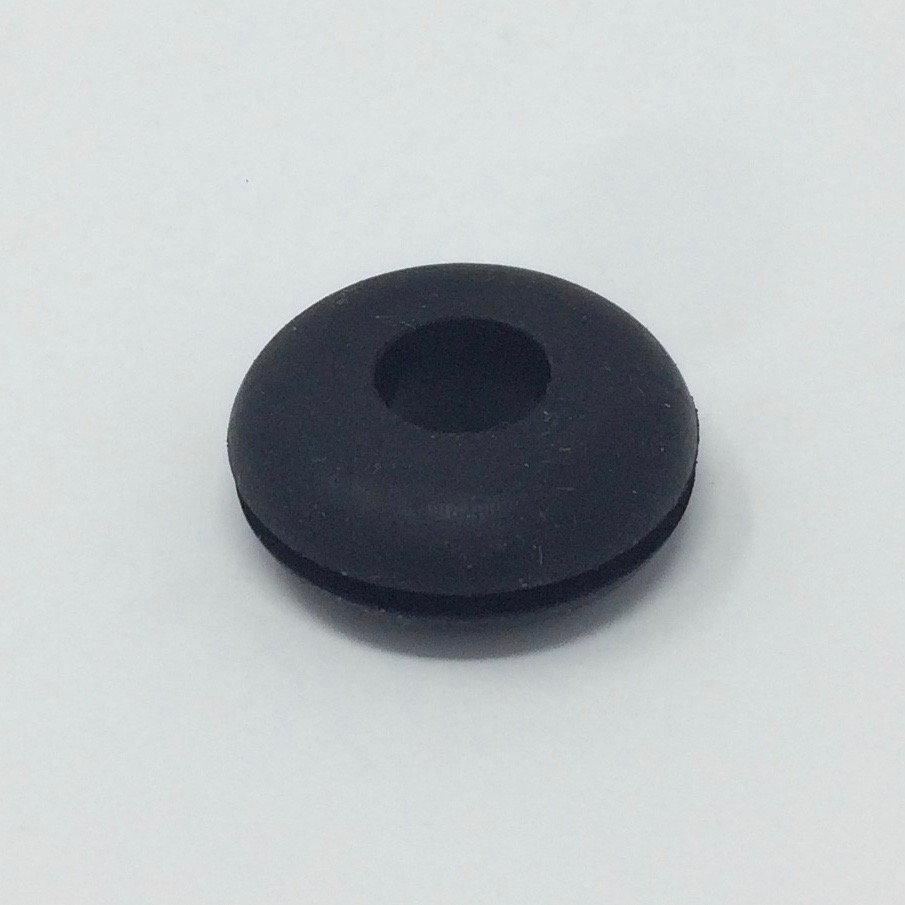

RG 562-10-2 Heyco Rubber Grommets for Mounting hole size 0.562 and for Panels up to 0.063 Inch thick and Inner hole diameter of 8,0. Material?SBR

Mounting Hole Diameter Inch

0.562

Mounting Hole Diameter mm

14,3

Material

SBR

Panel Thickness Max (Inch)

0.063

Overall Height (Inch)

0.31

Head Diameter (Inch)

0.81

Inside Diameter (Inch)

0.31

Inside Diameter (mm)

8,0

Overall Height (mm)

8,0

Head Diameter (mm)

20,7

Panel Thickness Max (mm)

1,6"

Pricing Note

Hawk will break Mfg Min, Call for Quote

Temperature Range

-40C to +105C

Price Table
