CRX0170BE

Hammond Power Solutions | sCR-Cu | REGULATOR
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

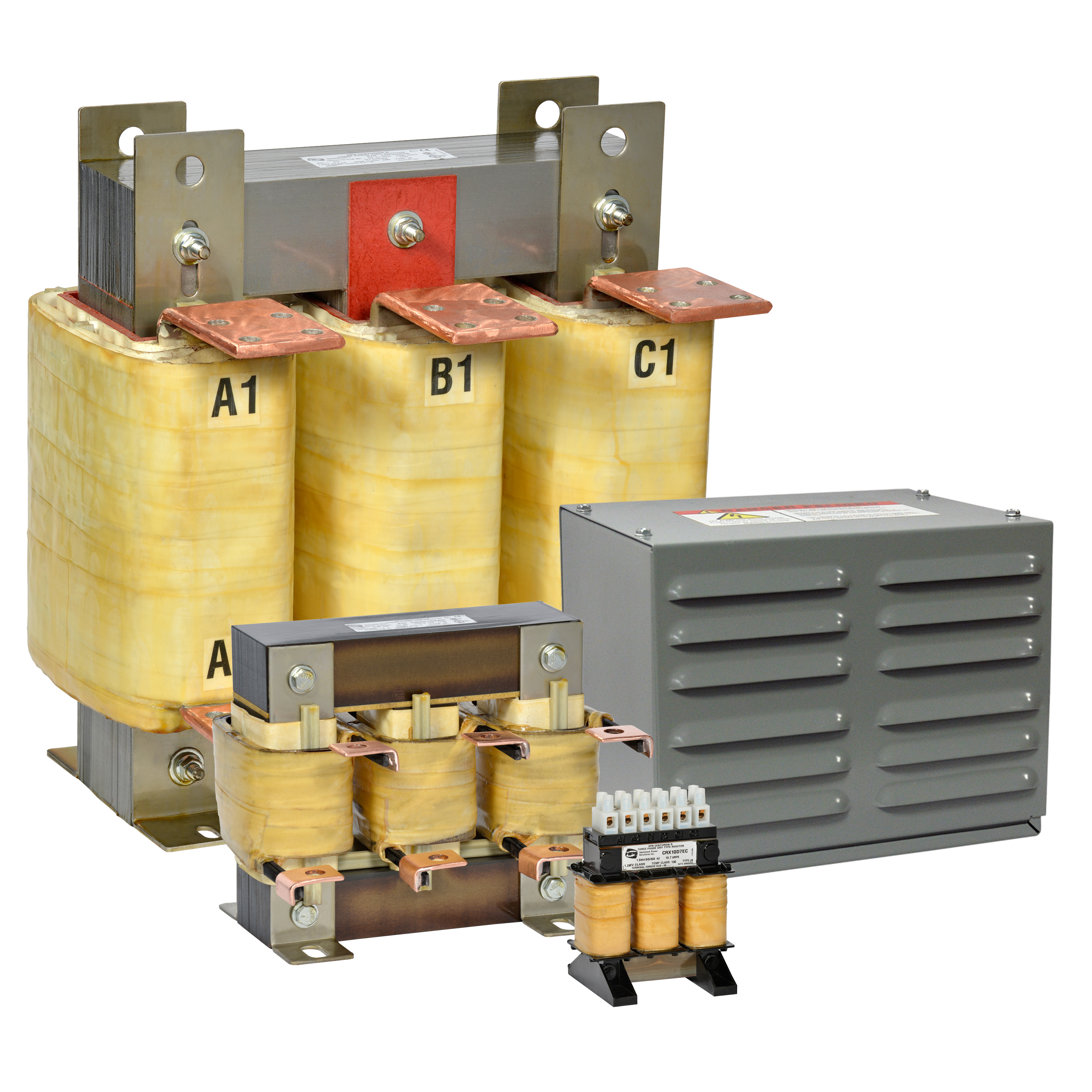

HPS Centurion Enclosed 208 Volts 170 Amps @ 60 Hz Line Reactor Rated at 60 HP and 3% Impedance. Overall Dims (14 x 14 x 12.13) @ 33 Lbs.

$833.00

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

Style

Enclosed

RMS Amp

170

HP Rating

60

Amps

170

Inductance (mH)

0.06

Overall Dims (LxHxW)

14 x 14 x 12.13

Mtg Width

10

Watts Loss

100

Mtg Depth

10.5

Mtg Slot WxD

0.188

Enclosure Style

N2

UPC

803423120689

UNSPSC

39121015

Frequency

60 Hz

Cooling Method

Natural convection

Warranty

10 year limited warranty

Dielectric Strength

4000 volts for 1 minute or equivalent

UL

UL 508

CSA

CSA Certified file No. LR3902
