PH750MEMX

Hammond Power Solutions | sImp-Cu | Industrial Controls
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

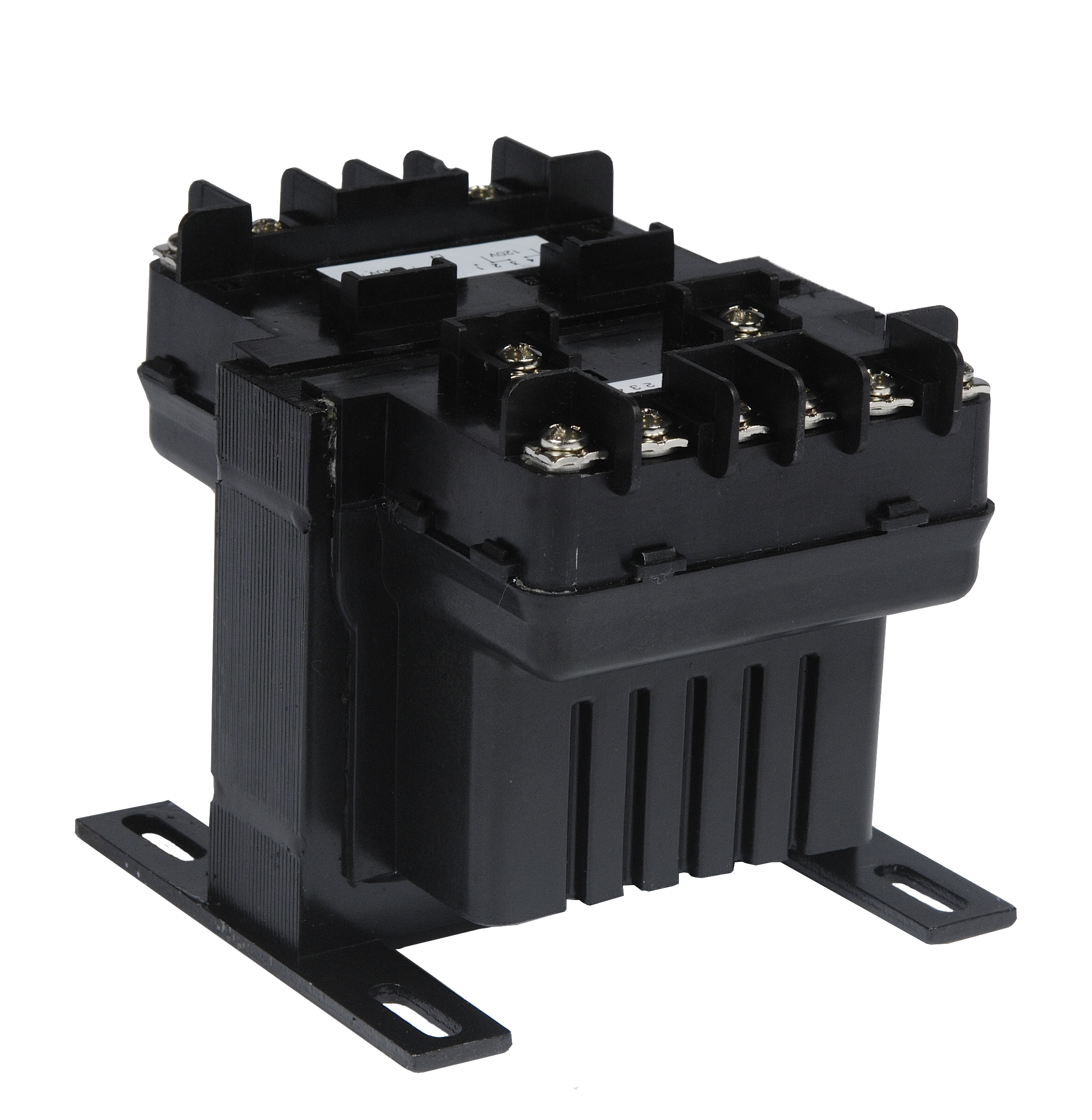

HPS 750 VA Industrial Control Transformer with 415/400/380 Primary and 110 x 220 Secondary and 6.82/3.41 Amps output at 50/60 HzHz. HPS Part Number: PH750MEMX with Overall Dims of (5.25 x 6.5 x 4.94) and an approx weight of 21 Lbs. Optional Fuse Kit Part Number:PFK7

$282.10

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

VA Rating

750

Secondary Voltage

110 x 220

Primary Voltage

415/400/380

Frequency

50/60 Hz

Output Amps

6.82/3.41

Warranty

Lifetime (Limited)

Overall Dims

5.25 x 6.5 x 4.94

Termination

combination slot/Phillips #6 screw complete with SEMS washer (suitable for 18 AWG to 14 AWG solid or 14 AWG stranded wire)

Construction

high quality silicon steel laminations

UPC

803423078492

UNSPSC

39121026

UL

Listed

Width

5.25

Height

4.94

Length

6.5

Mounting Centers Length

4.13

Mounting Centers Width

4.5

Optional Fuse Kit

PFK7

Mounting Slot Dims

0.31 x 0.81

Replaced Catalog Number

PT750MEMX

Finger guard

Optional finger safe terminal covers available

Not available at this time.
